Is the DKOS 90° Hydraulic Elbow ZMW222, Heavy-Duty Carbon Steel, Zn-Ni Coated compatible with standard crimp sleeves for metric hoses?

Yes. The DKOS 90° Hydraulic Elbow ZMW222, Heavy-Duty Carbon Steel, Zn-Ni Coated is designed for crimping with the appropriate sleeve dedicated to the hose type. It has a standard hydraulic tail for hose connection and is intended to be crimped using the correct crimp sleeve matching the metric hose specification. In other words, it is compatible with standard crimp sleeves provided the sleeve is the correct type and size for the metric hose you are using.

Does the DKOS 90° Hydraulic Elbow ZMW222, Heavy-Duty Carbon Steel, Zn-Ni Coated require a specific crimp sleeve size or profile for different hose types?

DKOS 90° Hydraulic Elbow ZMW222, Heavy-Duty Carbon Steel, Zn-Ni Coated does require a specific crimp sleeve size/profile matched to the hose type. The fitting is designed for crimping with an appropriate sleeve dedicated to the hose construction and diameter to ensure a secure, long-lasting connection. Using the correct sleeve profile and size guarantees proper compression of the hose cover and reinforcement, reliable sealing on the hydraulic tail, and maintenance of the O-ring seating on the 24° cone (DKOS). Always follow the hose and sleeve manufacturer’s crimping specifications (sleeve length, diameter, and profile) and use calibrated crimping equipment to achieve the recommended crimp dimensions and pressure for the selected hose assembly.

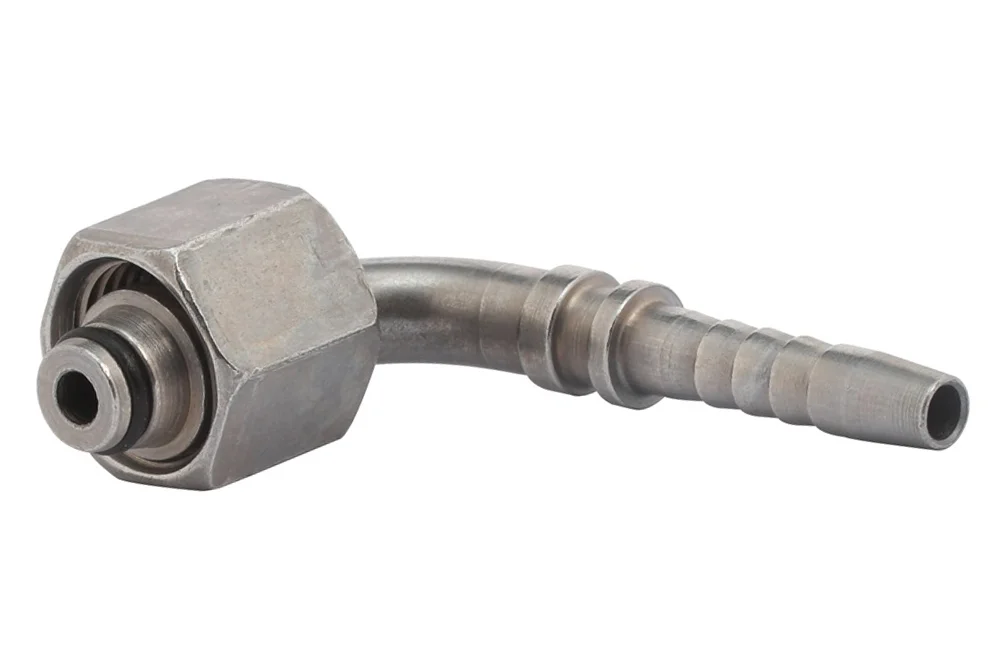

DKOS 90° Hydraulic Elbow ZMW222, Heavy-Duty Carbon Steel, Zn-Ni Coated

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

This heavy-duty 90° hydraulic fitting, type Z with a standard hydraulic tail for hose connection, is engineered for demanding industrial and hydraulic applications requiring maximum reliability and durability. Equipped with an internal metric thread and nut, it ensures secure assembly and precise sealing through an O-ring on a 24° cone (DKOS), delivering leak-free performance even under high pressure. Designed for crimping with the appropriate sleeve dedicated to the hose type, it guarantees a stable and long-lasting connection. Manufactured from robust carbon steel and finished with an advanced zinc-nickel coating of 6–10 µm, the fitting offers exceptional resistance to corrosion, proven to withstand up to 720 hours in a salt spray chamber without visible damage. This makes it an ideal solution for environments exposed to moisture, aggressive substances, or extreme working conditions. Combining strength, precision, and superior surface protection, it provides a reliable component that extends the service life of hydraulic systems while reducing maintenance costs and downtime.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW222-16-03-CN	End. 90° G1/2 M16x1.5, hose 3/16", 24°, o-ring, heavy, Zn-Ni	5	-	In stock	Enquiry
TI-ZMW222-16-04-CN	End. 90° G1/2 M16x1.5, hose 1/4", 24°, o-ring, heavy, Zn-Ni	6	-	In stock	Enquiry
TI-ZMW222-18-04-CN	End fitting 90° G1/2 M18x1.5, hose 1/4", 24°, o-ring, heavy, Zn-Ni	6	-	In stock	Enquiry
TI-ZMW222-20-05-CN	End fitting 90° G1/2 M20x1.5, hose 5/16", 24°, o-ring, heavy, Zn-Ni	8	-	In stock	Enquiry
TI-ZMW222-20-06-CN	End fitting 90° G1/2 M20x1.5, hose 3/8", 24°, o-ring, heavy, Zn-Ni	10	-	In stock	Enquiry
TI-ZMW222-22-06-CN	End. 90° G1/2 M22x1.5, hose 3/8", 24°, o-ring, heavy, Zn-Ni	10	-	In stock	Enquiry
TI-ZMW222-24-08-CN	End. 90° G1 M24x1.5, hose 1/2", 24°, o-ring, heavy, Zn-Ni	12	-	In stock	Enquiry
TI-ZMW222-30-10-CN	End fitting 90° G1/2 M30x2, hose 5/8", 24°, o-ring, heavy, Zn-Ni	16	-	In stock	Enquiry
TI-ZMW222-30-12-CN	End fitting 90° G1/2 M30x2, hose 3/4", 24°, o-ring, heavy, Zn-Ni	20	-	In stock	Enquiry
TI-ZMW222-36-12-CN	End. 90° GW M36x2, hose 3/4", 24°, o-ring, heavy, Zn-Ni	20	-	In stock	Enquiry
TI-ZMW222-36-16-CN	End. 90° G1 M36x2, hose 1", 24°, o-ring, heavy, Zn-Ni	25	-	In stock	Enquiry
TI-ZMW222-42-16-CN	End. 90° G1/2 M42x2, hose 1", 24°, o-ring, heavy, Zn-Ni	25	-	In stock	Enquiry
TI-ZMW222-52-20-CN	End fitting 90° G1/2 M52x2, hose 1.1/4", 24°, o-ring, heavy, Zn-Ni	32	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

This heavy-duty 90° hydraulic fitting, type Z with a standard hydraulic tail for hose connection, is engineered for demanding industrial and hydraulic applications requiring maximum reliability and durability. Equipped with an internal metric thread and nut, it ensures secure assembly and precise sealing through an O-ring on a 24° cone (DKOS), delivering leak-free performance even under high pressure. Designed for crimping with the appropriate sleeve dedicated to the hose type, it guarantees a stable and long-lasting connection. Manufactured from robust carbon steel and finished with an advanced zinc-nickel coating of 6–10 µm, the fitting offers exceptional resistance to corrosion, proven to withstand up to 720 hours in a salt spray chamber without visible damage. This makes it an ideal solution for environments exposed to moisture, aggressive substances, or extreme working conditions. Combining strength, precision, and superior surface protection, it provides a reliable component that extends the service life of hydraulic systems while reducing maintenance costs and downtime.
