Is the DKR 45° Hydraulic End ZBW310, AISI 316L Stainless Steel compatible with standard BSP hoses and sleeves for crimping?

Yes — the DKR 45° Hydraulic End ZBW310, AISI 316L Stainless Steel is compatible with standard BSP hoses and sleeves for crimping. It features an internal BSP thread with nut and a 60° DKR sealing cone and a classic hydraulic tail designed for secure hose connection. The fitting is specifically engineered to be crimped using the appropriate sleeve matched to the hose type, ensuring a reliable, leak-free joint even in high-pressure systems. Its precise geometry and robust AISI 316L construction support standard BSP hose assemblies and professional crimping processes used in hydraulic installations.

Can the DKR 45° Hydraulic End ZBW310, AISI 316L Stainless Steel withstand seawater corrosion in marine hydraulic systems?

Yes. The DKR 45° Hydraulic End ZBW310, AISI 316L Stainless Steel is suitable for seawater-exposed marine hydraulic systems. Made from AISI 316L stainless steel, it offers superior resistance to chloride-induced corrosion compared with common stainless grades, making it well-suited for marine, chemical and other corrosive environments. Its robust construction, precise geometry and crimp-ready design ensure reliable, leak-free performance under high pressure and mechanical stress typical of marine hydraulics. For maximum longevity in seawater service, ensure proper installation with the correct sleeve and hose type, avoid galvanic coupling with dissimilar metals without insulation, and follow regular inspection and maintenance schedules.

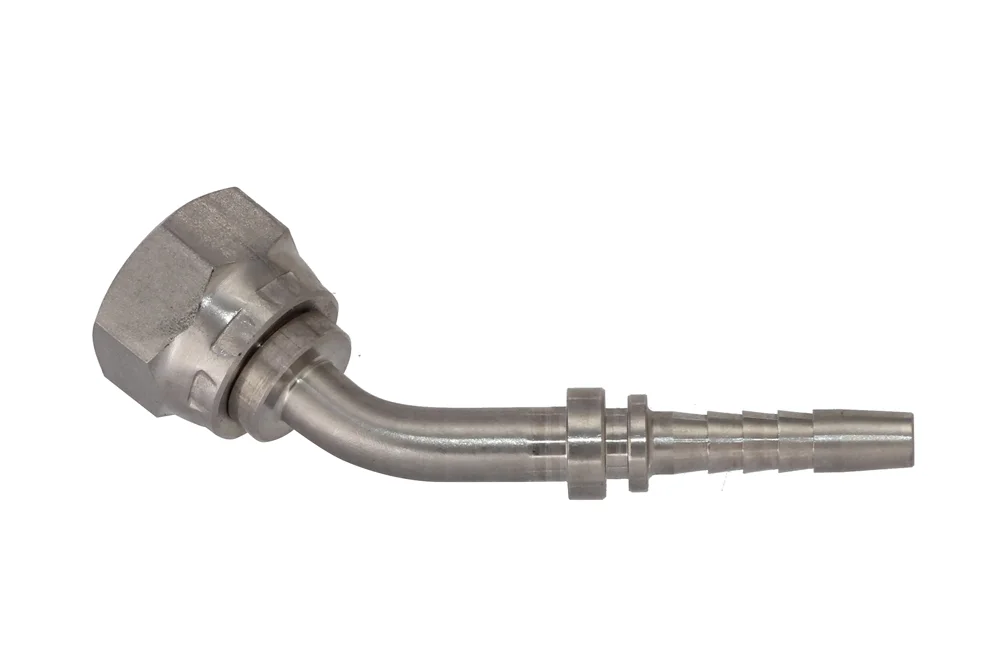

DKR 45° Hydraulic End ZBW310, AISI 316L Stainless Steel

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

This standard hydraulic end fitting, type Z, is equipped with a classic hydraulic tail designed for secure connection with hoses and features an internal BSP thread with nut and a 60° sealing cone (DKR), angled at 45° for optimal installation flexibility. Manufactured from premium AISI 316L stainless steel, it ensures exceptional resistance to corrosion, durability under demanding conditions, and long-lasting performance in both hydraulic and industrial applications. Engineered for crimping with the appropriate sleeve matched to the hose type, it guarantees a reliable, leak-free connection even in high-pressure systems. Its precise geometry and robust construction make it an excellent choice for industries requiring uncompromising safety, efficiency, and reliability, including marine, chemical, and heavy-duty machinery sectors. By combining proven functionality with superior material quality, this fitting provides a professional solution that enhances system performance and extends service life.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW310-04-03-SS	End. 45° GW 1/4" BSP, hose 3/16", cone 60°, AISI 316L	5	450	In stock	Enquiry
TI-ZBW310-04-04-SS	End fitting 45° GW 1/4" BSP, hose 1/4", cone 60°, AISI 316L	6	450	In stock	Enquiry
TI-ZBW310-06-04-SS	End fitting 45° GW 3/8" BSP, hose 1/4", cone 60°, AISI 316L	6	445	In stock	Enquiry
TI-ZBW310-06-05-SS	End. 45° GW 3/8" BSP, hose 5/16", cone 60°, AISI 316L	8	445	In stock	Enquiry
TI-ZBW310-06-06-SS	End fitting 45° GW 3/8" BSP, hose 3/8", cone 60°, AISI 316L	10	445	In stock	Enquiry
TI-ZBW310-08-06-SS	End. 45° GW 1/2" BSP, hose 3/8", cone 60°, AISI 316L	10	415	In stock	Enquiry
TI-ZBW310-08-08-SS	End fitting 45° GW 1/2" BSP, hose 1/2", cone 60°, AISI 316L	12	415	In stock	Enquiry
TI-ZBW310-10-10-SS	End fitting 45° GW 5/8" BSP, hose 5/8", cone 60°, AISI 316L	16	350	In stock	Enquiry
TI-ZBW310-12-10-SS	End. 45° GW 3/4" BSP, hose 5/8", cone 60°, AISI 316L	16	350	In stock	Enquiry
TI-ZBW310-12-12-SS	End fitting 45° GW 3/4" BSP, hose 3/4", cone 60°, AISI 316L	20	350	In stock	Enquiry
TI-ZBW310-16-12-SS	End. 45° GW 1" BSP, hose 3/4", cone 60°, AISI 316L	20	280	In stock	Enquiry
TI-ZBW310-16-16-SS	End fitting 45° GW 1" BSP, hose 1", cone 60°, AISI 316L	25	280	In stock	Enquiry
TI-ZBW310-20-20-SS	End fitting 45° GW 1.1/4" BSP, hose 1.1/4", cone 60°, AISI 316L	32	210	In stock	Enquiry
TI-ZBW310-24-24-SS	End fitting 45° GW 1.1/2" BSP, hose 1.1/2", cone 60°, AISI 316L	38	185	In stock	Enquiry
TI-ZBW310-32-32-SS	End fitting 45° GW 2" BSP, hose 2", cone 60°, AISI 316L	50	175	In stock	Enquiry
