Is the DKR 90° Hydraulic End ZBW210, Carbon Steel compatible with standard crimping sleeves for hydraulic and industrial hoses?

Yes. The DKR 90° Hydraulic End ZBW210, Carbon Steel Format is designed for secure crimped connections and is compatible with standard crimping sleeves for hydraulic and industrial hoses, provided you use the correct sleeve matched to the hose type and size. It features a classic hydraulic tail, internal BSP thread and nut, and a precise 60° DKR sealing cone—geometry intended specifically for crimping systems. Made from carbon steel with durable galvanization, it delivers the mechanical strength and corrosion resistance required for reliable, leak‑free crimped assemblies in professional hydraulic applications. Ensure you select the crimping sleeve specified by the hose manufacturer and follow correct crimping tooling and procedures for a safe, long‑lasting connection.

Can the DKR 90° Hydraulic End ZBW210, Carbon Steel be used with PTFE-lined or chemical-resistant hose types, and are special sleeves required?

DKR 90° Hydraulic End ZBW210, Carbon Steel can be used with PTFE‑lined or chemically resistant hoses, but with conditions. The fitting itself is a robust carbon‑steel 60° cone 90° hydraulic end designed for crimped connections; it does not include an integral PTFE barrier. Therefore: - Compatibility: Yes, it can be used with PTFE‑lined or chemically resistant hose types provided you select a crimping sleeve and assembly method specifically matched to the hose construction and liner. The metal fitting will provide mechanical retention and sealing at the hose end when properly assembled. - Special sleeves: Yes — special sleeves (crimping ferrules) sized and shaped for the particular PTFE‑lined or chemical‑resistant hose are required. PTFE‑lined hoses often need sleeves that account for the soft/low‑friction liner, provide adequate bite without cutting the liner, and may include inner sleeves or adapters to prevent liner extrusion and ensure a reliable fluid seal. Chemically resistant elastomer hoses may require different sleeve profiles or materials. - Additional considerations: Use recommended insert/adaptor options if the liner cannot be reliably crimped; follow hose and sleeve manufacturer instructions for crimp diameter, crimping force, and inspection. Verify chemical compatibility at the metal‑fluid interface and consider corrosion protection or alternative materials if exposure is aggressive. In summary: DKR 90° Hydraulic End ZBW210, Carbon Steel is suitable when paired with the correct, hose‑specific crimp sleeve (and any required inserts/adaptors); do not attempt without the proper sleeve and assembly procedure.

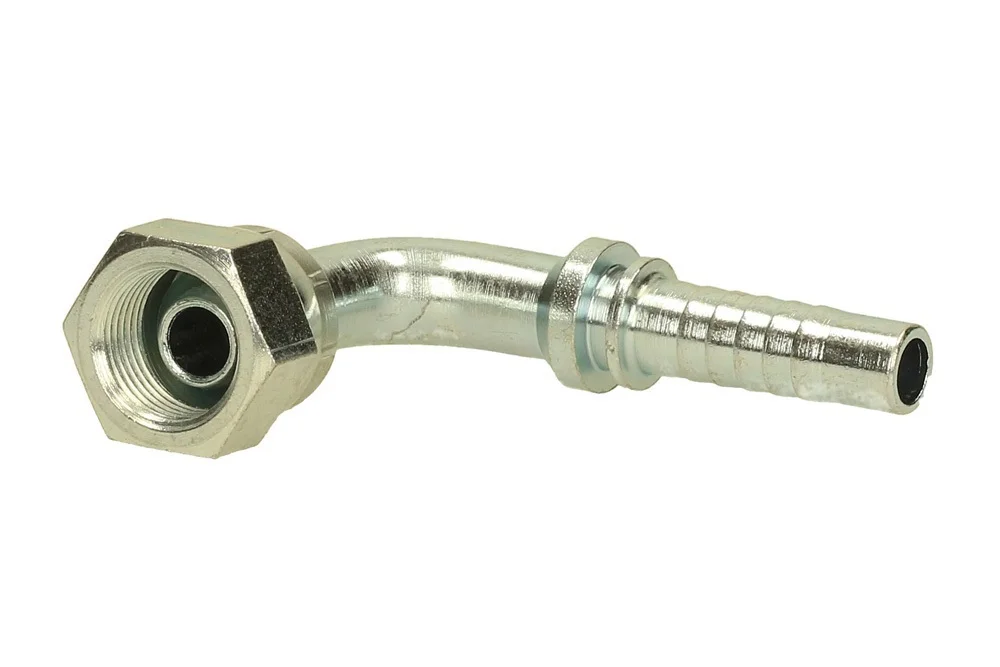

A fitting hydraulic DKR 90°, type ZBW210, steel carbon

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

A fitting hydraulic standard (type Z – of standard “tail” hydraulic for hose), with a female BSP thread with a nut, cone sealing 60° (DKR), angled 90°. Intended for crimping in hoses hydraulic and industrial using ferrule crimping, appropriate for type hose. Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW210-02-03	Fitting 90° 1/8" BSP female hose 3/16", 60° cone	5	-	In stock	Enquiry
TI-ZBW210-02-04	Fitting 90° 1/8" BSP female, hose 1/4", 60° cone	6	-	In stock	Enquiry
TI-ZBW210-04-03	Fitting 90° 1/4" BSP female, hose 3/16", 60° cone	5	-	In stock	Enquiry
TI-ZBW210-04-04	Fitting 90° 1/4" BSP female, hose 1/4", 60° cone	6	-	In stock	Enquiry
TI-ZBW210-04-05	Fitting 90° 1/4" BSP female hose 5/16", 60° cone	8	-	In stock	Enquiry
TI-ZBW210-04-06	Fitting 90° 1/4" BSP female hose 3/8", 60° cone	10	-	In stock	Enquiry
TI-ZBW210-06-04	Fitting 90° 3/8" BSP female, hose 1/4", 60° cone	6	-	In stock	Enquiry
TI-ZBW210-06-05	Fitting 90° 3/8" BSP female, hose 5/16", 60° cone	8	-	In stock	Enquiry
TI-ZBW210-06-06	Fitting 90° 3/8" BSP female, hose 3/8", 60° cone	10	-	In stock	Enquiry
TI-ZBW210-06-08	Fitting 90° 3/8" BSP female,hose 1/2", 60° cone	12	-	In stock	Enquiry
TI-ZBW210-08-05	Fitting 90° 1/2" BSP female,hose 5/16", 60° cone	8	-	In stock	Enquiry
TI-ZBW210-08-06	Fitting 90° 1/2" BSP female, hose 3/8", 60° cone	10	-	In stock	Enquiry
TI-ZBW210-08-08	Fitting 90° 1/2" BSP female, hose 1/2", 60° cone	12	-	In stock	Enquiry
TI-ZBW210-08-10	Fitting 90° 1/2" BSP female hose 5/8", 60° cone	16	-	In stock	Enquiry
TI-ZBW210-10-08	Fitting 90° 5/8" BSP female, hose 1/2", 60° cone	12	-	In stock	Enquiry
TI-ZBW210-10-10	Fitting 90° 5/8" BSP female, hose 5/8", 60° cone	16	-	In stock	Enquiry
TI-ZBW210-10-12	Fitting 90° 5/8" BSP female, hose 3/4", 60° cone	20	-	In stock	Enquiry
TI-ZBW210-12-08	Fitting 90° 3/4" BSP female, hose 1/2", 60° cone	12	-	In stock	Enquiry
TI-ZBW210-12-10	Fitting 90° 3/4" BSP female, hose 5/8", 60° cone	16	-	In stock	Enquiry
TI-ZBW210-12-12	Fitting 90° 3/4" BSP female, hose 3/4", 60° cone	20	-	In stock	Enquiry
TI-ZBW210-16-12	Fitting 90° 1" BSP female, hose 3/4", 60° cone	20	-	In stock	Enquiry
TI-ZBW210-16-16	Fitting 90° 1" BSP female, hose 1", 60° cone	25	-	In stock	Enquiry
TI-ZBW210-20-16	Fitting 90° 1.1/4" BSP female hose 1", 60° cone	25	-	In stock	Enquiry
TI-ZBW210-20-20	Fitting 90° 1.1/4" BSP female, hose 1.1/4", 60° cone	32	-	In stock	Enquiry
TI-ZBW210-24-20	Fitting 90° 1.1/2" BSP female, hose 1.1/4", 60° cone	32	-	In stock	Enquiry
TI-ZBW210-24-24	Fitting 90° 1.1/2" BSP female, hose 1.1/2", 60° cone	38	-	In stock	Enquiry
TI-ZBW210-32-24	Fitting 90° 2" BSP female, hose 1.1/2", 60° cone	38	-	In stock	Enquiry
TI-ZBW210-32-32	Fitting 90° 2" BSP female, hose 2", 60° cone	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting hydraulic standard (type Z – of standard “tail” hydraulic for hose), with a female BSP thread with a nut, cone sealing 60° (DKR), angled 90°. Intended for crimping in hoses hydraulic and industrial using ferrule crimping, appropriate for type hose. Material: steel carbon, galvanized.
