Is the GW BSP Twisted Hydraulic End, AISI 316L Stainless Steel, DKR S-Type compatible with standard BSP internal-threaded hoses and screwed sleeves for leak-free installation?

Yes. The GW BSP Twisted Hydraulic End, AISI 316L Stainless Steel, DKR S-Type is compatible with standard BSP internal-threaded hoses and screwed sleeves. Its internal BSP thread and nut, combined with a precise 60° DKR sealing cone, are specifically designed for direct screwing into rubber and thermoplastic hoses using a screwed sleeve, ensuring a tight, leak‑free connection. Made from AISI 316L stainless steel, it provides corrosion and wear resistance for durable, high‑pressure performance and reliable installation across marine, chemical, food, and industrial applications.

Can the GW BSP Twisted Hydraulic End, AISI 316L Stainless Steel, DKR S-Type withstand continuous exposure to seawater and corrosive chemicals without compromising sealing performance?

Can the GW BSP Twisted Hydraulic End, AISI 316L Stainless Steel, DKR S-Type withstand continuous exposure to seawater and corrosive chemicals without compromising sealing performance? Yes. The GW BSP Twisted Hydraulic End, AISI 316L Stainless Steel, DKR S-Type is manufactured from premium AISI 316L stainless steel, which offers excellent resistance to seawater corrosion (including pitting and crevice corrosion) and many aggressive chemicals. Its DKR 60° sealing cone design and precise internal BSP threading, combined with the screwed sleeve installation into rubber or thermoplastic hoses, provide a reliable, leak-free seal under continuous exposure and high pressure. This construction is explicitly suited for marine and chemical industry applications where durability and sealing integrity are critical. Limitations: While AISI 316L provides superior corrosion resistance, extremely aggressive media (strong chlorides at high temperature, concentrated acids, or certain oxidizing chemicals) and highly abrasive environments can still affect long-term performance. For such conditions, compatibility checks with the specific chemical, temperature, pressure, and flow conditions are recommended, and periodic inspection/maintenance should be planned to ensure long-term sealing performance.

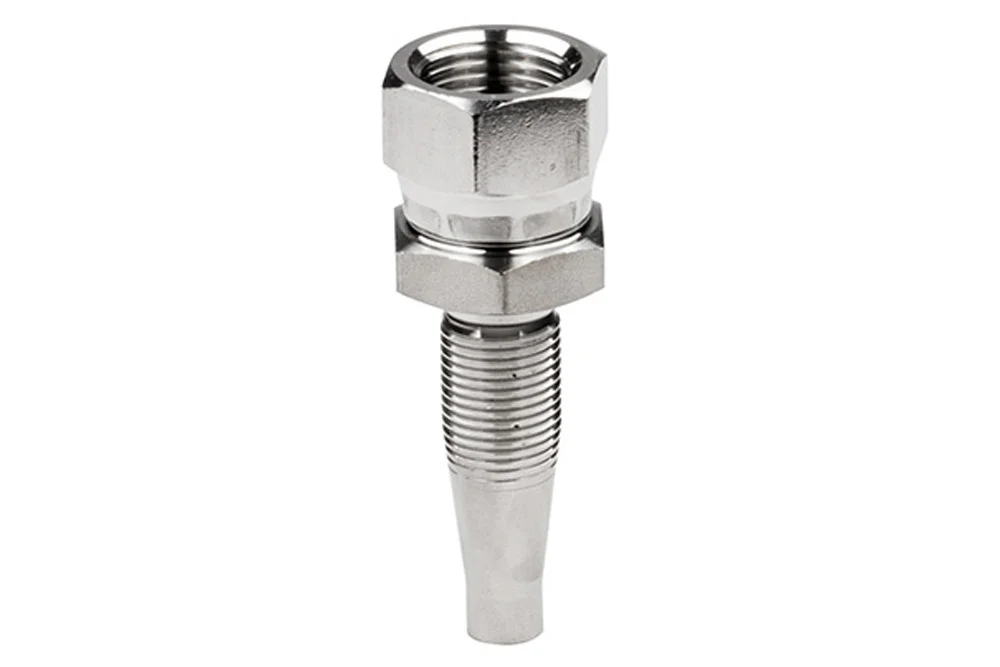

GW BSP Twisted Hydraulic End, AISI 316L Stainless Steel, DKR S-Type

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	2

The screwed hydraulic end type S with internal BSP thread and nut, featuring a precise 60° sealing cone (DKR), is engineered to deliver secure and reliable connections in demanding hydraulic systems. Manufactured from premium AISI 316 stainless steel, it ensures outstanding resistance to corrosion, wear, and aggressive working environments, making it ideal for industries where durability and safety are paramount. Designed for direct screwing into rubber and thermoplastic hoses with the use of a screwed sleeve, this fitting guarantees a tight, leak-free seal and long-lasting performance even under high pressure. Its robust construction and precise threading provide easy installation, reduced downtime, and consistent efficiency in operation. Perfect for applications in marine, chemical, food, and industrial sectors, this hydraulic end combines strength, versatility, and reliability, offering a professional solution for modern hydraulic assemblies.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]	Enquiry	Catalogue
TI-SBW110-08-08-SS	End screw connection GW BSP 1/2" for hose 1/2", AISI 316L	12	-
TI-SBW110-12-12-SS	End, screwed G-thread BSP 3/4" for hose 3/4", AISI 316L	20	-

The screwed hydraulic end type S with internal BSP thread and nut, featuring a precise 60° sealing cone (DKR), is engineered to deliver secure and reliable connections in demanding hydraulic systems. Manufactured from premium AISI 316 stainless steel, it ensures outstanding resistance to corrosion, wear, and aggressive working environments, making it ideal for industries where durability and safety are paramount. Designed for direct screwing into rubber and thermoplastic hoses with the use of a screwed sleeve, this fitting guarantees a tight, leak-free seal and long-lasting performance even under high pressure. Its robust construction and precise threading provide easy installation, reduced downtime, and consistent efficiency in operation. Perfect for applications in marine, chemical, food, and industrial sectors, this hydraulic end combines strength, versatility, and reliability, offering a professional solution for modern hydraulic assemblies.
