Is the DKS 90° Hydraulic Fitting ZMW212, Heavy Duty Carbon Steel compatible with standard crimping sleeves and hoses for leak-free connections?

Yes. The DKS 90° Hydraulic Fitting ZMW212, Heavy Duty Carbon Steel is specifically designed for crimping with compatible sleeves and hoses. Its internal metric thread and nut create a secure metal-to-metal seal via the universal 24°/60° cone (DKS), and the classic hydraulic tail accommodates standard hydraulic hoses. Manufactured from high-quality carbon steel with a protective zinc coating and built in a heavy series construction, it provides the durability and precise fit required for reliable, leak-free connections across a wide range of hydraulic and industrial hose assemblies.

Can the DKS 90° Hydraulic Fitting ZMW212, Heavy Duty Carbon Steel be used with stainless-steel braid hoses and specialized crimp sleeves without voiding its 24°/60° cone seal warranty?

Yes — the DKS 90° Hydraulic Fitting ZMW212, Heavy Duty Carbon Steel can be used with stainless-steel braid hoses and appropriate crimp sleeves without voiding its 24°/60° cone seal warranty, provided the following conditions are met: - The hose and stainless-steel braid are compatible with crimp-type fittings and rated for the intended pressure and application. - Crimp sleeves used are the manufacturer-recommended (or otherwise specified compatible) type and dimensions for the ZMW212 fitting. - Crimping is performed using correct tooling, dies, and procedures to achieve the specified crimp dimensions and mechanical integrity. - The universal 24°/60° cone (DKS) metal-to-metal seal is assembled cleanly, with no damage, debris, or distortion to the sealing surfaces. - Installation torque, thread engagement, and assembly practices follow the fitting manufacturer’s instructions and industry standards. - No unauthorized modifications, coatings, or welding are applied to the fitting that could affect the cone seal or coating warranty. If all compatibility and installation requirements are observed, the fitting’s design for crimping and its 24°/60° cone seal remain intact and the warranty should remain valid. For absolute confirmation, consult the fitting manufacturer’s warranty terms or technical support with specifics of the hose, sleeve, and crimping equipment.

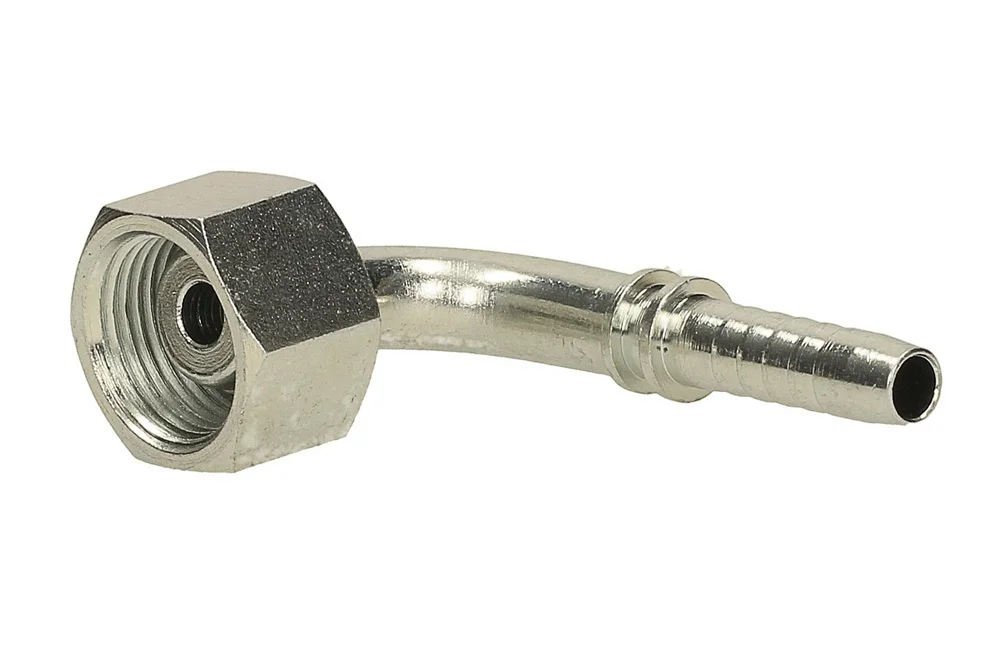

A fitting hydraulic DKS 90°, type ZMW212, series heavy, steel carbon

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

A fitting hydraulic standard (type Z – of standard “tail” hydraulic for hose), with a female metric thread with a nut, sealing metal – metal, cone A universal 24°/60° (DKS), angled 90°, series heavy. Intended for crimping in hoses hydraulic and industrial using ferrule crimping, appropriate for type hose. Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW212-18-04	Fitting 90° M18x1.5 female, hose 1/4", 24/60°, heavy	6	-	In stock	Enquiry
TI-ZMW212-20-05	Fitting 90° M20x1.5 female, hose 5/16", 24/60°, heavy	8	-	In stock	Enquiry
TI-ZMW212-22-06	Fitting 90° M22x1.5 female, hose 3/8", 24/60°, heavy	10	-	In stock	Enquiry
TI-ZMW212-24-08	Fitting 90° M24x1.5 female, hose 1/2", 24/60°, heavy	12	-	In stock	Enquiry
TI-ZMW212-30-10	Fitting 90° M30x2 female, hose 5/8", 24/60°, heavy	16	-	In stock	Enquiry
TI-ZMW212-36-12	Fitting 90° M36x2 female, hose 3/4", 24/60°, heavy	20	-	In stock	Enquiry
TI-ZMW212-42-16	Fitting 90° M42x2 female, hose 1", 24/60°, heavy	25	-	In stock	Enquiry
TI-ZMW212-52-20	Fitting 90° M52x2 female, hose 1.1/4", 24/60°, heavy	32	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting hydraulic standard (type Z – of standard “tail” hydraulic for hose), with a female metric thread with a nut, sealing metal – metal, cone A universal 24°/60° (DKS), angled 90°, series heavy. Intended for crimping in hoses hydraulic and industrial using ferrule crimping, appropriate for type hose. Material: steel carbon, galvanized.
