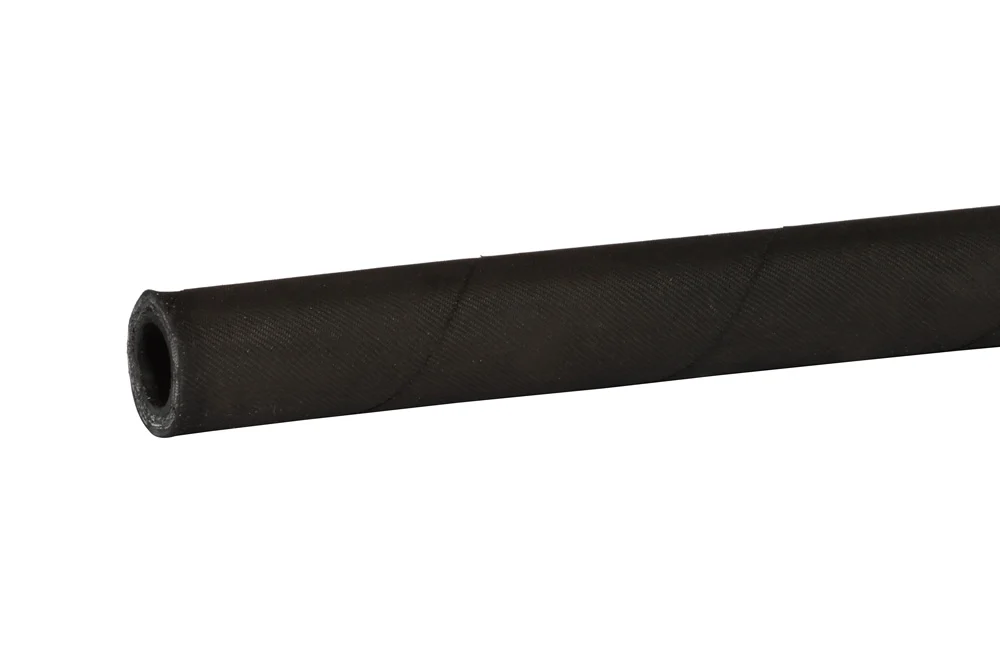

EN 857 2SC Hydraulic Hose with Double Steel Braid

Additional information

Material

synthetic rubber

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

This versatile hydraulic hose is designed for universal applications, offering a reduced outer diameter and lower weight while ensuring exceptional flexibility for easier installation even in confined spaces. Built to meet the strict requirements of EN 857 2SC, SAE 100R16, and SAE 100R2AT standards, it guarantees reliable performance across a wide range of industrial and mobile hydraulic systems. The inner layer is made of durable black synthetic rubber, reinforced with a robust double steel braid that provides outstanding strength and resistance to high pressures, ranging from 165 bar up to 400 bar depending on the hose size. The outer layer, also crafted from black synthetic rubber, delivers excellent protection against abrasion, weather conditions, and oil exposure, extending the service life of the hose even in demanding environments. With an operating temperature range from -40°C to +100°C, and the ability to withstand peaks up to +125°C, this hose ensures consistent performance in both extreme cold and high-heat applications. Its optimized construction makes it a reliable, long-lasting, and cost-effective solution for operators seeking efficiency, safety, and durability in hydraulic systems.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
HW-2SC-06SHydraulic hose EN 857 2SC 1/4"6400In stock
Enquiry
HW-2SC-08SHydraulic hose EN 857 2SC 5/16"8350In stock
Enquiry
HW-2SC-10SHydraulic hose EN 857 2SC 3/8"10330In stock
Enquiry
HW-2SC-13SHydraulic hose EN 857 2SC 1/2"12275In stock
Enquiry
HW-2SC-16SHydraulic hose EN 857 2SC 5/8"16250In stock
Enquiry
HW-2SC-19SHydraulic hose EN 857 2SC 3/420215In stock
Enquiry
HW-2SC-25SHydraulic hose EN 857 2SC 125165In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This versatile hydraulic hose is designed for universal applications, offering a reduced outer diameter and lower weight while ensuring exceptional flexibility for easier installation even in confined spaces. Built to meet the strict requirements of EN 857 2SC, SAE 100R16, and SAE 100R2AT standards, it guarantees reliable performance across a wide range of industrial and mobile hydraulic systems. The inner layer is made of durable black synthetic rubber, reinforced with a robust double steel braid that provides outstanding strength and resistance to high pressures, ranging from 165 bar up to 400 bar depending on the hose size. The outer layer, also crafted from black synthetic rubber, delivers excellent protection against abrasion, weather conditions, and oil exposure, extending the service life of the hose even in demanding environments. With an operating temperature range from -40°C to +100°C, and the ability to withstand peaks up to +125°C, this hose ensures consistent performance in both extreme cold and high-heat applications. Its optimized construction makes it a reliable, long-lasting, and cost-effective solution for operators seeking efficiency, safety, and durability in hydraulic systems.

Additional information

Material

synthetic rubber

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40
