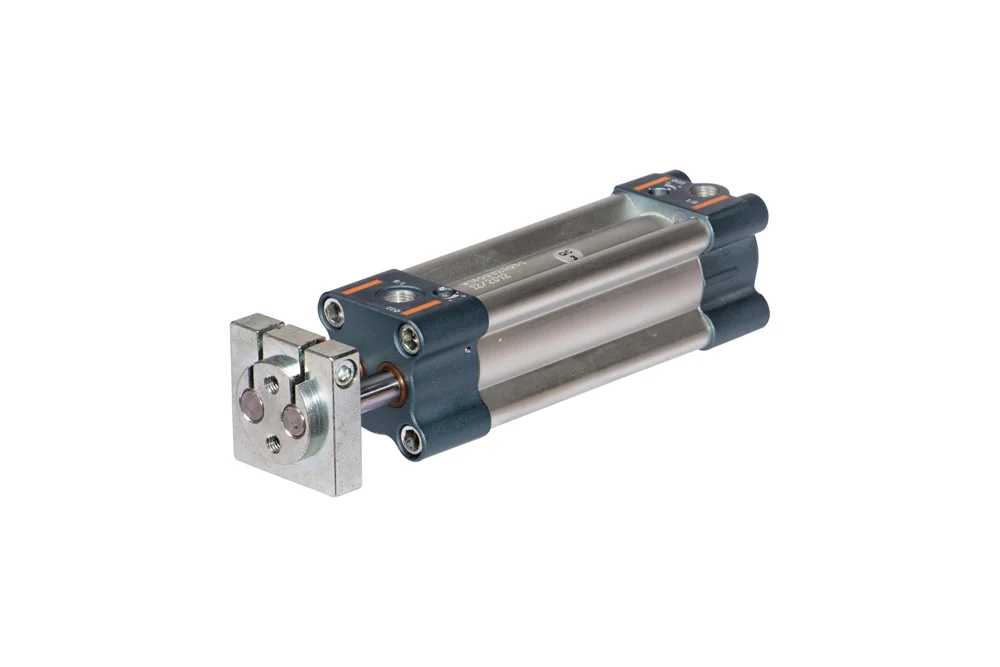

Actuator double-acting operation with passing double piston rod It can be used as element actuating in systems, in which required is protection against rotation. W the scope dimensions axial compliant with the standard ISO 15552. standard configuration with magnet and cushioning. Piston diameter: Ø 32, 40, 50, 63, 80, 100 mm. Maximum, recommended length stroke: od 25 for 500 mm. Working pressure: up to 10 bar. sealing: polyurethane. medium working: filtered compressed air, oiled or non-oiled. force produced at 6 bar extension/return: Ø 32 – 434/350 N, Ø 40 – 678/597 N, Ø 50 – 1060/940 N, Ø 63 – 1683/1471 N, Ø 80 – 2714/2295 N, Ø 100 – 4241/3812 N. Operating temperature: od -10°C up to +80°C.
Actuator double-acting operation with passing double piston rod It can be used as element actuating in systems, in which required is protection against rotation. W the scope dimensions axial compliant with the standard ISO 15552. standard configuration with magnet and cushioning. Piston diameter: Ø 32, 40, 50, 63, 80, 100 mm. Maximum, recommended length stroke: od 25 for 500 mm. Working pressure: up to 10 bar. sealing: polyurethane. medium working: filtered compressed air, oiled or non-oiled. force produced at 6 bar extension/return: Ø 32 – 434/350 N, Ø 40 – 678/597 N, Ø 50 – 1060/940 N, Ø 63 – 1683/1471 N, Ø 80 – 2714/2295 N, Ø 100 – 4241/3812 N. Operating temperature: od -10°C up to +80°C.
Additional information
Maximum operating temperature [°C]
80
Minimum operating temperature [°C]
-10
