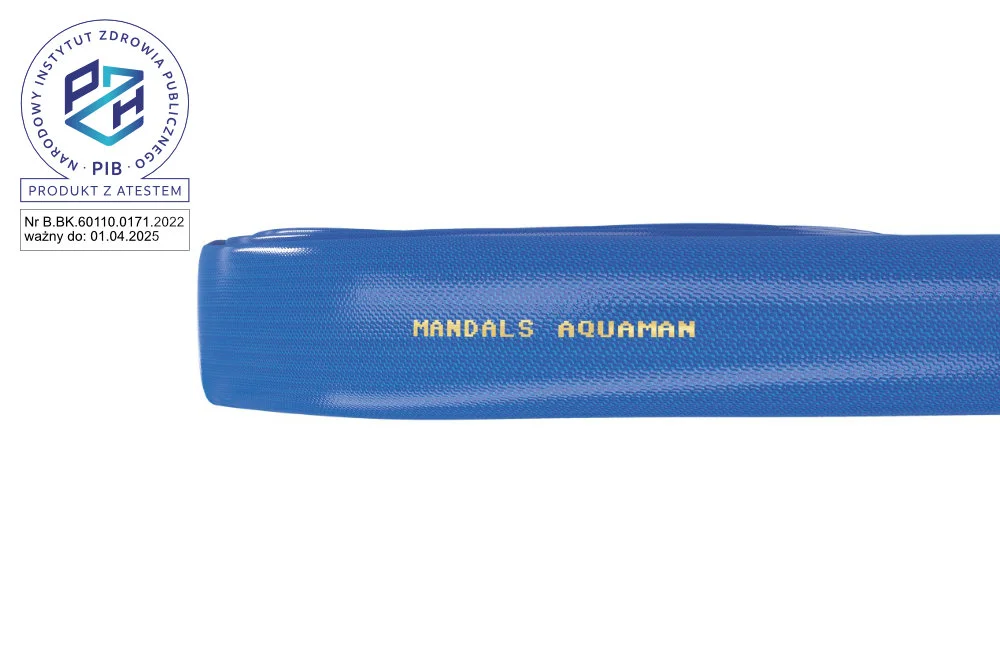

Hose flat for water potable AQUAMAN

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

75

Minimum operating temperature [°C]

-50

Vacuum resistance

no

Standard length [m]

10, 200

Reinforcement

textile braid

Light, resistant to abrasion hose delivery designed for conveying water potable in large quantities under high pressure working. flat at rest, co facilitates operation and storage. O minimum elongation under pressure and without tendency for coiling and screwing. Reinforcement with circumferentially woven braid polyester, completely bonded and surrounded thermoplastic polyurethane in original process production extrusion polyurethane on hot through braid. Meets the requirements of for conveying cold water potable: PZH (nr B.BK.60110.0171.2022, valid for 01.04.2025 r.), KTW-DVGW, WRAS(BS6920) and NSF61. intended for solid, temporary and emergency installation supply in water potable. used for supply water on vessels, in field installations military, actions humanitarian, service events mass, festivals etc. On special order Available also in other diameters for 305 mm. maximum pressure working time use fixed acc. to coefficient safety 2:1 approved through the manufacturer (only for water and safe, non-flammable liquids). Dla maximum service life not recommended exceeding 1/3 pressure bursting and given force breaking.. length standard roll: 200 m. Hose material: blue polyurethane – polyether (PU) pressed in braid (spacer textile) in process extrusion hose. Working pressure: from 18 bar to 25 bar – depending on the diameter hose and temperatures. Operating temperature: od -50°C up to +75°C (for Clean water).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
MR-AQUAMAN-025AQUAMAN hose 25mm2525In stock0 €
Enquiry
MR-AQUAMAN-051AQUAMAN hose 51 mm5022.5In stock0 €
Enquiry
MR-AQUAMAN-076AQUAMAN hose 76 mm7521In stock0 €
Enquiry
MR-AQUAMAN-102AQUAMAN hose 102 mm10018In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Light, resistant to abrasion hose delivery designed for conveying water potable in large quantities under high pressure working. flat at rest, co facilitates operation and storage. O minimum elongation under pressure and without tendency for coiling and screwing. Reinforcement with circumferentially woven braid polyester, completely bonded and surrounded thermoplastic polyurethane in original process production extrusion polyurethane on hot through braid. Meets the requirements of for conveying cold water potable: PZH (nr B.BK.60110.0171.2022, valid for 01.04.2025 r.), KTW-DVGW, WRAS(BS6920) and NSF61. intended for solid, temporary and emergency installation supply in water potable. used for supply water on vessels, in field installations military, actions humanitarian, service events mass, festivals etc. On special order Available also in other diameters for 305 mm. maximum pressure working time use fixed acc. to coefficient safety 2:1 approved through the manufacturer (only for water and safe, non-flammable liquids). Dla maximum service life not recommended exceeding 1/3 pressure bursting and given force breaking.. length standard roll: 200 m. Hose material: blue polyurethane – polyether (PU) pressed in braid (spacer textile) in process extrusion hose. Working pressure: from 18 bar to 25 bar – depending on the diameter hose and temperatures. Operating temperature: od -50°C up to +75°C (for Clean water).

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

75

Minimum operating temperature [°C]

-50

Vacuum resistance

no

Standard length [m]

10, 200

Reinforcement

textile braid
