Is the 90° Quick Coupling Socket with Male Thread & Valve, DYROS Series 40 for Injection Molds compatible with both metric and BSP threaded systems?

Yes. The 90° Quick Coupling Socket with Male Thread & Valve, DYROS Series 40 for Injection Molds is available with either metric or BSP threads, making it compatible with both metric and BSP threaded systems.

Can the 90° Quick Coupling Socket with Male Thread & Valve, DYROS Series 40 for Injection Molds withstand exposure to aggressive chemicals commonly used in plastic processing?

Yes. The 90° Quick Coupling Socket with Male Thread & Valve, DYROS Series 40 for Injection Molds is suitable for exposure to many aggressive chemicals used in plastic processing. Its key features that enable chemical resistance are: brass construction for core components, specially treated stainless-steel retaining rings, springs and balls for enhanced corrosion resistance, and high-quality Viton (FKM) seals known for excellent resistance to oils, fuels, hydraulic fluids, many solvents and typical processing chemicals. Together these materials provide durable, leak-free performance in demanding environments up to 15 bar working pressure. Caveat: While Viton and treated stainless steel resist a broad range of aggressive media, absolute compatibility depends on the specific chemical, concentration, temperature and exposure time. For aggressive acids, strong alkalis or exotic solvents at extreme concentrations/temperatures, verify compatibility by consulting chemical-resistance data for brass, the stainless-steel grade used and Viton, or contact the manufacturer with the exact chemical and operating conditions before prolonged use.

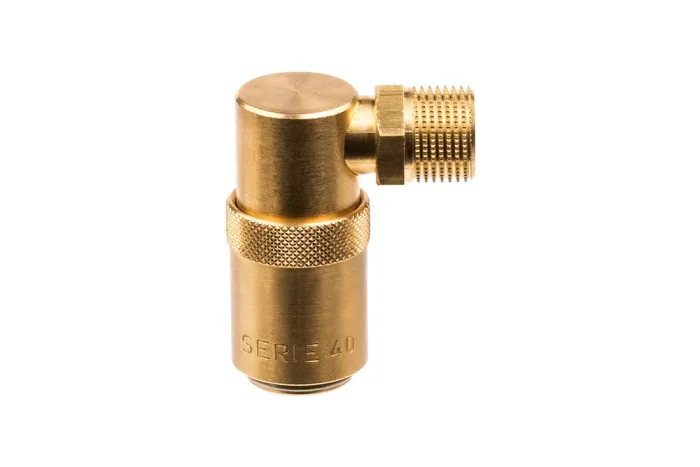

90° Quick Coupling Socket with Male Thread & Valve, DYROS Series 40 for Injection Molds

Additional information

Material	B – brass (bronze)

The 90° quick coupling socket from the DYROS series 40 is a high-performance solution designed for demanding industrial applications, combining durability with reliable functionality. Equipped with an external thread and an integrated shut-off valve, it ensures secure and efficient connections in systems handling cooling liquids for plastic processing, compressed air installations, gas cylinders, and a wide range of technical environments. Available with either metric or BSP thread, it offers flexibility to match diverse system requirements. All components are manufactured from robust brass, while the retaining rings, springs, and balls are crafted from specially treated stainless steel, guaranteeing long-lasting resistance to wear and corrosion. The use of high-quality Viton seals provides excellent chemical resistance and ensures leak-free performance even under challenging conditions. With a working pressure capacity of up to 15 bar, this coupling socket delivers reliability, safety, and efficiency, making it an ideal choice for professionals seeking a durable and versatile connection solution.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DY-VKUM445-90	90° socket DN 9 with GZ M14x1.5, with valve	-	15	In stock	Enquiry
DY-VKUM465-90	90° socket DN 9 with GZ M16x1.5, with valve	-	15	In stock	Enquiry
DY-VKUM485-90	90° socket DN 9 with GZ M18x1.5, with valve	-	15	In stock	Enquiry
DY-VKUR414-90	90° socket DN 9 with GZ 1/4", with valve	-	15	In stock	Enquiry
DY-VKUR438-90	90° socket DN 9 with GZ 3/8", with valve	-	15	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 90° quick coupling socket from the DYROS series 40 is a high-performance solution designed for demanding industrial applications, combining durability with reliable functionality. Equipped with an external thread and an integrated shut-off valve, it ensures secure and efficient connections in systems handling cooling liquids for plastic processing, compressed air installations, gas cylinders, and a wide range of technical environments. Available with either metric or BSP thread, it offers flexibility to match diverse system requirements. All components are manufactured from robust brass, while the retaining rings, springs, and balls are crafted from specially treated stainless steel, guaranteeing long-lasting resistance to wear and corrosion. The use of high-quality Viton seals provides excellent chemical resistance and ensures leak-free performance even under challenging conditions. With a working pressure capacity of up to 15 bar, this coupling socket delivers reliability, safety, and efficiency, making it an ideal choice for professionals seeking a durable and versatile connection solution.
