Is the ORFS Straight Connector with Carbon Steel BSP Socket, Type EVGE-BE compatible with hydraulic fluids at high temperatures and pressures?

The ORFS Straight Connector with Carbon Steel BSP Socket, Type EVGE-BE is designed for demanding hydraulic applications and, thanks to its carbon steel construction and durable galvanized coating, offers strong mechanical resistance and good corrosion protection. The rectangular elastomer seal provides a secure, leak‑free joint suitable for many hydraulic systems. However, compatibility with hydraulic fluids at high temperatures and pressures depends primarily on the specific elastomer material used for the seal and the exact pressure/temperature ranges. The product description does not specify the elastomer compound or rated pressure/temperature limits. Therefore, while the metal body is likely to withstand high pressures and elevated temperatures typical of industrial hydraulics, you must verify the seal material’s chemical compatibility and rated operating limits with the manufacturer or technical datasheet to confirm safe use under your intended fluid, temperature, and pressure conditions.

Can the ORFS Straight Connector with Carbon Steel BSP Socket, Type EVGE-BE be used in marine or offshore hydraulic systems exposed to salt spray and corrosive environments?

Yes — the ORFS Straight Connector with Carbon Steel BSP Socket, Type EVGE-BE can be used in marine or offshore hydraulic systems exposed to salt spray and corrosive environments, with some important qualifications. Why it’s suitable: - Material and coating: Made from high-quality carbon steel with a durable galvanized coating, it offers enhanced resistance to corrosion and mechanical wear compared with uncoated carbon steel. - Seal reliability: The rectangular elastomer ORFS seal provides a secure, leak-free connection that supports long-term performance in demanding conditions. - Robust design: Engineered for demanding hydraulic applications, it is compatible with a wide range of systems and built to minimize maintenance. Limitations and recommendations: - Galvanized coating is protective but not as corrosion-resistant as stainless steel or specialized marine-grade coatings; prolonged exposure to severe saltwater, splash zones, or highly corrosive atmospheres may eventually cause corrosion. - For continuous immersion, very aggressive environments, or where long service life with minimal corrosion risk is critical, consider stainless steel or fittings with marine-grade corrosion protection. - Implement additional protection (e.g., sacrificial anodes, regular inspection, anti-corrosion treatments, or protective covers) and a maintenance schedule to extend service life in offshore/marine use. Conclusion: Suitable for many marine/offshore salt-spray environments when protected and maintained, but evaluate exposure severity and consider stainless or specialist coatings for the most aggressive conditions.

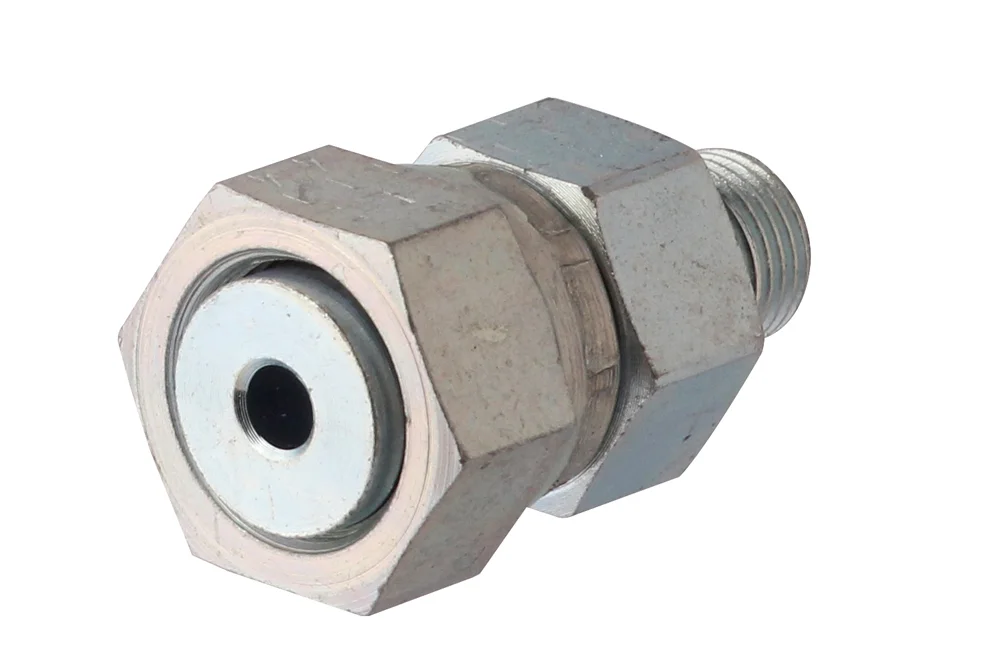

ORFS Straight Connector with Carbon Steel BSP Socket, Type EVGE-BE

Additional information

Material	CS – steel (cast iron)
Standard length [m]	2

The straight ORFS fitting with external BSP thread, type EVGE-BE, is a robust and reliable connection element designed for demanding hydraulic applications. Manufactured from high-quality carbon steel and protected with a durable galvanized coating, it ensures excellent resistance to corrosion and mechanical wear, even in harsh operating environments. The rectangular cross-section elastomer seal provides a secure, leak-free connection, guaranteeing long-term performance and minimizing maintenance needs. Thanks to its precise engineering and compatibility with a wide range of hydraulic systems, this fitting offers both versatility and efficiency, making it an ideal choice for industries that require dependable fluid transfer solutions. Its combination of strength, durability, and sealing reliability makes it a cost-effective investment for optimizing system safety and performance.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HO-EVGE-09-BE-02	GZ BSP 1/8" connector - GW ORFS 9/16"-18	-	630	In stock	Enquiry
HO-EVGE-09-BE-04	GZ BSP 1/4" connector - GW ORFS 9/16"-18	-	630	In stock	Enquiry
HO-EVGE-11-BE-04	GZ BSP 1/4" connector - GW ORFS 11/16"-16	-	630	In stock	Enquiry
HO-EVGE-11-BE-06	GZ BSP 3/8" connector - GW ORFS 11/16"-16	-	630	In stock	Enquiry
HO-EVGE-13-BE-06	GZ BSP 3/8" connector - GW ORFS 13/16"-16	-	630	In stock	Enquiry
HO-EVGE-13-BE-08	GZ BSP 1/2" connector - GW ORFS 13/16"-16	-	630	In stock	Enquiry
HO-EVGE-16-BE-08	GZ BSP 1/2" connector - GW ORFS 1"-14	-	420	In stock	Enquiry
HO-EVGE-19-BE-12	GZ BSP 3/4" connector - GW ORFS 1.3/16"-12"	-	420	In stock	Enquiry
HO-EVGE-19-BE-20	GZ BSP 1.1/4" - GW ORFS 1.3/16"-12	-	420	In stock	Enquiry
HO-EVGE-23-BE-16	GZ BSP 1" - GW ORFS 1.7/16"-12	-	420	In stock	Enquiry
HO-EVGE-27-BE-20	GZ BSP 1.1/4" - GW ORFS 1.11/16"-12	-	280	In stock	Enquiry
HO-EVGE-32-BE-24	GZ BSP 1.1/2" connector - GW ORFS 2"-12"	-	280	In stock	Enquiry
