Is the JIC Straight Fitting with Stainless Steel BSP Socket, Type EVGE-BE compatible with seawater and resistant to corrosion in marine environments?

Yes. The JIC Straight Fitting with Stainless Steel BSP Socket, Type EVGE-BE is manufactured from AISI 316 stainless steel and is described as delivering exceptional resistance to corrosion, specifically noting suitability for harsh environments including marine applications. AISI 316 stainless steel offers good resistance to seawater and chloride-induced corrosion compared with common steels, and the robust BSP thread with integrated elastomer seal and 37° JIC flare provide secure, leak‑resistant joints that help prevent ingress and galvanic issues. Note: long‑term performance in specific seawater environments can depend on factors such as temperature, flow velocity, exposure to crevice or galvanic conditions, and the exact elastomer material used for the seal. For critical marine installations, verify compatibility of the seal material with seawater and consider application‑specific testing or consult the manufacturer for confirmed seawater service ratings.

Does the JIC Straight Fitting with Stainless Steel BSP Socket, Type EVGE-BE require special maintenance when used in marine or chemical environments?

The JIC Straight Fitting with Stainless Steel BSP Socket, Type EVGE-BE does not usually require special maintenance beyond standard best practices, thanks to its AISI 316 stainless steel construction and robust elastomer seal designed for harsh environments. However, to ensure optimal long‑term performance in marine or aggressive chemical atmospheres, follow these recommendations: - Regular inspection: check for signs of corrosion, pitting, crevice attack, or damage to the elastomer seal at scheduled intervals, especially in saltwater or highly corrosive chemical exposures. - Cleaning: rinse fittings with fresh water after saltwater exposure; for chemical residues, use a compatible cleaning agent recommended for AISI 316 and the specific elastomer. - Seal care: inspect and replace the elastomer seal if hardened, cracked, swollen, or contaminated by incompatible fluids. Use seals specified by the manufacturer. - Avoid dissimilar metals contact: minimize galvanic corrosion by avoiding direct contact with more anodic metals or use insulating measures. - Torque and assembly: follow correct assembly torque and thread engagement practices to protect threads and maintain leak‑free performance. - Protective measures: consider additional protective coatings, sacrificial anodes, or regular application of corrosion inhibitors in highly aggressive environments. Following these steps will preserve the fitting’s corrosion resistance and sealing reliability without requiring extraordinary maintenance procedures.

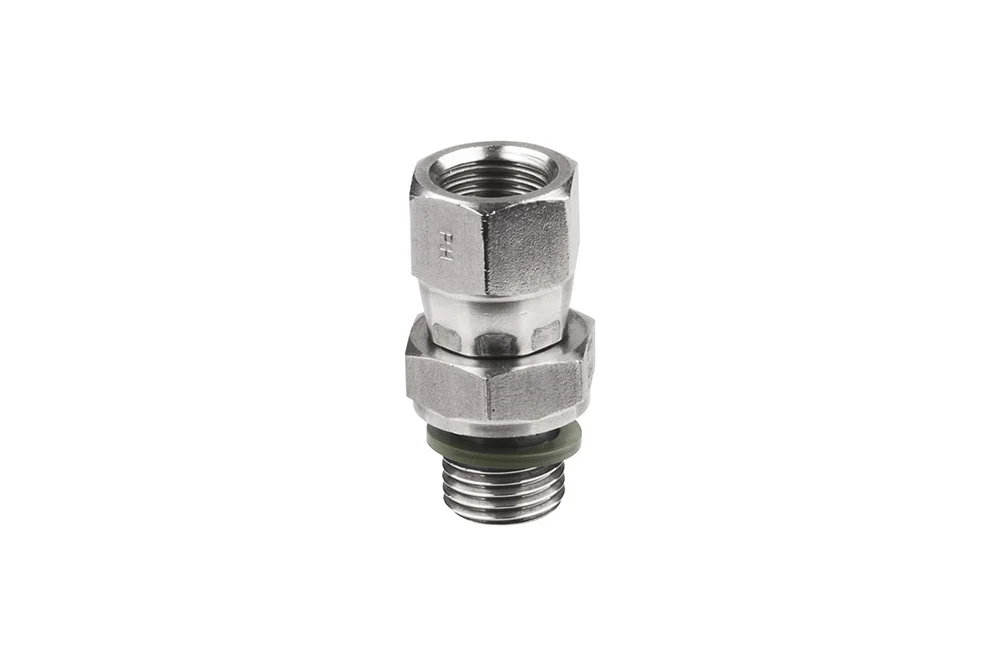

JIC Straight Fitting with Stainless Steel BSP Socket, Type EVGE-BE

Additional information

Material	SS – stainless steel

The Straight JIC 37° fitting with external BSP thread and rectangular cross‑section elastomer seal is a high‑performance connector designed for demanding hydraulic and industrial applications. Manufactured from premium AISI 316 stainless steel, it ensures exceptional resistance to corrosion, making it ideal for use in harsh environments, including marine, chemical, and outdoor installations. The precise 37° JIC flare guarantees a secure, leak‑free connection, while the robust BSP thread with integrated elastomer seal provides additional reliability and ease of assembly. Engineered for durability and long service life, this fitting combines strength with precision, helping to optimize system efficiency and minimize downtime. Its universal compatibility and superior sealing performance make it a trusted choice for professionals seeking dependable solutions in fluid transfer systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-EVGE-07-BE-02-SS	GW JIC 7/16"-20 / GZ BSP 1/8", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-07-BE-04-SS	GW JIC 7/16"-20 / GZ BSP 1/4", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-08-BE-02-SS	GW JIC 1/2"-20 / GZ BSP 1/8", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-08-BE-04-SS	GW JIC 1/2"-20 / GZ BSP 1/4", AISI 316 fitting	-	350	In stock	Enquiry
HJ-EVGE-08-BE-06-SS	GW JIC 1/2"-20 / GZ BSP 3/8", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-09-BE-04-SS	GW JIC 9/16"-18 / GZ BSP 1/4", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-09-BE-06-SS	GW JIC 9/16"-18 / GZ BSP 3/8", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-09-BE-08-SS	GW JIC 9/16"-18 / GZ BSP 1/2", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-12-BE-04-SS	GW JIC 3/4"-16 / GZ BSP 1/4", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-12-BE-06-SS	GW JIC 3/4"-16 / GZ BSP 3/8", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-12-BE-08-SS	GW JIC 3/4"-16 / GZ BSP 1/2", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-14-BE-06-SS	GW JIC 7/8"-14 / GZ BSP 3/8", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-14-BE-08-SS	GW JIC 7/8"-14 / GZ BSP 1/2", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-14-BE-12-SS	GW JIC 7/8"-14 / GZ BSP 3/4", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-17-BE-08-SS	GW JIC 1.1/16"-12 / GZ BSP 1/2", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-17-BE-12-SS	GW JIC 1.1/16"-12 / GZ BSP 3/4", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-17-BE-16-SS	GW JIC 1.1/16"-12 / GZ BSP 1", AISI 316	-	350	In stock	Enquiry
HJ-EVGE-21-BE-12-SS	GW JIC 1.5/16"-12 / GZ BSP 3/4", AISI 316	-	290	In stock	Enquiry
HJ-EVGE-21-BE-16-SS	GW JIC 1.5/16"-12 / GZ BSP 1", AISI 316	-	290	In stock	Enquiry
HJ-EVGE-26-BE-16-SS	GW JIC 1.5/8"-12 / GZ BSP 1", AISI 316	-	240	In stock	Enquiry
HJ-EVGE-26-BE-20-SS	GW JIC 1.5/8"-12 / GZ BSP 1.1/4", AISI 316	-	240	In stock	Enquiry
HJ-EVGE-30-BE-20-SS	GW JIC 1.7/8"-12 / GZ BSP 1.1/4", AISI 316	-	240	In stock	Enquiry
HJ-EVGE-30-BE-24-SS	GW JIC 1.7/8"-12 / GZ BSP 1.1/2", AISI 316	-	240	In stock	Enquiry
