Is the GZ BSP, 45° internal cone, brass, EW type compatible with standard BSPP threaded ports and rated for 40 bar working pressure?

Yes. The GZ BSP, 45° internal cone, brass, EW type is compatible with standard BSPP (British Standard Pipe Parallel) threaded ports that accept a 45° internal cone seating. Constructed from high-quality brass, it is suitable for hydraulic and pneumatic systems and is rated for a working pressure up to 40 bar. Its robust design and precise threading provide secure, leak-free connections across a wide temperature range (-10°C to +90°C), making it a reliable choice where standard BSPP threads and a 45° cone seal are required. GZ BSP, 45° internal cone, brass, EW type

Can the GZ BSP, 45° internal cone, brass, EW type be used in hydraulic systems exposed to temperatures as low as -10°C and as high as +90°C?

Yes. The GZ BSP, 45° internal cone, brass, EW type is specified for an operating temperature range of -10°C to +90°C, so it can be used in hydraulic systems exposed to those temperatures. Made of high-quality brass, it offers corrosion and wear resistance, supports working pressures up to 40 bar, and provides reliable, leak-free connections across that temperature span—making it suitable for demanding industrial hydraulic applications.

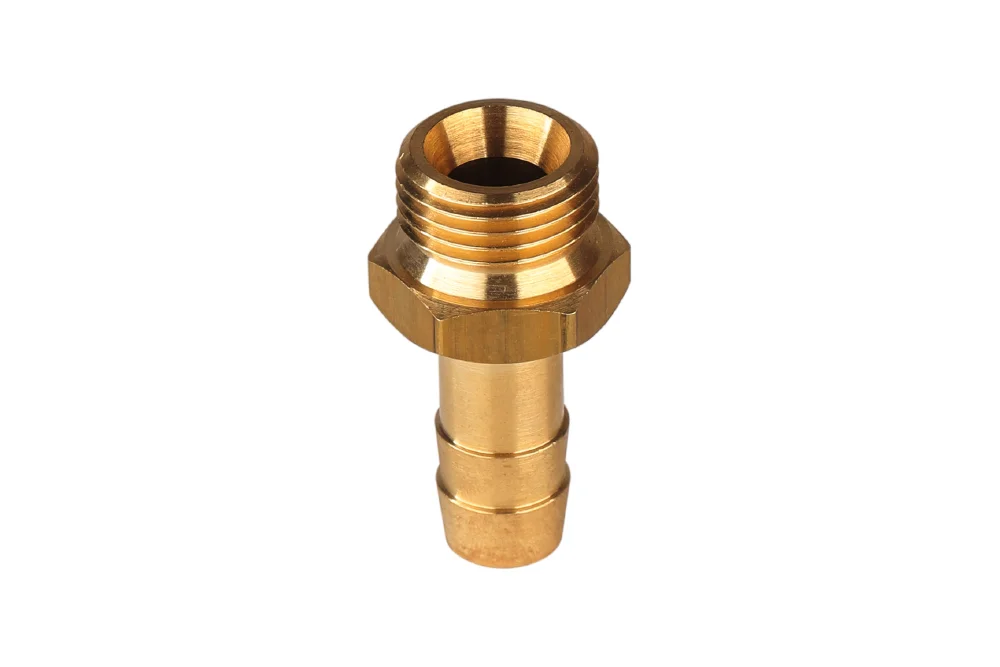

A fitting with a male BSP thread, cone internal 45°, brass, type EW

All products, Low-pressure fittings and adapters/

Additional information

Material	B – brass (bronze)

A fitting with thread external BSP, cone internal 45°. Material: brass. Working pressure: 40 bar. Operating temperature: od -10°C up to +90°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EW-MS-11325	Fitting with 3/4" BSP male, hose 9 mm, 45° cone, brass	10	40	In stock	Enquiry
EW-MS-11326	Fitting with 3/4" BSP male, hose 13 mm, 45° cone, brass	12	40	In stock	Enquiry
EW-MS-11327	Fitting with 3/4" BSP male, hose 19 mm, 45° cone, brass	20	40	In stock	Enquiry
EW-MS-11328	Fitting with 1" BSP male, hose 19 mm, 45° cone, brass	20	40	In stock	Enquiry
EW-MS-11329	Fitting with 1" BSP male, hose 25 mm, 45° cone, brass	25	40	In stock	Enquiry
EW-MS-11330	Fitting with 1" BSP male, hose 32 mm, 45° cone, brass	32	40	In stock	Enquiry
EW-MS-11331A	Fitting with 1/4" BSP male, hose 6 mm, 45° cone, brass	6	40	In stock	Enquiry
EW-MS-11332A	Fitting with 3/8" BSP male, hose 6 mm, 45° cone, brass	6	40	In stock	Enquiry
EW-MS-11334A	Fitting with 3/8" BSP male, hose 9 mm, 45° cone, brass	10	40	In stock	Enquiry
EW-MS-11340A	Fitting with 1/4" BSP male, hose 9 mm, 45° cone, brass	10	40	In stock	Enquiry
EW-MS-11341	Fitting with 1/8" BSP male, hose 4 mm, 45° cone, brass	4	40	In stock	Enquiry
EW-MS-11343	Fitting with 3/8" BSP male, hose 13 mm, 45° cone, brass	12	40	In stock	Enquiry
EW-MS-11344	Fitting with 1/2" BSP male, hose 13 mm, 45° cone, brass	12	40	In stock	Enquiry
EW-MS-11351	Fitting with 1/8" BSP male, hose 6 mm, 45° cone, brass	6	40	In stock	Enquiry
EW-MS-11352	Fitting with 1/8" BSP male, hose 9 mm, 45° cone, brass	10	40	In stock	Enquiry
EW-MS-11366	Fitting with 1/2" BSP male, hose 9 mm, 45° cone, brass	10	40	In stock	Enquiry
EW-MS-11367	Fitting with 1/2" BSP male, hose 6 mm, 45° cone, brass	6	40	In stock	Enquiry
EW-MS-11368	Fitting with 1/4" BSP male, hose 4 mm, 45° cone, brass	4	40	In stock	Enquiry
EW-MS-11371	Fitting with 1/4" BSP male, hose 13 mm, 45° cone, brass	12	40	In stock	Enquiry
