Is the 90° SAE 6000 Flange Connection / BSP Male, Carbon Steel, Type C6 compatible with other BSP-threaded fittings and adapters?

Yes — the 90° SAE 6000 Flange Connection / BSP Male, Carbon Steel, Type C6 is compatible with other BSP-threaded fittings and adapters, provided those components share the same BSP thread size and type (e.g., BSPP or BSPT as applicable). Its external BSP thread allows straightforward mating with standard BSP female ports or adapters, enabling integration into existing BSP-based hydraulic systems. Important considerations to ensure proper compatibility and leak-free operation: - Match thread type and size exactly (BSPP vs BSPT and nominal diameter). - Verify thread tolerance and class to avoid cross-threading or loose fits. - Use the supplied NBR o-ring and proper sealing method where the design requires a face seal; for tapered threads, use appropriate sealing practice (sealant, tape) as recommended. - Confirm pressure and temperature ratings of mating components meet system demands (this Type C6 is designed for high-pressure hydraulic use and -20°C to +100°C). - Inspect material compatibility (carbon steel with galvanized finish) to prevent galvanic corrosion if mating with dissimilar metals. When those conditions are met, the Type C6 will integrate reliably with other BSP-threaded fittings and adapters.

Can the 90° SAE 6000 Flange Connection / BSP Male, Carbon Steel, Type C6 be used in mobile hydraulic systems exposed to saltwater or salty environments?

The 90° SAE 6000 Flange Connection / BSP Male, Carbon Steel, Type C6 can be used in mobile hydraulic systems exposed to saltwater or salty environments with some important caveats. Its carbon steel body with a galvanized finish provides enhanced corrosion and wear resistance compared with bare carbon steel, and the supplied NBR O‑ring and robust sealing make it suitable for marine and mobile hydraulic applications within the stated operating temperature range (−20°C to +100°C). However, galvanized coatings offer limited long‑term protection in highly corrosive saltwater environments (constant seawater immersion, spray, or prolonged exposure to chloride-rich atmospheres). For continuous or heavy saltwater exposure, stainless steel or higher-grade corrosion‑resistant coatings are generally preferred. Also consider using compatible seals (NBR is commonly used but may age faster with certain marine chemicals or extended UV/sun exposure) and ensure proper installation, regular inspection, and maintenance (cleaning, re‑coating or replacement as needed). Recommendation: acceptable for intermittent or moderate salty environments and mobile use if regularly inspected and maintained; for continuous seawater immersion or very aggressive marine conditions, choose a stainless steel variant or enhanced corrosion protection.

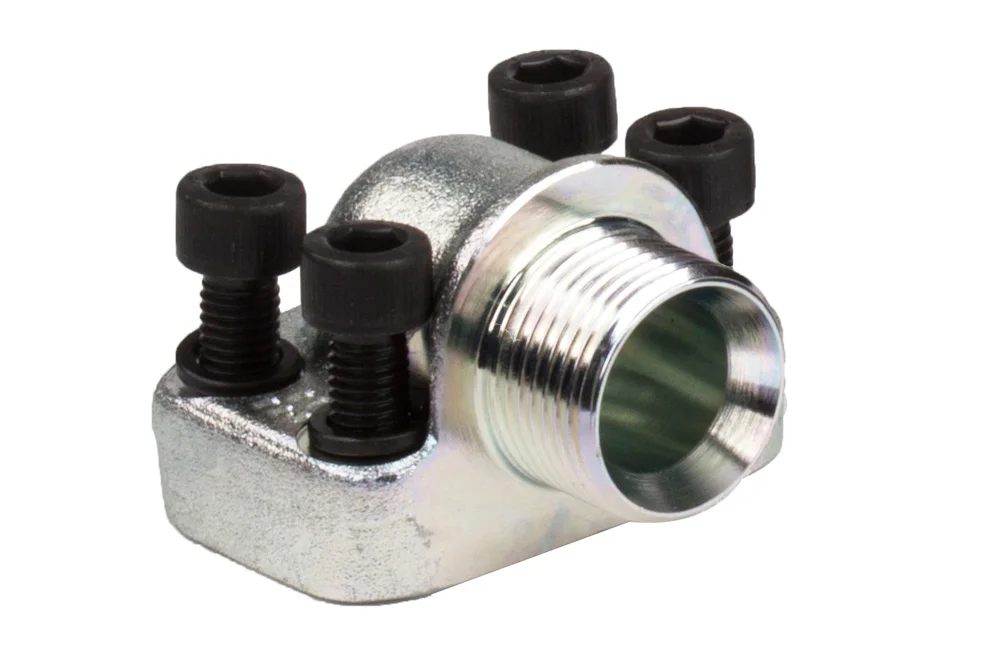

90° SAE 6000 Flange Connection / BSP Male, Carbon Steel, Type C6

All products, High-pressure adapters/

Additional information

Material	CS – steel (cast iron)

The 90° SAE 6000 flange connection with external BSP thread is a compact and reliable solution designed for demanding hydraulic systems, ensuring secure and leak-free performance even under high pressure. Manufactured from durable carbon steel with a galvanized finish, it offers excellent resistance to wear and corrosion, extending service life in challenging environments. The connection is supplied complete with mounting screws and an NBR o-ring seal, simplifying installation and guaranteeing a tight fit. With an operating temperature range from -20°C to +100°C, it provides consistent functionality across a wide spectrum of applications, from industrial machinery to mobile hydraulics. Its space-saving design makes it ideal for systems where efficiency and durability must go hand in hand, delivering both robust performance and easy integration into existing setups.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HK-C6-B-90-08-06	90° flange fitting SAE 6000 1/2", GZ 3/8" BSP	-	420	In stock	Enquiry
HK-C6-B-90-08-08	90° flange fitting SAE 6000 1/2", GZ 1/2" BSP	-	420	In stock	Enquiry
HK-C6-B-90-08-12	90° flange fitting SAE 6000 1/2", GZ 3/4" BSP	-	420	In stock	Enquiry
HK-C6-B-90-12-08	90° flange fitting SAE 6000 3/4", G 1/2" BSP	-	420	In stock	Enquiry
HK-C6-B-90-12-12	90° flange fitting SAE 6000 3/4", G 3/4" BSP	-	420	In stock	Enquiry
HK-C6-B-90-12-16	90° flange fitting SAE 6000 3/4", G 1" BSP	-	420	In stock	Enquiry
HK-C6-B-90-16-12	90° flange fitting SAE 6000 1", G 3/4" BSP	-	420	In stock	Enquiry
HK-C6-B-90-16-16	90° flange fitting SAE 6000 1", G1" BSP	-	420	In stock	Enquiry
HK-C6-B-90-16-20	90° flange fitting SAE 6000 1", G1 1/4" BSP	-	420	In stock	Enquiry
HK-C6-B-90-20-16	90° flange fitting SAE 6000 1.1/4", G 1" BSP	-	420	In stock	Enquiry
HK-C6-B-90-20-20	90° flange fitting SAE 6000 1.1/4", G 1.1/4" BSP	-	420	In stock	Enquiry
HK-C6-B-90-20-24	90° flange fitting SAE 6000 1.1/4", G 1.1/2" BSP	-	420	In stock	Enquiry
HK-C6-B-90-24-20	90° flange fitting SAE 6000 1.1/2", G 1.1/4" BSP	-	420	In stock	Enquiry
HK-C6-B-90-24-24	90° flange fitting SAE 6000 1.1/2", G 1.1/2" BSP	-	420	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 90° SAE 6000 flange connection with external BSP thread is a compact and reliable solution designed for demanding hydraulic systems, ensuring secure and leak-free performance even under high pressure. Manufactured from durable carbon steel with a galvanized finish, it offers excellent resistance to wear and corrosion, extending service life in challenging environments. The connection is supplied complete with mounting screws and an NBR o-ring seal, simplifying installation and guaranteeing a tight fit. With an operating temperature range from -20°C to +100°C, it provides consistent functionality across a wide spectrum of applications, from industrial machinery to mobile hydraulics. Its space-saving design makes it ideal for systems where efficiency and durability must go hand in hand, delivering both robust performance and easy integration into existing setups.
