Compensator rubber flange E-LPG

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

90

Minimum operating temperature [°C]

-20

Vacuum resistance

yes

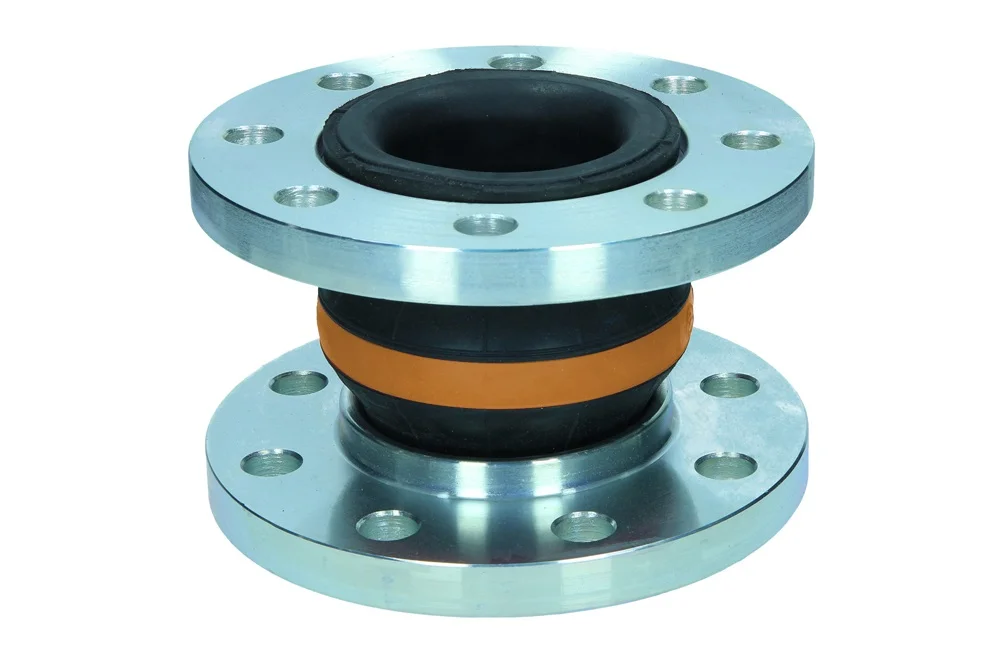

Intended for conveying LPG (Liquid Petroleum Gas) in accordance with the standard EN 589 in tankers, installations fuel, stations fuels. has certificate Germanisher Lloyd. Also available with ASA 300 flanges. Marked on the bellows with a single orange stripe. Inner layer: conductive NBR rubber. Reinforcement: cord nylon. Outer layer: conductive rubber CR. Flanges: galvanized carbon steel. Operating temperature: od -20°C up to +90°C (momentarily +100°C depending on medium).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TG-E-OR-025Rubber compensator type E-LPG, DN25, PN252525In stock0 €
Enquiry
TG-E-OR-032Rubber compensator type E-LPG, DN32, PN253225In stock0 €
Enquiry
TG-E-OR-040Rubber compensator type E-LPG, DN40, PN254025In stock0 €
Enquiry
TG-E-OR-050Rubber compensator type E-LPG, DN50, PN255025In stock0 €
Enquiry
TG-E-OR-065Rubber compensator type E-LPG, DN65, PN256525In stock0 €
Enquiry
TG-E-OR-080Rubber compensator type E-LPG, DN80, PN258025In stock0 €
Enquiry
TG-E-OR-100Rubber compensator type E-LPG, DN100, PN2510025In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Intended for conveying LPG (Liquid Petroleum Gas) in accordance with the standard EN 589 in tankers, installations fuel, stations fuels. has certificate Germanisher Lloyd. Also available with ASA 300 flanges. Marked on the bellows with a single orange stripe. Inner layer: conductive NBR rubber. Reinforcement: cord nylon. Outer layer: conductive rubber CR. Flanges: galvanized carbon steel. Operating temperature: od -20°C up to +90°C (momentarily +100°C depending on medium).

Additional information

Material

NBR – nitrile rubber

Maximum operating temperature [°C]

90

Minimum operating temperature [°C]

-20

Vacuum resistance

yes

Do you need a larger quantity of products or a bespoke quote?
