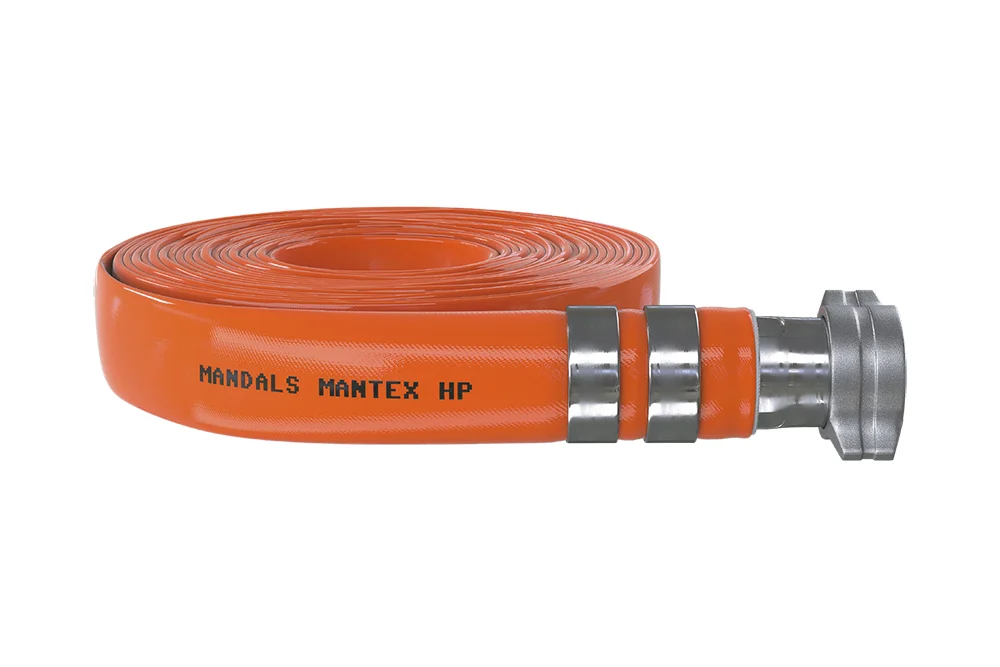

High-Pressure Flat Hose with MANTEX HP Fittings for Compressed Air

Additional information

Material

CS – steel (cast iron)

Maximum operating temperature [°C]

110

Minimum operating temperature [°C]

-50

Vacuum resistance

no

This high-pressure polyurethane hose is engineered for the most demanding applications, ensuring reliable performance in environments such as construction sites, mining operations, and other heavy-duty industries where equipment requires a continuous supply of compressed air. Its double-layer design with dual polyester braid reinforcement guarantees exceptional strength, while the thermoplastic polyurethane cover provides outstanding resistance to abrasion, punctures, tearing, and oil exposure. The hose maintains stability under pressure without elongation, withstands longitudinal loads, and remains flat when not in use, making it easy to handle, transport, and store. With an impressive operating temperature range from -50°C to +110°C and working pressures between 30 and 43.75 bar depending on diameter, it delivers consistent durability even in extreme conditions. Available in ready-to-use 20 m and 40 m lengths with factory-installed fittings, it offers a safe and efficient solution for powering high-consumption pneumatic tools. Designed with a 4:1 safety factor, it ensures maximum reliability, provided that recommended safety guidelines are followed. The distinctive orange polyurethane outer layer not only enhances visibility but also reinforces its professional-grade durability, making it the ultimate choice for industries that demand uncompromising performance.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
MR-MANTEXHP-051-20MANTEX HP 51 mm hose with GW Rd 65x1/6" connections, Lc=20m5043.75In stock
Enquiry
MR-MANTEXHP-051-40MANTEX HP 51 mm hose with GW Rd 65x1/6" connections, Lc=40m5043.75In stock
Enquiry
MR-MANTEXHP-076-20MANTEX HP 76 mm hose with BSP 3" connections, Lc=20m7530In stock
Enquiry
MR-MANTEXHP-076-40MANTEX HP 76 mm hose with BSP 3" connections, Lc=40m7530In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This high-pressure polyurethane hose is engineered for the most demanding applications, ensuring reliable performance in environments such as construction sites, mining operations, and other heavy-duty industries where equipment requires a continuous supply of compressed air. Its double-layer design with dual polyester braid reinforcement guarantees exceptional strength, while the thermoplastic polyurethane cover provides outstanding resistance to abrasion, punctures, tearing, and oil exposure. The hose maintains stability under pressure without elongation, withstands longitudinal loads, and remains flat when not in use, making it easy to handle, transport, and store. With an impressive operating temperature range from -50°C to +110°C and working pressures between 30 and 43.75 bar depending on diameter, it delivers consistent durability even in extreme conditions. Available in ready-to-use 20 m and 40 m lengths with factory-installed fittings, it offers a safe and efficient solution for powering high-consumption pneumatic tools. Designed with a 4:1 safety factor, it ensures maximum reliability, provided that recommended safety guidelines are followed. The distinctive orange polyurethane outer layer not only enhances visibility but also reinforces its professional-grade durability, making it the ultimate choice for industries that demand uncompromising performance.

Additional information

Material

CS – steel (cast iron)

Maximum operating temperature [°C]

110

Minimum operating temperature [°C]

-50

Vacuum resistance

no

Do you need a larger quantity of products or a bespoke quote?
