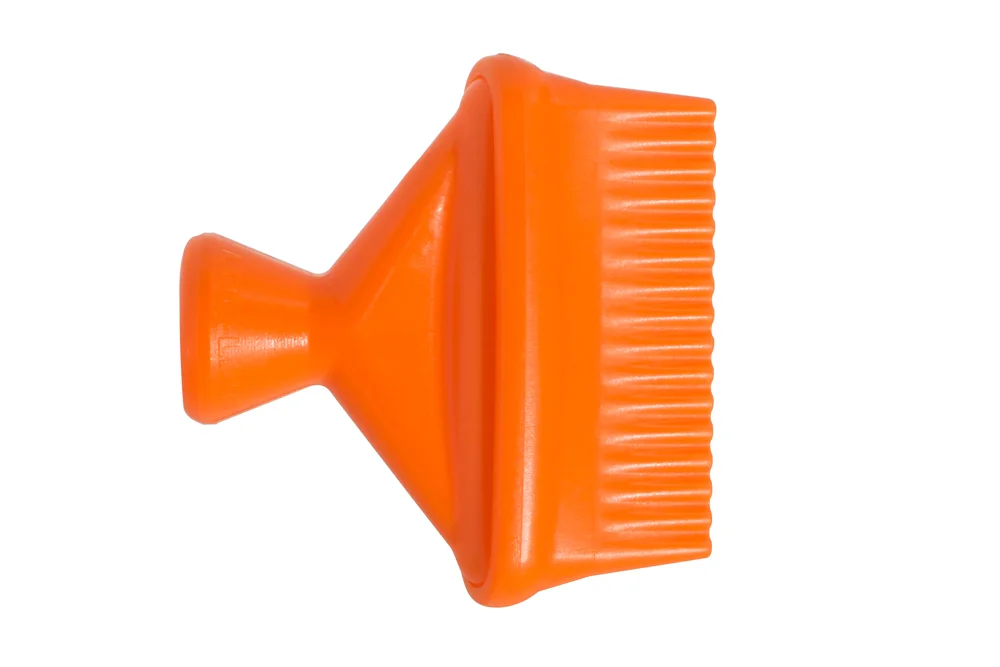

Nozzle flat with adjustable head with holes for coolant, system 1/4″, LOC-LINE®

Air and water hoses, All products/

Additional information

Nozzle flat with adjustable head with holes (16 or 20 holes) o diameter Ø 1 mm, Ø 1.5 mm or Ø 1.9 mm for hoses for coolant LOC-LINE® – system 1/4″. Material: acetal. Working pressure: up to 3 bar. Operating temperature: up to +76°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
LL-49449	Nozzle flat with holes 16x1 mm (system 1/4")	-	3	In stock	Enquiry
LL-49450	Nozzle flat with holes 16x1.5 mm (system 1/4")	-	3	In stock	Enquiry
LL-49455	Nozzle flat with holes 20x1.9 mm (system 1/4")	-	3	In stock	Enquiry
