Is the Free-Flow Plug DN22, BSP Male, Hardened Steel, 2100 Series compatible with standard BSP female couplers and pneumatic tools?

Yes. The Free-Flow Plug DN22, BSP Male, Hardened Steel, 2100 Series is compatible with standard BSP female couplers and pneumatic tools. Its external BSP thread and universal quick-coupling design ensure seamless mating with common BSP female connectors. Built from hardened, galvanized steel with a large-diameter free-flow profile, it supports high flow (12,000 l/min at 6 bar), a maximum working pressure of 20 bar, and reliable, leak-free connections—making it suitable for demanding pneumatic tools and industrial couplers.

Can the Free-Flow Plug DN22, BSP Male, Hardened Steel, 2100 Series withstand continuous operation at near-max flow (12,000 l/min) without accelerated wear or performance loss?

Free-Flow Plug DN22, BSP Male, Hardened Steel, 2100 Series is designed for demanding, high-consumption pneumatic use and, based on its specification, can operate continuously at near-max flow (12,000 l/min) without accelerated wear or performance loss provided operating conditions remain within specified limits. Key supporting points: - Flow and pressure specs: rated for 12,000 l/min at 6 bar with only 0.5 bar drop, indicating the design supports sustained high flow with low internal restriction. - Materials and durability: manufactured from hardened, galvanized steel for exceptional wear resistance and corrosion protection, which reduces degradation under continuous duty. - Maximum working pressure: 20 bar rating gives a margin above the tested flow condition, supporting safe continuous operation. - Free-flow, large-diameter design: minimizes turbulence and energy losses that can accelerate wear. Caveats and recommendations: - Continuous life will depend on actual operating factors (air quality, particulate contamination, temperature, cycle frequency, connection/disconnection frequency, and maintenance). - Use appropriate filtration, lubrication, and routine inspection to prevent abrasive or corrosive damage. - For critical continuous-duty applications, verify with manufacturer for long-term endurance testing or arrange periodic maintenance intervals. Conclusion: When used within its specified pressure/flow limits and with proper filtration and maintenance, the Free-Flow Plug DN22, BSP Male, Hardened Steel, 2100 Series is suitable for continuous near-max flow operation without accelerated wear or performance loss.

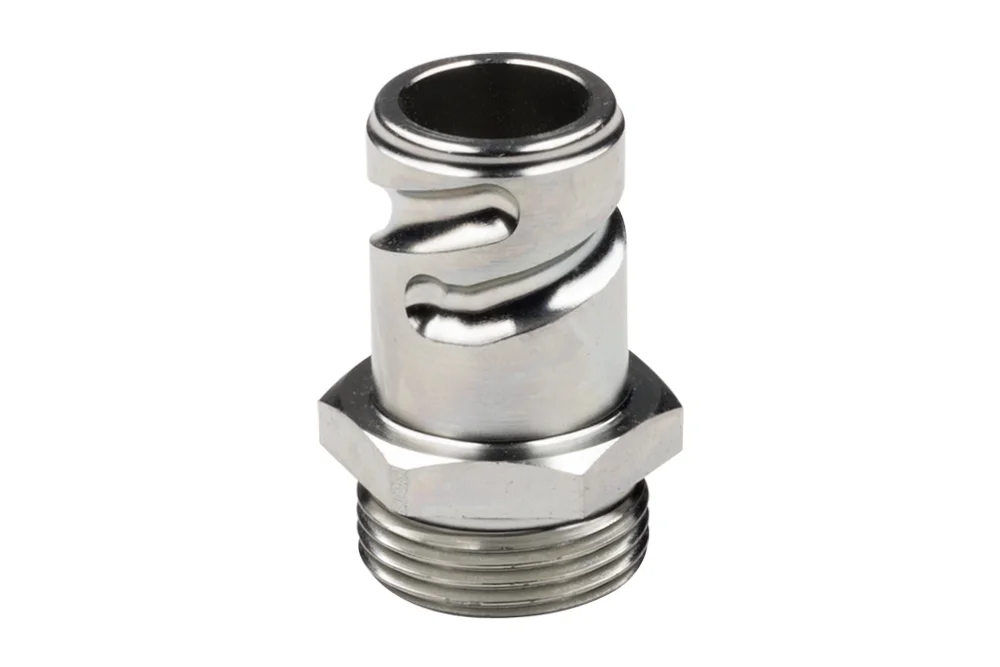

Free-Flow Plug DN22, BSP Male, Hardened Steel, 2100 Series

All products, General-purpose low-pressure quick couplings/

Additional information

Material	CS – steel (cast iron)

The universal quick coupling plug with external BSP thread is designed for demanding pneumatic applications, ensuring reliable and efficient performance in compressed air systems. Engineered to deliver an impressive flow capacity of 12,000 l/min at an inlet pressure of 6 bar with a pressure drop of only 0.5 bar, it guarantees optimal air supply even in high-consumption environments. Manufactured from hardened, galvanized steel, the plug offers exceptional durability, resistance to wear, and long-lasting protection against corrosion, making it ideal for intensive industrial use. With a maximum working pressure of 20 bar, it provides a secure and leak-free connection, supporting both safety and productivity. Its large-diameter free-flow design minimizes energy losses and enhances system efficiency, while the universal compatibility ensures seamless integration with a wide range of pneumatic tools and equipment. This robust and high-performance coupling plug is the perfect solution for professionals seeking reliability, efficiency, and long service life in their compressed air installations.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
RE-2100SFAW33SXZ	Quick coupling plug 2100, without valve, GZ 1" BSP, galvanized steel	-	20	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The universal quick coupling plug with external BSP thread is designed for demanding pneumatic applications, ensuring reliable and efficient performance in compressed air systems. Engineered to deliver an impressive flow capacity of 12,000 l/min at an inlet pressure of 6 bar with a pressure drop of only 0.5 bar, it guarantees optimal air supply even in high-consumption environments. Manufactured from hardened, galvanized steel, the plug offers exceptional durability, resistance to wear, and long-lasting protection against corrosion, making it ideal for intensive industrial use. With a maximum working pressure of 20 bar, it provides a secure and leak-free connection, supporting both safety and productivity. Its large-diameter free-flow design minimizes energy losses and enhances system efficiency, while the universal compatibility ensures seamless integration with a wide range of pneumatic tools and equipment. This robust and high-performance coupling plug is the perfect solution for professionals seeking reliability, efficiency, and long service life in their compressed air installations.
