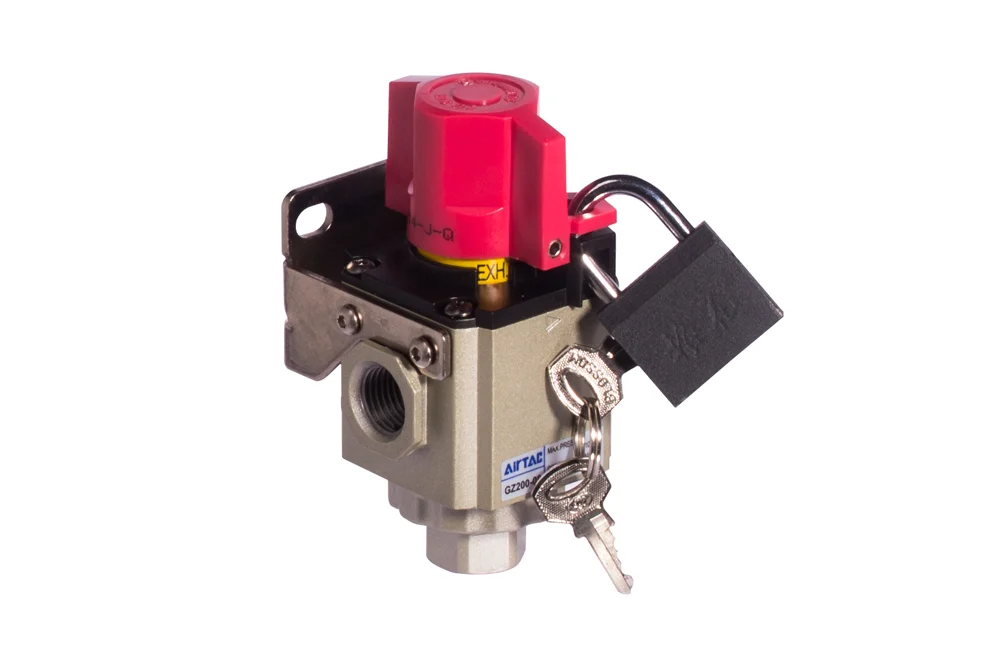

Can the GZ V3V Compressed Air Shut-Off Valve with BSP Female Thread, G Series be locked open or closed during maintenance using the included padlock?

Can the GZ V3V Compressed Air Shut-Off Valve with BSP Female Thread, G Series be locked open or closed during maintenance using the included padlock? Yes. The GZ V3V Compressed Air Shut-Off Valve with BSP Female Thread, G Series includes a secure padlock and two keys plus a holder and mounting bracket, enabling the valve to be locked to prevent unauthorized operation. This allows it to be locked in the closed position for safe maintenance (the valve also automatically vents downstream air when closed). Depending on the valve’s manual control design, the padlock can also be used to lock the valve in the open position if required, providing flexibility for maintenance and operational safety.

Does the GZ V3V Compressed Air Shut-Off Valve with BSP Female Thread, G Series vent automatically when closed to ensure safe maintenance?

Yes. The GZ V3V Compressed Air Shut-Off Valve with BSP Female Thread, G Series vents automatically when closed — it releases the trapped air behind the valve to atmosphere upon shut-off, ensuring the downstream section is depressurized for safe inspection, servicing, or maintenance.

Valve shut-off for compressed air male V3V with thread internal BSP, series G

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	70

Valve shut-off male V3V series G with thread internal BSP serves for separation air supply od parts working installation. Po closing air za valve is bled for atmosphere. especially recommended as protection at works maintenance. W set found angle bracket/A handle assembly, padlock and 2 keys. Do connecting individual element of each other, serve sets connecting GA (shape L, T, U). Size: 200, 300, 400. Connection: 1/8″ BSP female ÷ 1/2″. Supply pressure: up to 10 bar. Operating temperature: up to +70°C. Control: hand.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AT-GZ200-06	Shut-off valve manual GZ200 V3V 1/8	-	-	In stock	Enquiry
AT-GZ200-08	Shut-off valve manual GZ200 V3V 1/4	-	-	In stock	Enquiry
AT-GZ300-08	Shut-off valve manual GZ300 V3V 1/4	-	-	In stock	Enquiry
AT-GZ300-10	Shut-off valve manual GZ300 V3V 3/8	-	-	In stock	Enquiry
AT-GZ300-15	Shut-off valve manual GZ300 V3V 1/2	-	-	In stock	Enquiry
AT-GZ400-10	Shut-off valve manual GZ400 V3V 3/8	-	-	In stock	Enquiry
AT-GZ400-15	Shut-off valve manual GZ400 V3V 1/2	-	-	In stock	Enquiry
