Can the Galvanized Steel Manometer Shut-Off Valve with Male Thread, Type FT 290 / FT 291 withstand continuous operation at 350 bar and temperatures between -20°C and +100°C?

Yes. The Galvanized Steel Manometer Shut-Off Valve with Male Thread, Type FT 290 / FT 291 is rated for continuous operation up to 350 bar and within the temperature range of -20°C to +100°C. It is constructed from galvanized carbon steel with a carbon steel needle, NBR/PTFE seals, and a polyamide 66 knob, providing reliable sealing and durability for prolonged use at those pressures and temperatures. For applications needing greater corrosion resistance, an AISI 316 stainless steel version is available on request.

Is the Galvanized Steel Manometer Shut-Off Valve with Male Thread, Type FT 290 / FT 291 available in AISI 316 stainless steel for increased corrosion resistance?

Yes. The Galvanized Steel Manometer Shut-Off Valve with Male Thread, Type FT 290 / FT 291 is available in AISI 316 stainless steel upon request for increased corrosion resistance. This option provides enhanced durability in aggressive or corrosive environments while retaining the valve’s features: manometer isolation, panel mounting via the thread under the knob, carbon steel needle (or stainless option as requested), NBR/PTFE sealing, 350 bar working pressure, and −20°C to +100°C operating temperature.

Valve pressure-gauge shut-off with thread external, steel galvanized, type FT 290 / FT 291

All products, Manometers reducers and valves/

Additional information

Material	CS – steel (cast iron)
Standard length [m]	10

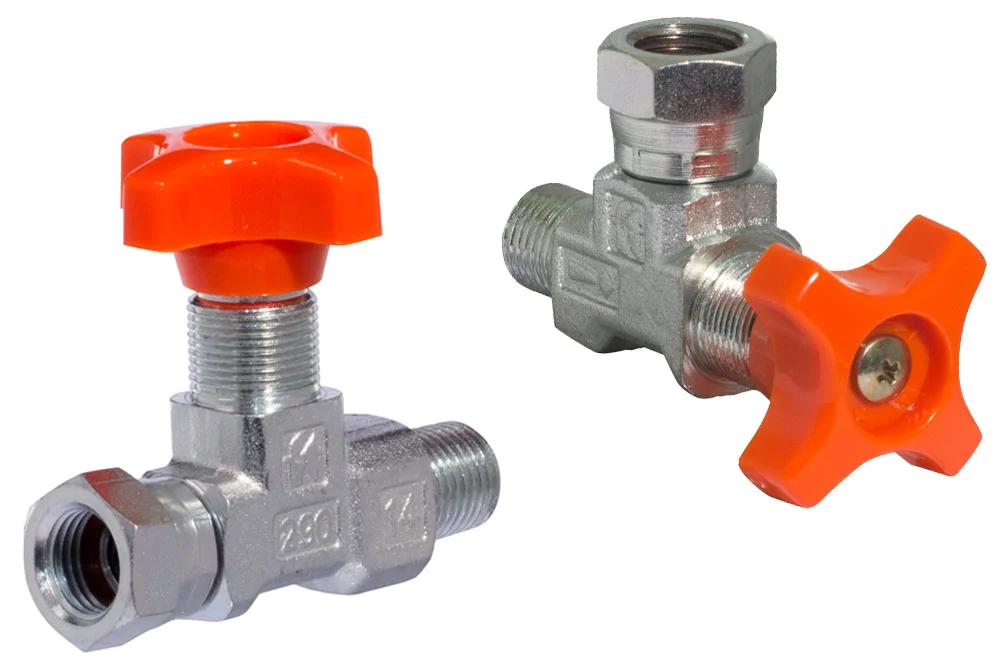

Steel needle valve shut-off with connection under pressure gauge, used in systems hydraulic as element insulating pressure gauge od installation, securing against overload and stroke pressure during opening and enabling replacement. version straight (FT290) and version angled 90° (FT291). possibility mounting panel on the thread under knob. On special order available also in made of steel stainless AISI 316. Material: galvanised carbon steel (body), steel carbon (needle), polyamide 66 (knob). sealing: NBR/PTFE. Working pressure: 350 bar. Operating temperature: od -20°C up to +100°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DC-FT290-04	Shut-off valve FT290 1/4" female pod man./ 1/4" male	-	350	In stock	Enquiry
DC-FT290-08	Pressure-gauge Shut-off valve straight FT290, 1/2" BSP female/ 1/2" BSPT male	-	350	In stock	Enquiry
DC-FT291-04	Shut-off valve FT291 1/4" female pod man./ 1/4" male	-	350	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Steel needle valve shut-off with connection under pressure gauge, used in systems hydraulic as element insulating pressure gauge od installation, securing against overload and stroke pressure during opening and enabling replacement. version straight (FT290) and version angled 90° (FT291). possibility mounting panel on the thread under knob. On special order available also in made of steel stainless AISI 316. Material: galvanised carbon steel (body), steel carbon (needle), polyamide 66 (knob). sealing: NBR/PTFE. Working pressure: 350 bar. Operating temperature: od -20°C up to +100°C.
