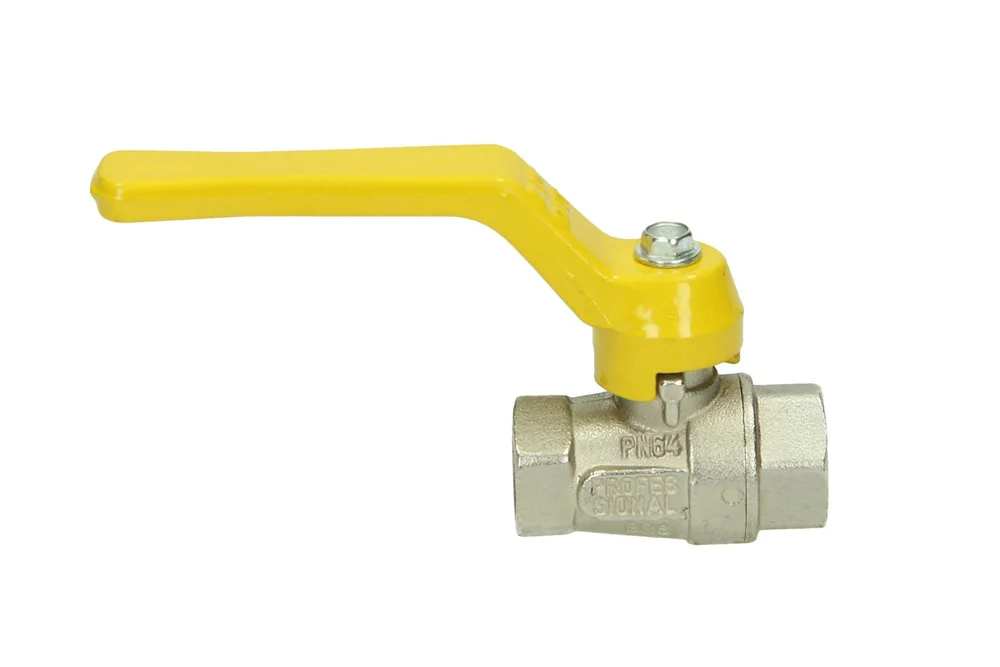

Ball valve for gas with a lever aluminum with a female BSP thread, type 7160
A universal ball valve type 7100 intended for installation gas, in class pressure MOP 5-20. meets requirements the directive PED 2014/68/UE and 2009/142/WE, compliant with the standard EN331 + A1. maximum pressure working fixed in full the scope temperatures use. Body material: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. sealing the ball: PTFE. sealing stem: FKM + NBR. Connection: BSP female. Operating temperature: od -20°C up to +60°C
List of product variants
Do you need a larger quantity of products or a bespoke quote?
A universal ball valve type 7100 intended for installation gas, in class pressure MOP 5-20. meets requirements the directive PED 2014/68/UE and 2009/142/WE, compliant with the standard EN331 + A1. maximum pressure working fixed in full the scope temperatures use. Body material: brass nickel-plated. Material the ball: brass chrome-plated. Material lever: aluminum. sealing the ball: PTFE. sealing stem: FKM + NBR. Connection: BSP female. Operating temperature: od -20°C up to +60°C
Additional information
| Material | B – brass (bronze) |
|---|
