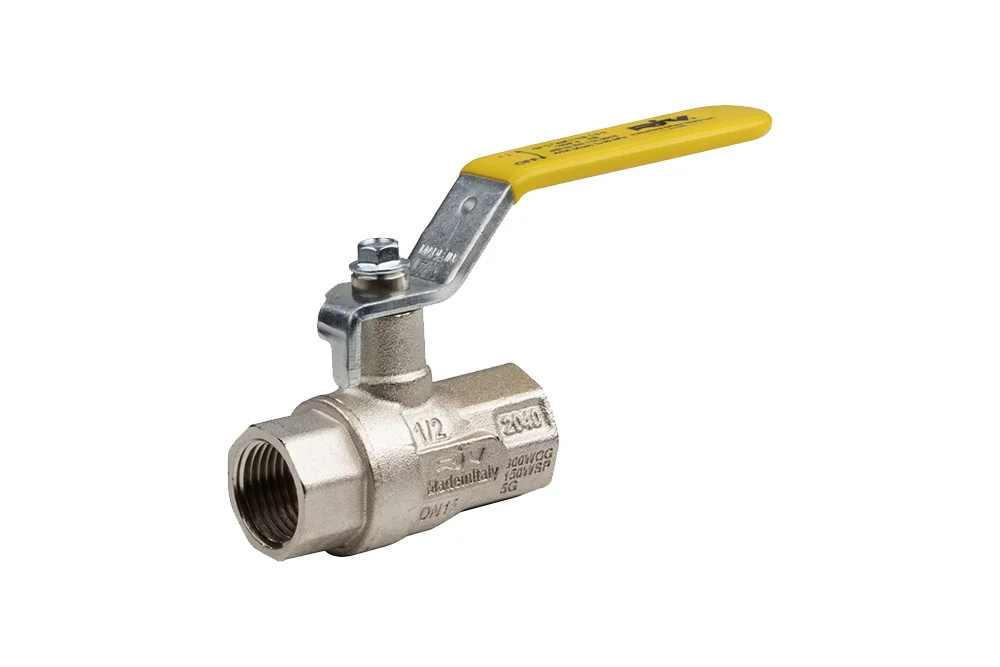

Gas ball valve with steel lever, BSP female thread, type 7163

Additional information

Material

B – brass (bronze)

The universal ball valve type 7163 is a reliable solution designed specifically for gas installations, meeting the demanding requirements of pressure class MOP 5-20. Fully compliant with PED directive 2014/68/EU, directive 2009/142/EC, and manufactured in accordance with EN331 + A1, it guarantees safety, durability, and consistent performance. Engineered to maintain maximum constant working pressure across the entire operating temperature range, this valve ensures dependable functionality even under challenging conditions. The robust body made of nickel-plated brass provides excellent resistance to corrosion, while the chrome-plated brass ball ensures smooth operation and long service life. A sturdy carbon steel lever allows precise control, and the advanced sealing system with PTFE for the ball and FKM + NBR for the stem delivers exceptional tightness and reliability. With BSP threaded connections for easy installation and an operating temperature range from -20°C to +60°C, the valve offers versatility and efficiency for a wide spectrum of applications. Its combination of premium materials, compliance with international standards, and user-friendly design makes it an ideal choice for professionals seeking a high-quality, durable, and safe solution for modern gas systems.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
RV-7163-006Ball valve for gas type 7163 GW BSP 1/4", brass, steel lever-20In stock
Enquiry
RV-7163-010Ball valve for gas type 7163 GW BSP 3/8", brass, steel lever-20In stock
Enquiry
RV-7163-013Ball valve for gas type 7163 GW BSP 1/2", brass, steel lever-20In stock
Enquiry
RV-7163-019Ball valve for gas type 7163 GW BSP 3/4", brass, steel lever-20In stock
Enquiry
RV-7163-025Ball valve for gas type 7163 GW BSP 1", brass, steel lever-20In stock
Enquiry
RV-7163-032Ball valve for gas type 7163 GW BSP 1.1/4", brass, steel lever-20In stock
Enquiry
RV-7163-038Ball valve for gas type 7163 GW BSP 1.1/2", brass, steel lever-20In stock
Enquiry
RV-7163-050Ball valve for gas type 7163 GW BSP 2", brass, steel lever-20In stock
Enquiry
RV-7163-065Ball valve for gas type 7163 GW BSP 2.1/2", brass, steel lever-20In stock
Enquiry
RV-7163-075Ball valve for gas type 7163 GW BSP 3", brass, steel lever-20In stock
Enquiry
RV-7163-100Ball valve for gas type 7163 GW BSP 4", brass, steel lever-20In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

The universal ball valve type 7163 is a reliable solution designed specifically for gas installations, meeting the demanding requirements of pressure class MOP 5-20. Fully compliant with PED directive 2014/68/EU, directive 2009/142/EC, and manufactured in accordance with EN331 + A1, it guarantees safety, durability, and consistent performance. Engineered to maintain maximum constant working pressure across the entire operating temperature range, this valve ensures dependable functionality even under challenging conditions. The robust body made of nickel-plated brass provides excellent resistance to corrosion, while the chrome-plated brass ball ensures smooth operation and long service life. A sturdy carbon steel lever allows precise control, and the advanced sealing system with PTFE for the ball and FKM + NBR for the stem delivers exceptional tightness and reliability. With BSP threaded connections for easy installation and an operating temperature range from -20°C to +60°C, the valve offers versatility and efficiency for a wide spectrum of applications. Its combination of premium materials, compliance with international standards, and user-friendly design makes it an ideal choice for professionals seeking a high-quality, durable, and safe solution for modern gas systems.

Additional information

Material

B – brass (bronze)
