Is the ISO 6150B Quick Coupling Plug with Hose Tail, GROMELLE DN 5.5 compatible with standard 6 mm pneumatic hoses and fittings?

ISO 6150B Quick Coupling Plug with Hose Tail, GROMELLE DN 5.5 is not fully compatible with standard 6 mm pneumatic hoses and fittings without checking the exact inner/outer diameters and thread/connection type. DN 5.5 indicates a nominal diameter close to 5.5 mm, and the hose tail is sized for that diameter, so a 6 mm hose may be a close fit but could be either slightly loose or tight depending on the hose wall thickness. The coupling supports working pressures up to 16 bar and offers high flow (700 l/min at 6 bar), so performance is suitable for typical 6 mm hose applications if a proper seal is ensured. Recommendation: verify the hose's inner diameter and outer diameter at the barbed end and confirm the hose tail dimensions or use a compatible adapter/clamp to ensure a secure, leak-free connection.

Can the ISO 6150B Quick Coupling Plug with Hose Tail, GROMELLE DN 5.5 be used safely in compressed air systems operating at temperatures below -20°C or above +100°C?

No. The ISO 6150B Quick Coupling Plug with Hose Tail, GROMELLE DN 5.5 is specified for reliable operation within the temperature range of −20°C to +100°C. Using it below −20°C or above +100°C would exceed the manufacturer's stated limits and could compromise materials, sealing performance and safe operation in compressed air systems. For applications outside this range, select a coupling rated for those temperatures or consult the manufacturer for suitable alternatives.

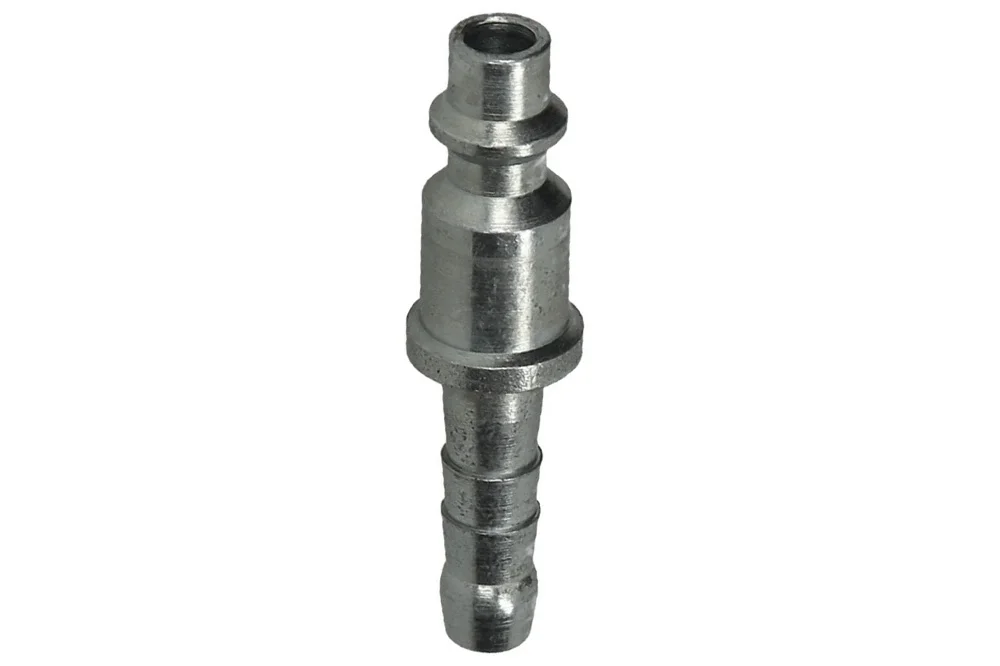

ISO 6150B Quick Coupling Plug with Hose Tail, GROMELLE DN 5.5

All products, General-purpose low-pressure quick couplings/

Additional information

Material	CS – steel (cast iron)

The Gromellee quick coupling plug ISO 6150B DN 5.5 is a high-performance solution designed for demanding pneumatic applications, combining a compact structure with exceptionally low weight for effortless handling and installation. Engineered to operate reliably under a working pressure of up to 16 bar, it ensures consistent performance across a wide temperature range from -20°C to +100°C, making it suitable for diverse industrial environments. With an impressive flow capacity of 700 l/min at Pe = 6 bar and Δp = 0.6 bar, it guarantees efficient air transmission with minimal pressure loss. Crafted from premium materials—nickel-plated brass for the connection and galvanized steel for the plug—it offers outstanding durability, corrosion resistance, and long-lasting reliability. This coupling plug is the ideal choice for professionals seeking a robust, efficient, and easy-to-use component that enhances productivity and ensures seamless operation in pneumatic systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
GR-GA0066701	ISO 6150B quick coupling plug DN5.5, for 10 mm hose, galvanized steel	10	16	In stock	Enquiry
GR-GA0066767	ISO 6150B quick coupling plug DN5.5, for 6 mm hose, galvanized steel	6	16	In stock	Enquiry
GR-GA0066778	ISO 6150B quick coupling plug DN5.5, for 7 mm hose, galvanized steel	6	16	In stock	Enquiry
GR-GA0066789	ISO 6150B quick coupling plug DN5.5, for 8 mm hose, galvanized steel	8	16	In stock	Enquiry
GR-GA0066790	ISO 6150B quick coupling plug DN5.5, for 9 mm hose, galvanized steel	8	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The Gromellee quick coupling plug ISO 6150B DN 5.5 is a high-performance solution designed for demanding pneumatic applications, combining a compact structure with exceptionally low weight for effortless handling and installation. Engineered to operate reliably under a working pressure of up to 16 bar, it ensures consistent performance across a wide temperature range from -20°C to +100°C, making it suitable for diverse industrial environments. With an impressive flow capacity of 700 l/min at Pe = 6 bar and Δp = 0.6 bar, it guarantees efficient air transmission with minimal pressure loss. Crafted from premium materials—nickel-plated brass for the connection and galvanized steel for the plug—it offers outstanding durability, corrosion resistance, and long-lasting reliability. This coupling plug is the ideal choice for professionals seeking a robust, efficient, and easy-to-use component that enhances productivity and ensures seamless operation in pneumatic systems.
