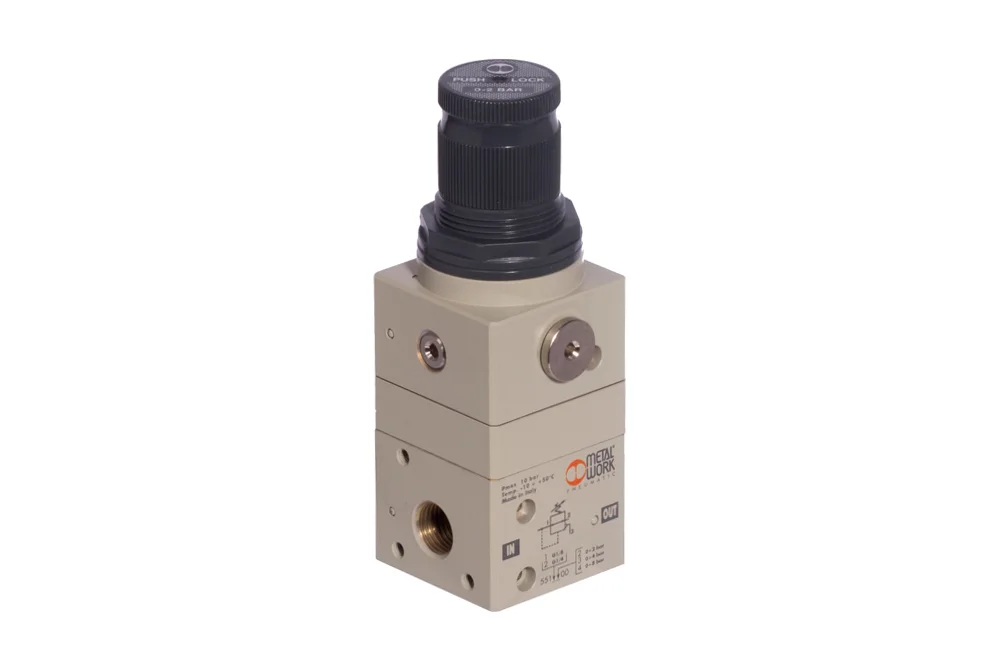

Valve reducing for compressed air precision with thread internal BSP, series GS

Additional information

Maximum operating temperature [°C]

50

Minimum operating temperature [°C]

-10

Standard length [m]

4, 7.5

Precision valve reducing series GS with quick venting, serves for maintaining set pressure on fixed level and fast discharge with the system pneumatic possible surplus pressure. intended for applications demanding high accuracy, e.g. for use with with actuator with reduced a coefficient friction used usually as spring pneumatic o constant characteristics. high Flow rate through valve during aeration and venting the system and high precision settings ensure two identical and opposing valves regulating, separate for the connection supply and output. assembly in installation takes place using brackets assembly or directly, at use holes assembly placed in body valve. range pressure output: 0÷2, 0÷4, 0÷8 bar. Supply pressure: up to 10 bar. medium working: filtered 10 µm compressed air, non-oiled. sensitivity valve trigger: 30 mbar. Operating temperature: od -10°C up to +50°C. Connection: 1/8″ BSP female and 1/4″. additional Connection for pressure gauge: 1/8″ BSP female. Flow rate: 1200 l/min – 1/8″, 1380 l/min – 1/4″ (at an inlet pressure of 6 bar Δp = 1 bar).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
MW-5511200Precyzyjny Reducing valve REG GS 1/8 02--In stock0 €
Enquiry
MW-5511300Precyzyjny Reducing valve REG GS 1/8 04--In stock0 €
Enquiry
MW-5511400Precyzyjny Reducing valve REG GS 1/8 08--In stock0 €
Enquiry
MW-5512200Precyzyjny Reducing valve REG GS 1/4 02--In stock0 €
Enquiry
MW-5512300Precyzyjny Reducing valve REG GS 1/4 04--In stock0 €
Enquiry
MW-5512400Precyzyjny Reducing valve REG GS 1/4-08--In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Precision valve reducing series GS with quick venting, serves for maintaining set pressure on fixed level and fast discharge with the system pneumatic possible surplus pressure. intended for applications demanding high accuracy, e.g. for use with with actuator with reduced a coefficient friction used usually as spring pneumatic o constant characteristics. high Flow rate through valve during aeration and venting the system and high precision settings ensure two identical and opposing valves regulating, separate for the connection supply and output. assembly in installation takes place using brackets assembly or directly, at use holes assembly placed in body valve. range pressure output: 0÷2, 0÷4, 0÷8 bar. Supply pressure: up to 10 bar. medium working: filtered 10 µm compressed air, non-oiled. sensitivity valve trigger: 30 mbar. Operating temperature: od -10°C up to +50°C. Connection: 1/8″ BSP female and 1/4″. additional Connection for pressure gauge: 1/8″ BSP female. Flow rate: 1200 l/min – 1/8″, 1380 l/min – 1/4″ (at an inlet pressure of 6 bar Δp = 1 bar).
