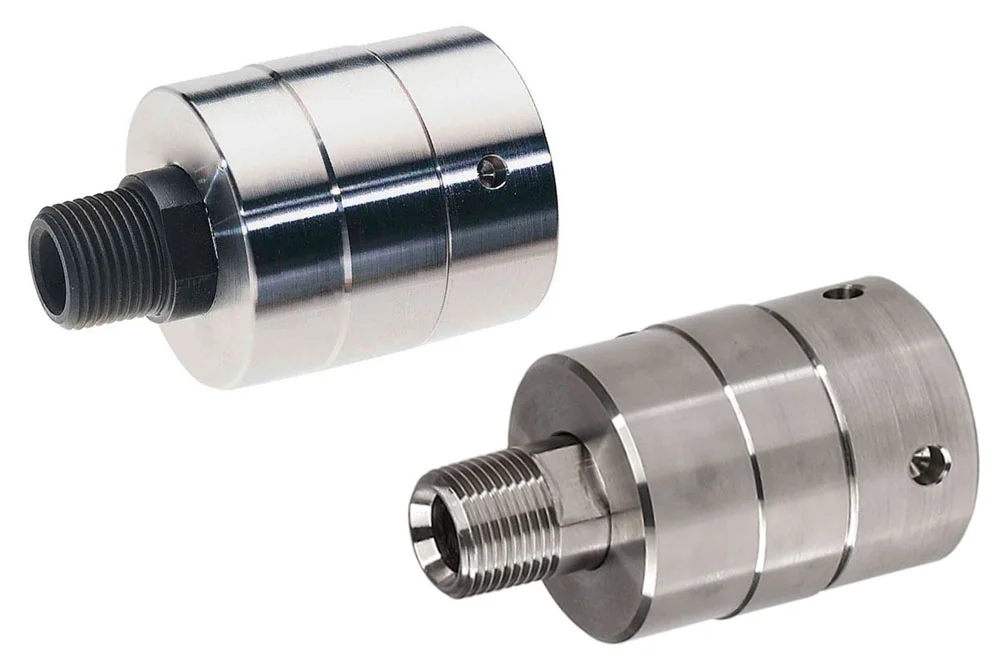

Swivel coupling GT with a female BSP thread/BSPT male, steel nickel-plated or steel stainless, type 1800SR

Additional information

Material

CS – steel (cast iron)

Swivel coupling type 1800 SR intended for connections rigid or flexible lines, everywhere tam, where occurs movement swivel or oscillations between individual parts installation. Material: steel nickel-plated or steel AISI 316L. sealing: NBR, Viton, teflon. Operating temperature: up to +150°C (up to +120°C for steel AISI 316L). Connection: BSP female, BSPT male. rotation: free, swing. Working pressure: from 75 bar to 350 bar – depending on the coupling size and kinds steel.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
GT-1813-SR-ICoupling swivel 1813 SRI 1/4", AISI 316L-175In stock0 €
Enquiry
GT-1813-SR-KCoupling swivel 1813 SRK 1/4" nickel-plated steel-350In stock0 €
Enquiry
GT-1817-SR-ICoupling swivel 1817 SRI 3/8", AISI 316L-175In stock0 €
Enquiry
GT-1817-SR-KCoupling swivel 1817 SRK 3/8" nickel-plated steel-350In stock0 €
Enquiry
GT-1821-SR-ICoupling swivel 1821 SRI 1/2", AISI 316L-150In stock0 €
Enquiry
GT-1821-SR-KCoupling swivel 1821 SRK 1/2" nickel-plated steel-300In stock0 €
Enquiry
GT-1827-SR-ICoupling swivel 1827 SRI 3/4", AISI 316L-150In stock0 €
Enquiry
GT-1827-SR-KCoupling swivel 1827 SRK 3/4" nickel-plated steel-300In stock0 €
Enquiry
GT-1834-SR-ICoupling swivel 1834 SRI 1", AISI 316L-125In stock0 €
Enquiry
GT-1834-SR-KCoupling swivel 1834 SRK 1" nickel-plated steel-250In stock0 €
Enquiry
GT-1842-SR-ICoupling swivel 1842 SRI 1.1/4", AISI 316L-125In stock0 €
Enquiry
GT-1842-SR-KCoupling swivel 1842 SRK 1.1/4" nickel-plated steel-250In stock0 €
Enquiry
GT-1849-SR-ICoupling swivel 1849 SRI 1.1/2", AISI 316L-100In stock0 €
Enquiry
GT-1849-SR-KCoupling swivel 1849 SRK 1.1/2" nickel-plated steel-200In stock0 €
Enquiry
GT-1860-SR-ICoupling swivel 1860 SRI 2", AISI 316L-100In stock0 €
Enquiry
GT-1860-SR-KCoupling swivel 1860 SRK 2" nickel-plated steel-200In stock0 €
Enquiry
GT-1876-SR-ICoupling swivel 1876 SRI 2.1/2", AISI 316L-75In stock0 €
Enquiry
GT-1876-SR-KCoupling swivel 1876 SRK 2.1/2" nickel-plated steel-150In stock0 €
Enquiry
GT-1890-SR-ICoupling swivel 1890 SRI 3", AISI 316L-75In stock0 €
Enquiry
GT-1890-SR-KCoupling swivel 1890 SRK 3" nickel-plated steel-150In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Swivel coupling type 1800 SR intended for connections rigid or flexible lines, everywhere tam, where occurs movement swivel or oscillations between individual parts installation. Material: steel nickel-plated or steel AISI 316L. sealing: NBR, Viton, teflon. Operating temperature: up to +150°C (up to +120°C for steel AISI 316L). Connection: BSP female, BSPT male. rotation: free, swing. Working pressure: from 75 bar to 350 bar – depending on the coupling size and kinds steel.

Additional information

Material

CS – steel (cast iron)

Do you need a larger quantity of products or a bespoke quote?
