Is the Stainless Steel Two-Way Ball Valve with BSP Female Thread, H-6810 available with pneumatic actuation and what are the required supply specifications?

Yes. The Stainless Steel Two-Way Ball Valve with BSP Female Thread, H-6810 is available with pneumatic actuation. Required supply specifications: clean, dry, oil-free compressed air (or suitable inert gas) at typical control pressure 4–8 bar (standard 5–6 bar recommended) and an appropriate flow capacity to operate the actuator (actuator-specific consumption; confirm with actuator model). Supply should be filtered (5 µm or better) and regulated; lubricator not normally required if air is oil-free. Ensure actuator mounting and porting conform to valve interface (ISO mounting/port pattern) and provide correct pneumatic connections and control signal (single-acting spring-return vs. double-acting as specified). For safety and compatibility, verify actuator material and seals for process temperature range (-34°C to +210°C) and maximum system pressure class (206 bar or 413 bar versions where applicable).

Can the Stainless Steel Two-Way Ball Valve with BSP Female Thread, H-6810 be supplied with PEEK or PCTFE seats for extreme temperature or chemical compatibility?

Yes. The Stainless Steel Two-Way Ball Valve with BSP Female Thread, H-6810 can be supplied with PEEK or PCTFE seats for enhanced chemical compatibility and extended temperature performance. Standard seats are modified PTFE, but PCTFE or PEEK options are available to support operating pressures up to 206 bar and temperatures from −34°C to +210°C, providing better resistance in extreme temperature or aggressive chemical environments.

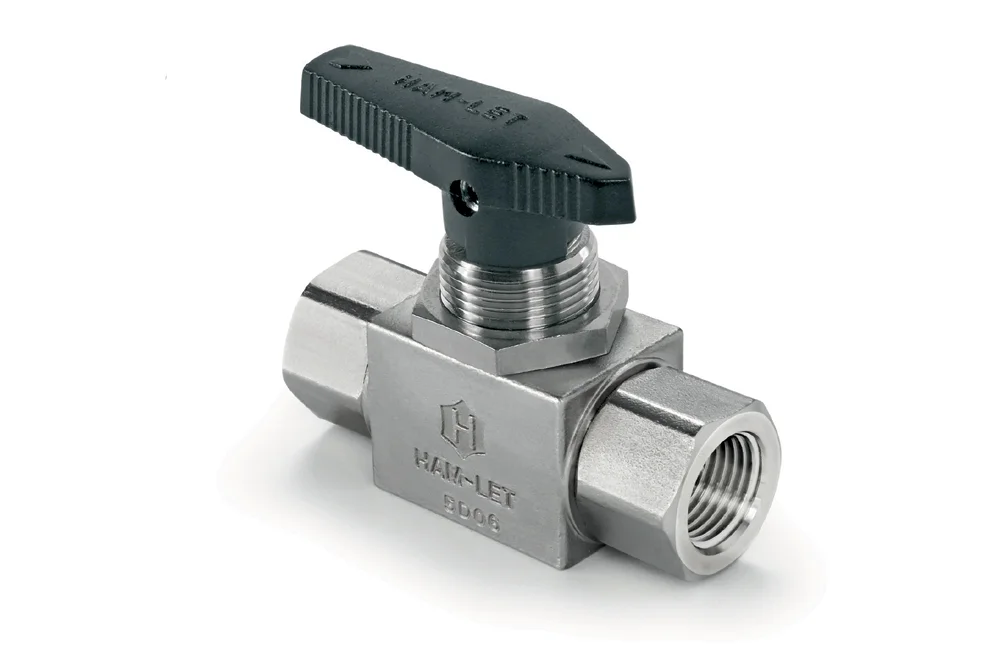

Ball valve two-way with a female BSP thread, steel stainless, H-6810

All products, Straight screw connection/

Additional information

Material	SS – stainless steel

High quality high-pressure ball valve two-way closing intended for fittings precision ( instrumentation ) for industry chemical, petrochemical, pharmaceutical, power generation, process engineering – for liquids and for gases. intended for mounting in-line or panel. valve is characterized high tightness closing (permissible leakage internal through sealing the ball 0.1 Ncm 3 /min), high durable and low torque swivel. each valve is tested pressure nitrogen. Certified according to ISO 15848-1:2006 (E). available valves with drive pneumatic. occurs in two versions pressure: o maximum pressure working appropriate 206 bar and 413 bar. Body material: AISI 316 steel (ASTM A351 CF8M, cast) – for version 206 bar; steel AISI 316 (ASTM A-276, forging) – for version 413 bar. Dla version low-pressure (206 bar) available is made with brass. Material the ball: steel AISI 316. Material lever: nylon, insert with brass; lever valve standard in color black (available other color, lever metal, lever with padlock ISLT). sealing the ball and stem: modified PTFE (option PCTFE, PEEK). pressure working (dependent od temperatures / material seal – see chart): up to 206 bar (modified PTFE). temperature use (dependent od material seal – see chart): od -34°C up to +210°C (modified PTFE). Connection: BSP female. notes! The ball valves are designed to work in a completely open or completely closed position. valves have factory adjusted sealing gland for pressure 70 bar. Due to varied conditions use, can be required periodic regulation seal using screws seal stem (po removal lever). recommended is initial regulation against starting installation through tightening screws seal o 1/8 for 1/4 turn.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HM-H6810-SS-G-04-CSS	Valve ball 2 x 1/4" BSP female, seal PCTFE, SS	5	413	In stock	Enquiry
HM-H6810-SS-G-04-PSS	Valve ball 2 x 1/4" BSP female, seal modified PTFE, SS	5	206	In stock	Enquiry
HM-H6810-SS-G-06-CSS	Valve ball 2 x 3/8" BSP female, seal PCTFE, SS	5	413	In stock	Enquiry
HM-H6810-SS-G-06-PSS	Valve ball 2 x 3/8" BSP female, seal modified PTFE, SS	5	206	In stock	Enquiry
HM-H6810-SS-G-08-CSS	Valve ball 2 x 1/2" BSP female, seal PCTFE, SS	10	413	In stock	Enquiry
HM-H6810-SS-G-08-PSS	Valve ball 2 x 1/2" BSP female, seal modified PTFE, SS	10	206	In stock	Enquiry
HM-H6810-SS-G-12-CSS	Valve ball 2 x 3/4" BSP female, seal PCTFE, SS	10	413	In stock	Enquiry
HM-H6810-SS-G-12-PSS	Valve ball 2 x 3/4" BSP female, seal modified PTFE, SS	10	206	In stock	Enquiry
