Is the LET-LOK® 2-Part Stainless Steel Ball Valve, Metric Connection H-700 suitable for both liquid and gas service and compatible with temperatures from -42°C to +204°C?

Yes. The LET-LOK® 2-Part Stainless Steel Ball Valve, Metric Connection H-700 is suitable for both liquid and gas service and is compatible with temperatures from -42°C to +204°C. It features AISI 316 stainless steel body, ball and stem, modified PTFE ball seals and PTFE stem seals, tight shut-off (max internal leakage 0.1 Ncm³/min), nitrogen pressure testing and ISO 15848-1:2006 (E) certification, and a working pressure up to 137 bar, making it appropriate for demanding liquid and gas applications across the stated temperature range.

Does the LET-LOK® 2-Part Stainless Steel Ball Valve, Metric Connection H-700 meet ISO 15848-1:2006 (E) certification and undergo nitrogen pressure testing?

Yes. The LET-LOK® 2-Part Stainless Steel Ball Valve, Metric Connection H-700 is certified to ISO 15848-1:2006 (E) and each unit undergoes nitrogen pressure testing.

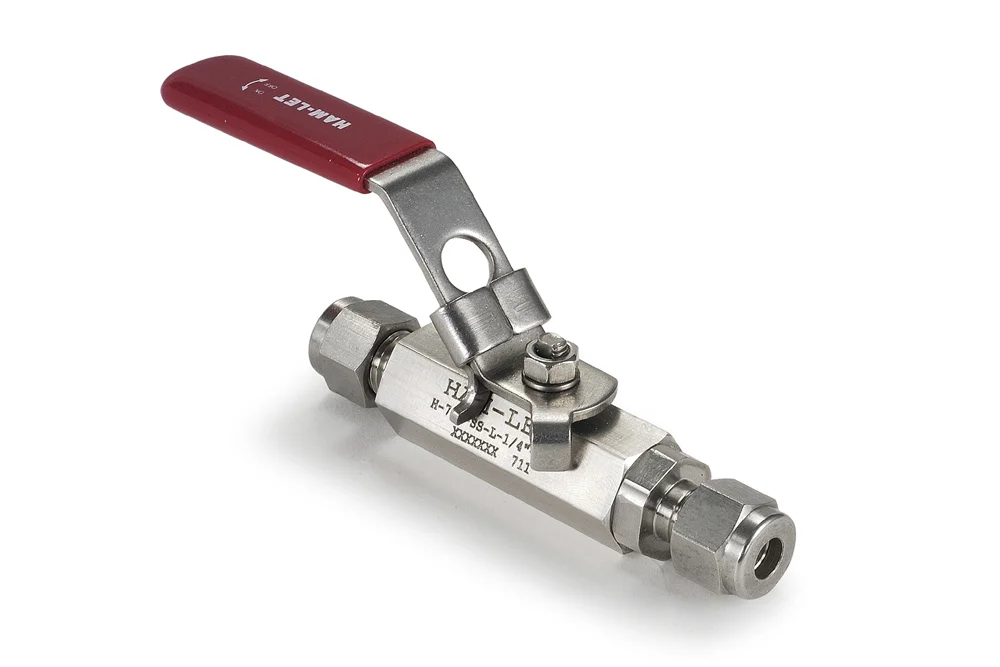

Ball valve 2-piece with connection metric LET-LOK® steel stainless, H-700

All products, Straight screw connection/

Additional information

Material	SS – stainless steel

A compact, two-piece medium-pressure ball valve intended for demanding applications general. It can be used for fittings precision ( instrumentation ) for industry chemical, petrochemical, pharmaceutical, power generation, process engineering – for liquids and for gases. intended for mounting in-line. valve is characterized high range size for ensuring appropriate large flow, tightness closing (permissible leakage internal through sealing the ball 0.1 Ncm 3 /min), high durable and low torque swivel. designed for use in position completely open or completely closed. each valve is tested pressure nitrogen. Certified according to ISO 15848-1:2006 (E). Body material: AISI 316 steel. Material the ball and stem: steel AISI 316. Material lever: steel AISI 304, PVC. sealing the ball: modified PTFE. sealing stem: PTFE. Operating temperature: od -42°C up to +204°C. Working pressure: up to 137 bar (depending od temperatures). Connection: metric LET-LOK®.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HM-H700-SS-LM-06-TLD	Valve ball 2-piece, 2 x LL 6 mm, seal modified PTFE, SS	5	135	In stock	Enquiry
HM-H700-SS-LM-08-TLD	Valve ball 2-piece, 2 x LL 8 mm, seal modified PTFE, SS	6	135	In stock	Enquiry
HM-H700-SS-LM-10-TLD	Valve ball 2-piece, 2 x LL 10 mm, seal modified PTFE, SS	10	135	In stock	Enquiry
HM-H700-SS-LM-12-TLD	Valve ball 2-piece, 2 x LL 12 mm, seal modified PTFE, SS	12	135	In stock	Enquiry
HM-H700-SS-LM-14-TLD	Valve ball 2-piece, 2 x LL 14 mm, seal modified PTFE, SS	14	135	In stock	Enquiry
HM-H700-SS-LM-15-TLD	Valve ball 2-piece, 2 x LL 15 mm, seal modified PTFE, SS	16	135	In stock	Enquiry
HM-H700-SS-LM-18-TLD	Valve ball 2-piece, 2 x LL 18 mm, seal modified PTFE, SS	18	135	In stock	Enquiry
HM-H700-SS-LM-25-TLD	Valve ball 2-piece, 2 x LL 25 mm, seal modified PTFE, SS	25	135	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A compact, two-piece medium-pressure ball valve intended for demanding applications general. It can be used for fittings precision ( instrumentation ) for industry chemical, petrochemical, pharmaceutical, power generation, process engineering – for liquids and for gases. intended for mounting in-line. valve is characterized high range size for ensuring appropriate large flow, tightness closing (permissible leakage internal through sealing the ball 0.1 Ncm 3 /min), high durable and low torque swivel. designed for use in position completely open or completely closed. each valve is tested pressure nitrogen. Certified according to ISO 15848-1:2006 (E). Body material: AISI 316 steel. Material the ball and stem: steel AISI 316. Material lever: steel AISI 304, PVC. sealing the ball: modified PTFE. sealing stem: PTFE. Operating temperature: od -42°C up to +204°C. Working pressure: up to 137 bar (depending od temperatures). Connection: metric LET-LOK®.
