Is the HANSEN BEVERAGE 90° Quick Coupling Socket with Hose End available in separate gas (2HG) and liquid (2HL) versions to prevent cross-connection?

Yes. The HANSEN BEVERAGE 90° Quick Coupling Socket with Hose End is available in two dedicated versions—type 2HG for gases and type 2HL for liquids—to prevent cross-connection. Each version has distinct plug diameters to eliminate incorrect mating. For easy visual identification, gas couplings have a white identification ring on the socket and a notched hexagon on the plug, while liquid couplings have a black identification ring and a smooth hexagon. Both versions are rated to 15 bar working pressure and up to +130°C.

Can the HANSEN BEVERAGE 90° Quick Coupling Socket with Hose End be used with standard beverage fittings and hoses from other manufacturers?

Yes — the HANSEN BEVERAGE 90° Quick Coupling Socket with Hose End can be used with standard beverage fittings and hoses from other manufacturers, provided they match the coupling type and dimensions. Important considerations: - Use the correct dedicated version: type 2HG (gases) must only mate with 2HG plugs; type 2HL (liquids) only with 2HL plugs. The plug diameters differ to prevent cross-connection. - Confirm mechanical compatibility: mating plugs and hose fittings must match the HANSEN coupling’s dimensions and sealing surfaces. - Pressure and temperature ratings: ensure the other manufacturer’s components are rated for up to 15 bar and up to +130°C to maintain safe, reliable operation. - Identification and safety: rely on the coupling’s visual markers (white ring/notched hexagon for gas, black ring/smooth hexagon for liquid) to avoid mismatches. If in doubt, verify the exact plug/hose specifications with the other manufacturer or HANSEN to ensure a secure, compliant connection.

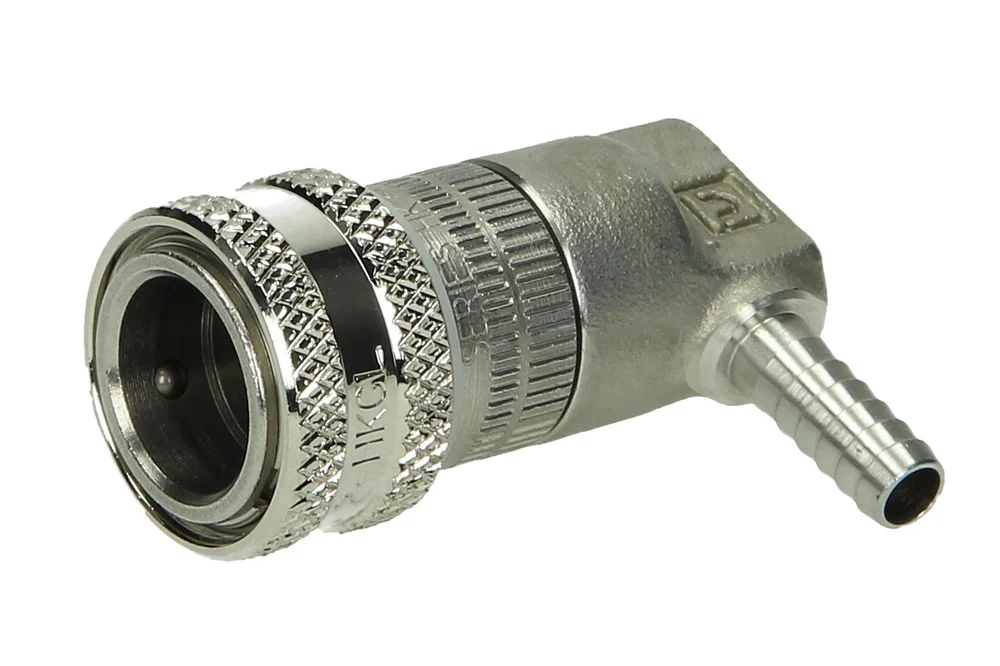

Socket quick coupling 90&deg, with A fitting for hose, HANSEN BEVERAGE

Additional information

Material	SS – stainless steel

Socket 90° quick coupling Hansen Beverage with fitting for hose. coupling available in two versions: for gases type 2HG and for liquids type 2HL. versions te not are interchangeable of each other (different Diameter plug), co allows on avoiding mistakes in connection. Recognizing version is very easy. Dla fittings for gases ring identification on in the socket is white, a hexagon on plug has a notch. Dla fittings for liquids ring identification on in the socket is black, a hexagon on plug not has a notch. Working pressure: 15 bar. Operating temperature: up to +130°C.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
HB-2HGRB	Socket 2HG 1/4" 90° with Fitting for hose 1/4"	6	15	In stock	0 €		Enquiry
HB-2HLRB	Socket 2HL 1/4" 90° with Fitting for hose 1/4"	6	15	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Socket 90° quick coupling Hansen Beverage with fitting for hose. coupling available in two versions: for gases type 2HG and for liquids type 2HL. versions te not are interchangeable of each other (different Diameter plug), co allows on avoiding mistakes in connection. Recognizing version is very easy. Dla fittings for gases ring identification on in the socket is white, a hexagon on plug has a notch. Dla fittings for liquids ring identification on in the socket is black, a hexagon on plug not has a notch. Working pressure: 15 bar. Operating temperature: up to +130°C.
