Is the HANSEN BEVERAGE UNF GZ Quick-Connect Socket with Valve available in both gas (2HG) and liquid (2HL) versions to prevent incorrect connections?

Yes. The HANSEN BEVERAGE UNF GZ Quick-Connect Socket with Valve is available in two dedicated versions—type 2HG for gases and type 2HL for liquids—to prevent incorrect connections. They have different plug diameters to eliminate mismating, plus clear visual IDs: gas couplings have a white identification ring on the socket and a notched hexagon on the plug; liquid couplings have a black identification ring and a smooth hexagon. Both versions work at 15 bar and withstand temperatures up to +130°C.

What materials are used in the HANSEN BEVERAGE UNF GZ Quick-Connect Socket with Valve to ensure durability at up to 15 bar and +130°C?

HANSEN BEVERAGE UNF GZ Quick-Connect Socket with Valve components are made from durable, food-safe materials suited for 15 bar and up to +130°C operation: - Body and valve housing: high-grade stainless steel (corrosion-resistant, hygienic) - Internal valve components and seals: high-performance elastomers (e.g., EPDM or FKM) compatible with beverages and high temperatures - Internal moving parts (spindles/springs): stainless steel for strength and corrosion resistance - Identification rings and non-structural marks: temperature-resistant polymer or thermoplastic These materials provide mechanical strength, chemical compatibility and temperature resistance required for professional beverage systems.

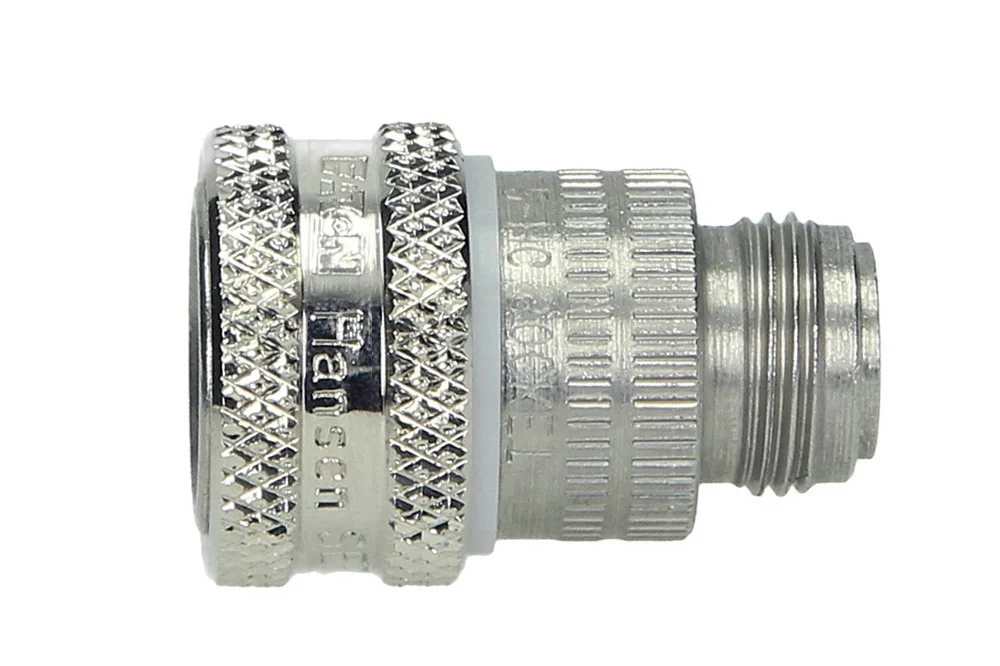

HANSEN BEVERAGE UNF GZ Quick-Connect Socket with Valve

Additional information

Material	SS – stainless steel

The Hansen Beverage quick coupling socket with external thread valve UNF 11/16″-18 is a reliable and efficient solution designed for professional beverage systems. Available in two dedicated versions, type 2HG for gases and type 2HL for liquids, the couplings ensure maximum safety and precision by eliminating the risk of incorrect connections thanks to their different plug diameters. Clear visual identification further enhances ease of use: gas couplings feature a white identification ring on the socket and a notched hexagon on the plug, while liquid couplings are marked with a black identification ring and a smooth hexagon. Built to perform under demanding conditions, the couplings operate at a working pressure of 15 bar and withstand temperatures up to +130°C, guaranteeing durability and consistent performance. This makes them an ideal choice for applications requiring secure, hygienic, and user-friendly connections in beverage dispensing systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
HB-LN2HGB	2HG socket 1/4" without connection, with valve	-	15	In stock	0 €		Enquiry
HB-LN2HLB	2HL socket 1/4" without connection, with valve	-	15	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The Hansen Beverage quick coupling socket with external thread valve UNF 11/16″-18 is a reliable and efficient solution designed for professional beverage systems. Available in two dedicated versions, type 2HG for gases and type 2HL for liquids, the couplings ensure maximum safety and precision by eliminating the risk of incorrect connections thanks to their different plug diameters. Clear visual identification further enhances ease of use: gas couplings feature a white identification ring on the socket and a notched hexagon on the plug, while liquid couplings are marked with a black identification ring and a smooth hexagon. Built to perform under demanding conditions, the couplings operate at a working pressure of 15 bar and withstand temperatures up to +130°C, guaranteeing durability and consistent performance. This makes them an ideal choice for applications requiring secure, hygienic, and user-friendly connections in beverage dispensing systems.
