Is the Heavy Duty DIN 3015 Clamp Bottom Plate suitable for welding onto AISI 316L structures in offshore environments?

Yes. The Heavy Duty DIN 3015 Clamp Bottom Plate Format made from AISI 316L stainless steel is suitable for welding onto AISI 316L structures in offshore environments. AISI 316L offers excellent corrosion resistance, particularly against chloride-induced corrosion and pitting common in marine and offshore conditions, and its low carbon content reduces sensitization during welding. Because the part is manufactured in AISI 316L, metallurgical compatibility with the base structure minimizes galvanic and weld-related issues. Key considerations for reliable performance: - Use appropriate welding procedures (e.g., TIG/MIG with matching 316L filler) and control heat input to avoid carbide precipitation. - Apply proper joint preparation and post-weld treatments if required by the application (e.g., solution annealing or electrochemical passivation) to restore passive film and maximize corrosion resistance. - Ensure qualified welders and adherence to relevant standards and offshore welding codes. When these practices are followed, the Heavy Duty DIN 3015 Clamp Bottom Plate Format AISI 316L will provide durable, corrosion-resistant welds suitable for demanding offshore service.

Can the Heavy Duty DIN 3015 Clamp Bottom Plate be welded to carbon steel structures without compromising corrosion resistance in marine environments?

Yes — the Heavy Duty DIN 3015 Clamp Bottom Plate can be welded to carbon steel structures, but corrosion performance in marine environments depends on material choice and joint treatment. Key points: - If the Bottom Plate is the carbon steel version and welded to carbon steel, weldability is straightforward and structural integrity is maintained. However, plain carbon steel lacks inherent marine corrosion resistance; without proper surface protection (coatings, primers, paint, cathodic protection), the welded area will be vulnerable to accelerated corrosion in seawater and splash zones. - If corrosion resistance in marine conditions is required, specify the AISI 316L stainless steel Bottom Plate. Welding 316L to carbon steel requires appropriate procedures (isolation layers, transition pieces, or careful selection of filler metals) because direct dissimilar-metal welds can create galvanic or corrosion-prone zones. Using a stainless steel backing or a bi-metallic transition insert, or welding the clamp to a stainless-steel pad welded onto the carbon structure, mitigates these risks. - Post-weld treatments are essential: apply corrosion-resistant coatings to exposed carbon-steel welds, ensure proper weld passivation for stainless areas, inspect for crevices and remove heat-affected-zone contaminants, and consider sacrificial anodes or protective systems for long-term marine service. Recommendation: For marine use, favour the AISI 316L Bottom Plate or use a stainless transition strategy plus rigorous coating and maintenance to preserve corrosion resistance after welding.

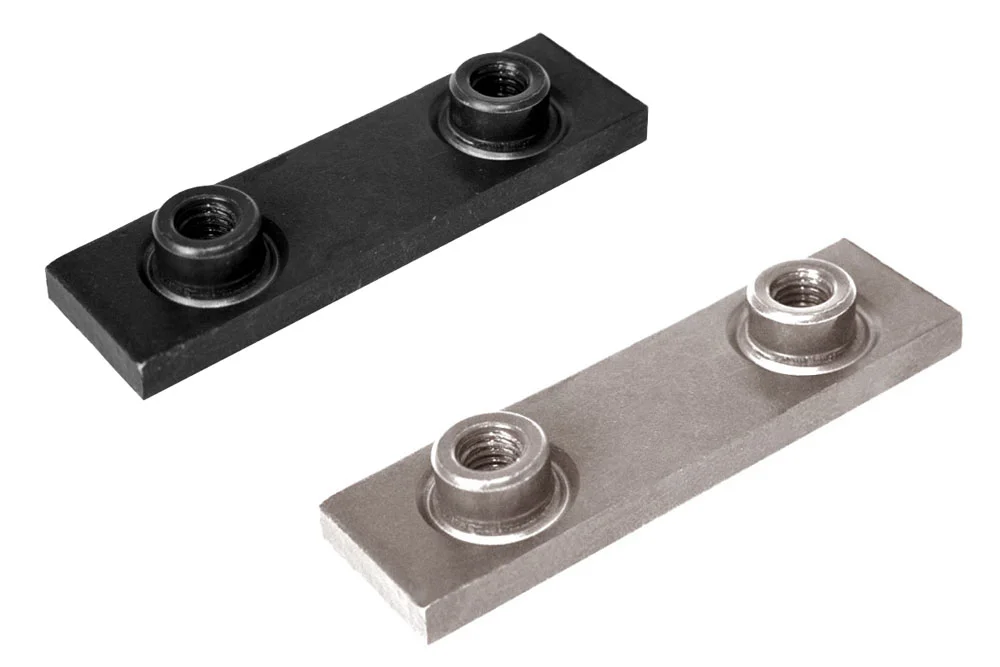

Heavy Duty DIN 3015 Clamp Bottom Plate

All products, Clamps for hydraulic pipes/

Additional information

Material	CS – steel (cast iron)

The short bottom plate for welding is designed to ensure secure and reliable assembly of heavy complete DIN 3015 clamp type 201 systems. Manufactured from robust carbon steel or premium AISI 316L stainless steel, it delivers outstanding durability, resistance to wear, and long-lasting performance even in demanding industrial environments. Its precise construction guarantees a stable foundation for clamp installation, supporting heavy-duty applications where strength and safety are essential. Easy to integrate into welding processes, this bottom plate enhances efficiency and minimizes downtime, making it an ideal choice for industries such as oil and gas, chemical processing, shipbuilding, and heavy machinery. By combining high-quality materials with proven functionality, it provides a dependable solution that optimizes both installation reliability and operational performance.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TC-APINP-1	Bottom plate heavy duty thickness 1	-	-	In stock	Enquiry
TC-APINP-1-SS	Bottom plate heavy duty thickness 1, AISI 316L	-	-	In stock	Enquiry
TC-APINP-2	Bottom plate heavy duty thickness 2	-	-	In stock	Enquiry
TC-APINP-2-SS	Bottom plate heavy duty thickness 2, AISI 316L	-	-	In stock	Enquiry
TC-APINP-3	Bottom plate heavy duty thickness 3	-	-	In stock	Enquiry
TC-APINP-3-SS	Bottom plate heavy duty thickness 3, AISI 316L	-	-	In stock	Enquiry
TC-APINP-4	Bottom plate heavy duty thickness 4	-	-	In stock	Enquiry
TC-APINP-4-SS	Bottom plate heavy duty thickness 4, AISI 316L	-	-	In stock	Enquiry
TC-APINP-5	Bottom plate heavy duty thickness 5	-	-	In stock	Enquiry
TC-APINP-5-SS	Bottom plate heavy duty thickness 5, AISI 316L	-	-	In stock	Enquiry
TC-APINP-6	Bottom plate heavy 6 mm thick	-	-	In stock	Enquiry
TC-APINP-6-SS	Bottom plate heavy duty thickness 6, AISI 316L	-	-	In stock	Enquiry
TC-APINP-7	Bottom plate heavy duty thickness 7	-	-	In stock	Enquiry
TC-APINP-8	Bottom plate heavy duty thickness 8	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The short bottom plate for welding is designed to ensure secure and reliable assembly of heavy complete DIN 3015 clamp type 201 systems. Manufactured from robust carbon steel or premium AISI 316L stainless steel, it delivers outstanding durability, resistance to wear, and long-lasting performance even in demanding industrial environments. Its precise construction guarantees a stable foundation for clamp installation, supporting heavy-duty applications where strength and safety are essential. Easy to integrate into welding processes, this bottom plate enhances efficiency and minimizes downtime, making it an ideal choice for industries such as oil and gas, chemical processing, shipbuilding, and heavy machinery. By combining high-quality materials with proven functionality, it provides a dependable solution that optimizes both installation reliability and operational performance.
