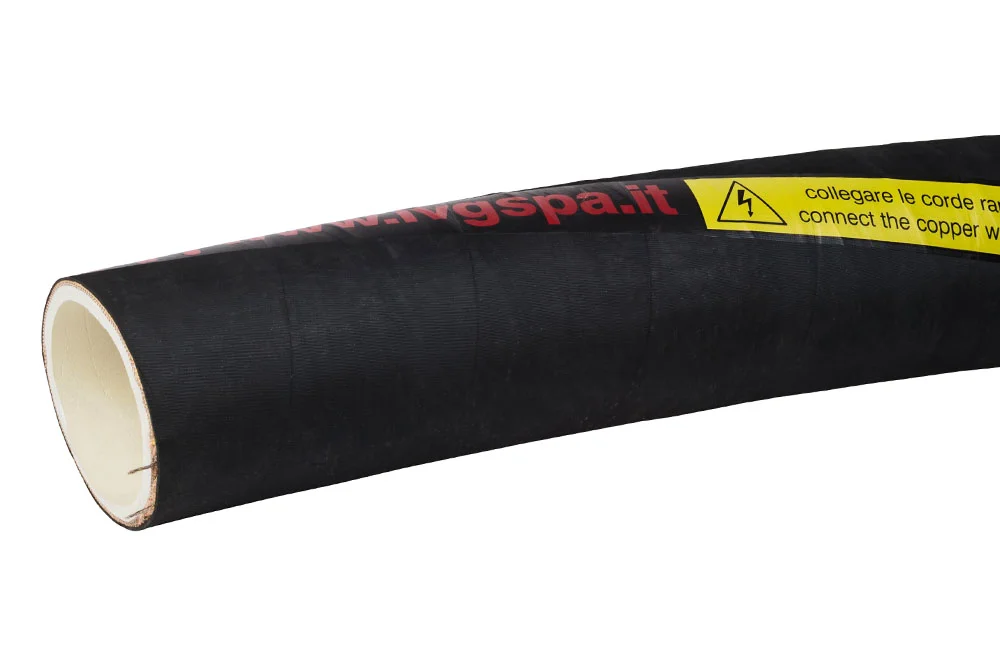

DON® BN 6 & BN 8 (SPECIAL) – Heavy-Duty Hose for Dry Food Transfer

Additional information

Material

SBR/NR – a mixture of SBR and NR rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

100, 25, 60

Reinforcement

synthetic braid

This high-performance suction hose is engineered for pneumatic transport of dry, abrasive materials, ensuring durability, safety, and compliance with the strictest food industry standards. Its smooth, white inner layer made of abrasion-resistant NR/SBR rubber guarantees minimal wear (≤110±5 mm³ according to ISO 4649) while remaining phthalate-free, food-grade, and fully compliant with FDA 21 CFR 177.2600 and BfR XXI category 4, making it ideal for direct contact with dry food products. Reinforced with a robust synthetic cord and equipped with two integrated copper wires to safely dissipate static electricity when grounded, the hose provides reliable protection during intensive operations. The outer layer, crafted from black EPDM rubber, is electrically conductive and resistant to ozone and weather conditions, ensuring long-lasting performance even in demanding environments. Perfect for transporting grains, sugar, powders, feeds, granules, or PVC pellets requiring a non-staining inner surface, this hose is available in two versions: BN Standard with 6 bar working pressure and BN Special with 8 bar. Offered in standard lengths of 60 m (with 120 m available on request), it operates efficiently in a wide temperature range from -30°C to +70°C, delivering a versatile and dependable solution for industries seeking maximum hygiene, safety, and resistance in pneumatic conveying systems.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-DON-BN-051X067Hose DON/BN 6 bar 51x67 mm506In stock
Enquiry
IV-DON-BN-076X094Hose DON/BN 6 bar 76x94 mm756In stock
Enquiry
IV-DON-BN-080X100Hose DON/BN 6 bar 80x100 mm806In stock
Enquiry
IV-DON-BN-090X108Hose DON/BN 6 bar 90x108 mm906In stock
Enquiry
IV-DON-BN-102X120Hose DON/BN 6 bar 102x120 mm1006In stock
Enquiry
IV-DON-BN-110X125Hose DON/BN 6 bar 110x125 mm1106In stock
Enquiry
IV-DON-BNS-038Hose DON/BN SPEC 8 bar 38x56 mm388In stock
Enquiry
IV-DON-BNS-051Hose DON/BN SPEC 8 bar 51x69 mm508In stock
Enquiry
IV-DON-BNS-075Hose DON/BN SPEC 8 bar 75x95 mm808In stock
Enquiry
IV-DON-BNS-080Hose DON/BN SPEC 8 bar 80x102 mm808In stock
Enquiry
IV-DON-BNS-090Hose DON/BN SPEC 8 bar 90x112 mm908In stock
Enquiry
IV-DON-BNS-102Hose DON/BN SPEC 8 bar 102x125 mm1008In stock
Enquiry
IV-DON-BNS-110Hose DON/BN SPEC 8 bar 110x130 mm1108In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This high-performance suction hose is engineered for pneumatic transport of dry, abrasive materials, ensuring durability, safety, and compliance with the strictest food industry standards. Its smooth, white inner layer made of abrasion-resistant NR/SBR rubber guarantees minimal wear (≤110±5 mm³ according to ISO 4649) while remaining phthalate-free, food-grade, and fully compliant with FDA 21 CFR 177.2600 and BfR XXI category 4, making it ideal for direct contact with dry food products. Reinforced with a robust synthetic cord and equipped with two integrated copper wires to safely dissipate static electricity when grounded, the hose provides reliable protection during intensive operations. The outer layer, crafted from black EPDM rubber, is electrically conductive and resistant to ozone and weather conditions, ensuring long-lasting performance even in demanding environments. Perfect for transporting grains, sugar, powders, feeds, granules, or PVC pellets requiring a non-staining inner surface, this hose is available in two versions: BN Standard with 6 bar working pressure and BN Special with 8 bar. Offered in standard lengths of 60 m (with 120 m available on request), it operates efficiently in a wide temperature range from -30°C to +70°C, delivering a versatile and dependable solution for industries seeking maximum hygiene, safety, and resistance in pneumatic conveying systems.

Additional information

Material

SBR/NR – a mixture of SBR and NR rubber

Maximum operating temperature [°C]

70

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

100, 25, 60

Reinforcement

synthetic braid
