VERSILON™ F-5500-A Hose – Durable, Heat & Chemical Resistant Solution

Additional information

Material

PTFE – teflon and similar

Maximum operating temperature [°C]

204

Vacuum resistance

yes

Standard length [m]

15, 30

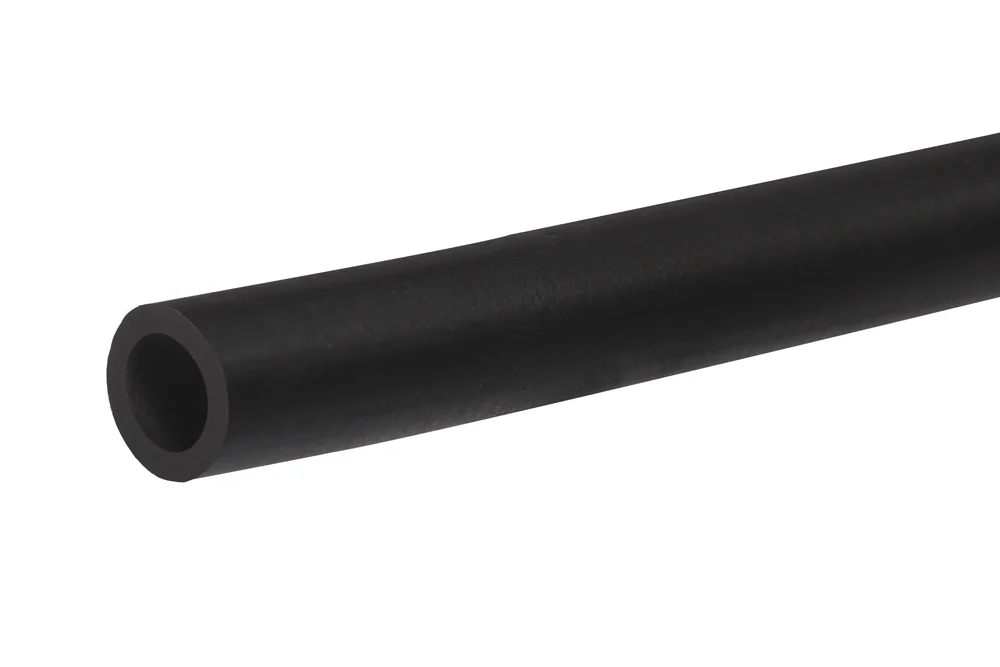

This premium black opaque hose, crafted from high‑quality fluoroelastomer (FKM), delivers exceptional durability and chemical resistance, making it the ideal solution for demanding industrial applications. Designed to withstand solvents, fuels, oils, acids, bases, and aggressive chemicals even at elevated temperatures up to +204°C, it ensures reliable performance where other materials fail. Its flexibility and compatibility with peristaltic pumps open a wide range of uses, from dry‑cleaning systems and solvent recovery to handling hot oils and fuels. The opaque wall provides complete protection for light‑sensitive substances, while resistance to ozone, UV radiation, and weathering guarantees long‑lasting stability in harsh environments. Thanks to a specialized post‑vulcanization heating process, the hose is free from residues and offers minimal outgassing, meeting the strict requirements of vacuum and even space applications. With a brittleness temperature of –51°C, hardness of 60° Shore A, and density of 1.90 g/cm³, it combines strength with flexibility. Each 15‑meter roll is packaged under controlled Clean Room conditions at Tubes International, ensuring the highest purity and uncompromised quality. For safety, the working pressure is defined with a 1:5 burst pressure factor, and due to the sterile packaging process, returns are not possible once the seal is broken.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
VE-T5502-13VERSILON F-5500-A hose 1.6x3.2 mm21.24In stock
Enquiry
VE-T5504-23VERSILON F-5500-A hose 3.2x6.4 mm31.31In stock
Enquiry
VE-T5506-23VERSILON F-5500-A hose 4.8x8 mm51.03In stock
Enquiry
VE-T5508-23VERSILON F-5500-A hose 6.4x9.6 mm60.9In stock
Enquiry
VE-T5510-23VERSILON F-5500-A hose 8x11.2 mm80.76In stock
Enquiry
VE-T5512-23VERSILON F-5500-A hose 9.5x12.7 mm100.69In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This premium black opaque hose, crafted from high‑quality fluoroelastomer (FKM), delivers exceptional durability and chemical resistance, making it the ideal solution for demanding industrial applications. Designed to withstand solvents, fuels, oils, acids, bases, and aggressive chemicals even at elevated temperatures up to +204°C, it ensures reliable performance where other materials fail. Its flexibility and compatibility with peristaltic pumps open a wide range of uses, from dry‑cleaning systems and solvent recovery to handling hot oils and fuels. The opaque wall provides complete protection for light‑sensitive substances, while resistance to ozone, UV radiation, and weathering guarantees long‑lasting stability in harsh environments. Thanks to a specialized post‑vulcanization heating process, the hose is free from residues and offers minimal outgassing, meeting the strict requirements of vacuum and even space applications. With a brittleness temperature of –51°C, hardness of 60° Shore A, and density of 1.90 g/cm³, it combines strength with flexibility. Each 15‑meter roll is packaged under controlled Clean Room conditions at Tubes International, ensuring the highest purity and uncompromised quality. For safety, the working pressure is defined with a 1:5 burst pressure factor, and due to the sterile packaging process, returns are not possible once the seal is broken.

Additional information

Material

PTFE – teflon and similar

Maximum operating temperature [°C]

204

Vacuum resistance

yes

Standard length [m]

15, 30

Do you need a larger quantity of products or a bespoke quote?
