Can the Straight Hose End with Male BSP Thread, Plastic PP/PVDF, Series 1+ EM be repeatedly connected and disconnected without tools while maintaining a leak-free seal?

Yes. The Straight Hose End with Male BSP Thread, Plastic PP/PVDF, Series 1+ EM is designed for repeated hand connection and disconnection without tools while maintaining a leak‑free seal. Its construction enables quick, tool‑free installation and removal and, when used with compatible flexible, smooth‑walled, unreinforced hoses (e.g., PVC, PA, PUR, PTFE, PFA, FEP, FKM, silicone, TYGON ® ), provides reliable, leak‑tight performance up to 16 bar.

Is the Straight Hose End with Male BSP Thread, Plastic PP/PVDF, Series 1+ EM suitable for use with PTFE and FEP hoses in pharmaceutical applications?

Yes. The Straight Hose End with Male BSP Thread, Plastic PP/PVDF, Series 1+ EM is suitable for use with PTFE and FEP hoses in pharmaceutical applications. It is specifically engineered for compatibility with flexible, smooth-walled, unreinforced hoses including PTFE, PFA and FEP, and is manufactured from chemically resistant materials (PP or PVDF) suitable for aggressive media. The design allows repeated installation/removal without tools, supports working pressures up to 16 bar, and is intended for laboratory, medical and pharmaceutical environments, making it an appropriate choice for fluid handling in pharmaceutical settings.

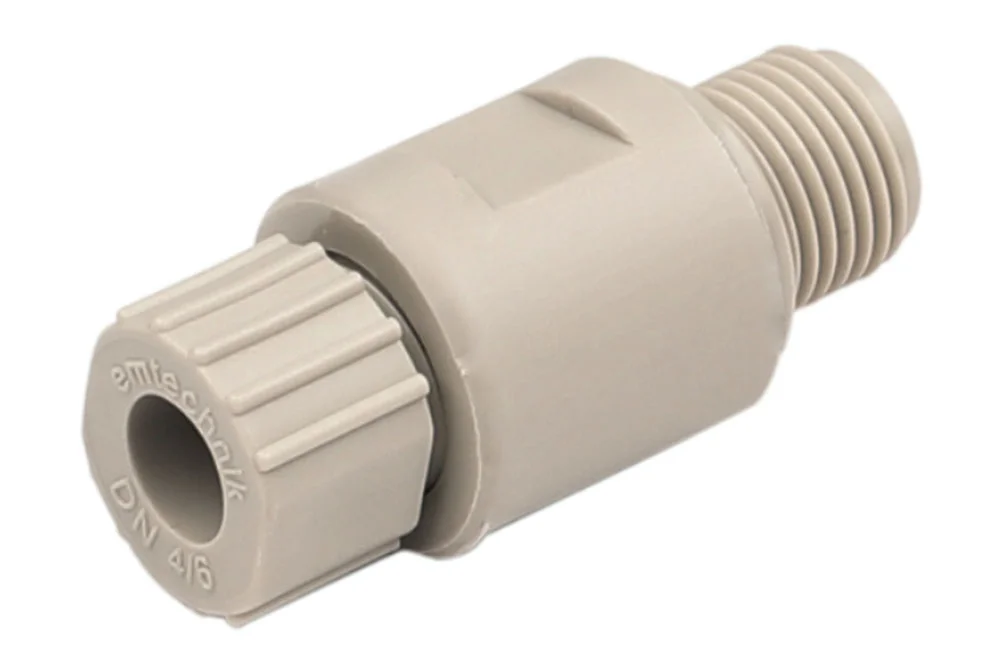

Straight Hose End with Male BSP Thread, Plastic PP/PVDF, Series 1+ EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

The straight hose fitting with GZ BSP, type EM, is a versatile solution designed for demanding applications across laboratories, medical environments, as well as the pharmaceutical, chemical, and food industries. Its innovative construction enables repeated installation and removal without the use of additional tools, ensuring both convenience and efficiency in daily operations. Engineered for compatibility with flexible, smooth-walled, unreinforced hoses, it supports a wide range of materials including PVC, PA, PUR, PTFE, PFA, FEP, FKM, silicone, and TYGON^®, making it a highly adaptable choice for diverse systems. Manufactured from durable polypropylene or PVDF, the fitting guarantees long-lasting performance and resistance to aggressive media. With a working pressure of up to 16 bar, it provides reliability and safety even under challenging conditions. This combination of robust design, chemical resistance, and user-friendly installation makes it an excellent component for professionals seeking efficiency, durability, and versatility in fluid handling systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1P100MG4018PP	Straight end (series 1+) with GZ BSP 1/8", hose 4x6 mm, polypropylene	4	16	In stock	Enquiry
EM-1P100MG4018PV	Straight end (series 1+) with GZ BSP 1/8", hose 4x6 mm, PVDF	4	16	In stock	Enquiry
EM-1P100MG4314PP	Straight end (series 1+) with GZ BSP 1/4", hose 6x8 mm, polypropylene	6	16	In stock	Enquiry
EM-1P100MG4314PV	Straight end (series 1+) with GZ BSP 1/4", hose 6x8 mm, PVDF	6	16	In stock	Enquiry
EM-1P100MG4512PP	Straight end (series 1+) with GZ BSP 1/2", hose 8x10 mm, polypropylene	8	16	In stock	Enquiry
EM-1P100MG4838PP	Straight end (series 1+) with GZ BSP 3/8", hose 10x12 mm, polypropylene	10	16	In stock	Enquiry
EM-1P100MG4838PV	Straight end (series 1+) with GZ BSP 3/8", hose 10x12 mm, PVDF	10	16	In stock	Enquiry
EM-1P100MG5112PP	Straight end (series 1+) with GZ BSP 1/2", hose 12x14 mm, polypropylene	12	16	In stock	Enquiry
EM-1P100MG5112PV	Straight end (series 1+) with GZ BSP 1/2", hose 12x14 mm, PVDF	12	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The straight hose fitting with GZ BSP, type EM, is a versatile solution designed for demanding applications across laboratories, medical environments, as well as the pharmaceutical, chemical, and food industries. Its innovative construction enables repeated installation and removal without the use of additional tools, ensuring both convenience and efficiency in daily operations. Engineered for compatibility with flexible, smooth-walled, unreinforced hoses, it supports a wide range of materials including PVC, PA, PUR, PTFE, PFA, FEP, FKM, silicone, and TYGON^®, making it a highly adaptable choice for diverse systems. Manufactured from durable polypropylene or PVDF, the fitting guarantees long-lasting performance and resistance to aggressive media. With a working pressure of up to 16 bar, it provides reliability and safety even under challenging conditions. This combination of robust design, chemical resistance, and user-friendly installation makes it an excellent component for professionals seeking efficiency, durability, and versatility in fluid handling systems.
