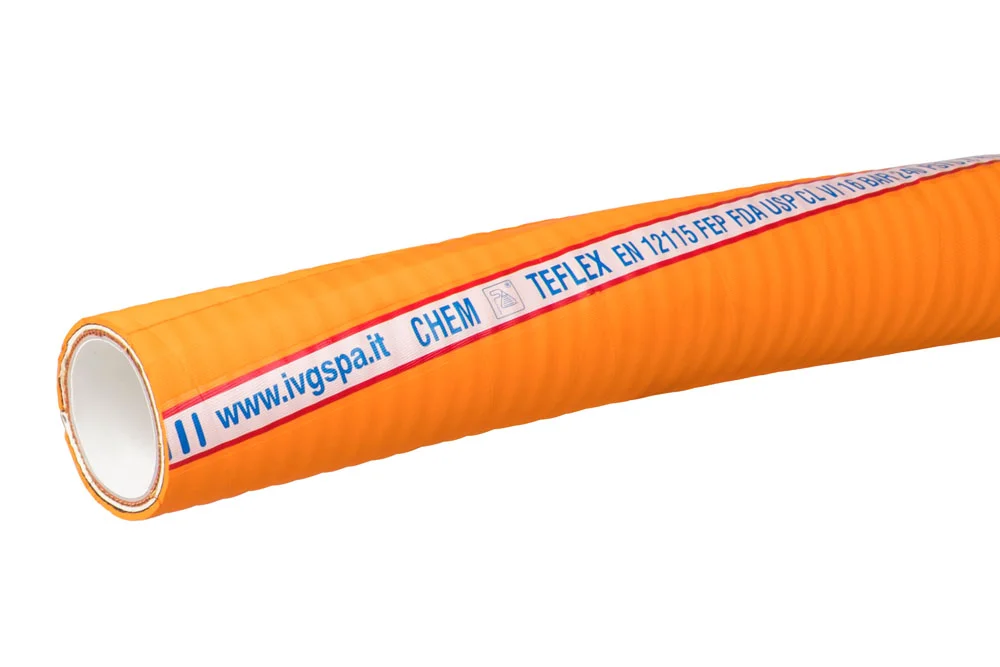

Hose for very aggressive substances chemical TEFLEX

Additional information

Material

PFA/MFA/FEP – fluoropolymer

Maximum operating temperature [°C]

150

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

20/ 40, 40

Reinforcement

steel spiral, synthetic cover

The highest quality hose suction-delivery intended for conveying very wide range aggressive substances chemical. wide use hose, primarily in industry chemical, conditioned is excellent resistance polymer fluorine FEP on aggressive solvents and concentrated lyes and acids such as: acid hydrochloric, sulfuric, phosphoric, nitric and lye sodium and potassium. hose It can be used also in industry food and pharmaceutical. readily used is in zones pure. Layer inner with white copolymer tetrafluoroethylene / fluoropropylene FEP (thermoplastic polymer fluorine o properties close for PTFE), mirror smooth (prevents deposition medium on walls and is easy in maintaining purity), free of odour and taste, meeting high requirements hygienic (FDA, USP CLASS VI). layer intermediate with white rubber synthetic, contain Reinforcement with cord synthetic, spiral with wire steel and two copper cable for discharge charges electrostatic. outer Layer with orange rubber EPDM, resistant to abrasion, ozone and conditions atmospheric. hose is characterized excellent resistance chemical and cleanliness FEP and exceptional resistance to temperature. specially designed for cleaning method Cleaning-in-Place (CIP), in this for sterilization steam 150ºC. standards and requirements: hoses chemical: EN 12115:2011(type M). industry food, contact with food (Layer inner): USP CLASS VI, FDA 21 CFR 177.1550. Confirmation of resistance and application conditions requires contact with Tubes International. Inner layer: white, smooth FEP. Reinforcement: cord synthetic, steel spiral. Outer layer: orange smooth EPDM rubber. Working pressure: 16 bar. Vacuum: 0.9 bar. Operating temperature: od -40°C up to +150°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-TEFLEX-19Hose TEFLEX EN 12115 19x31.5 mm2016In stock0 €
Enquiry
IV-TEFLEX-25Hose TEFLEX EN 12115 25x37.5 mm2516In stock0 €
Enquiry
IV-TEFLEX-32Hose TEFLEX EN 12115 32x45 mm3216In stock0 €
Enquiry
IV-TEFLEX-38Hose TEFLEX EN 12115 38x51.5 mm3816In stock0 €
Enquiry
IV-TEFLEX-51Hose TEFLEX EN 12115 51x65.5 mm5016In stock0 €
Enquiry
IV-TEFLEX-76Hose TEFLEX EN 12115 76x91 mm7516In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

The highest quality hose suction-delivery intended for conveying very wide range aggressive substances chemical. wide use hose, primarily in industry chemical, conditioned is excellent resistance polymer fluorine FEP on aggressive solvents and concentrated lyes and acids such as: acid hydrochloric, sulfuric, phosphoric, nitric and lye sodium and potassium. hose It can be used also in industry food and pharmaceutical. readily used is in zones pure. Layer inner with white copolymer tetrafluoroethylene / fluoropropylene FEP (thermoplastic polymer fluorine o properties close for PTFE), mirror smooth (prevents deposition medium on walls and is easy in maintaining purity), free of odour and taste, meeting high requirements hygienic (FDA, USP CLASS VI). layer intermediate with white rubber synthetic, contain Reinforcement with cord synthetic, spiral with wire steel and two copper cable for discharge charges electrostatic. outer Layer with orange rubber EPDM, resistant to abrasion, ozone and conditions atmospheric. hose is characterized excellent resistance chemical and cleanliness FEP and exceptional resistance to temperature. specially designed for cleaning method Cleaning-in-Place (CIP), in this for sterilization steam 150ºC. standards and requirements: hoses chemical: EN 12115:2011(type M). industry food, contact with food (Layer inner): USP CLASS VI, FDA 21 CFR 177.1550. Confirmation of resistance and application conditions requires contact with Tubes International. Inner layer: white, smooth FEP. Reinforcement: cord synthetic, steel spiral. Outer layer: orange smooth EPDM rubber. Working pressure: 16 bar. Vacuum: 0.9 bar. Operating temperature: od -40°C up to +150°C.

Additional information

Material

PFA/MFA/FEP – fluoropolymer

Maximum operating temperature [°C]

150

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

20/ 40, 40

Reinforcement

steel spiral, synthetic cover

Do you need a larger quantity of products or a bespoke quote?
