Is the 90° Hose End to Hose with BSP Male Thread, PP/PVDF, Series 1C EM compatible with PTFE and PFA smooth-walled hoses and tubes?

Yes. The 90° Hose End to Hose with BSP Male Thread, PP/PVDF, Series 1C EM is optimized for smooth-walled, unreinforced hoses and tubes made from PTFE and PFA (as well as FEP, PA, and PE). Its push-on connecting sleeve, PEEK locking ring with knurled nut, and PTFE sealing ring ensure secure, chemically resistant connections suitable for those materials, supporting working pressures up to 10 bar.

Can the 90° Hose End to Hose with BSP Male Thread, PP/PVDF, Series 1C EM be autoclaved without damaging the PEEK locking ring or PTFE sealing ring?

The 90° Hose End to Hose with BSP Male Thread, PP/PVDF, Series 1C EM cannot be reliably autoclaved without risk to the PEEK locking ring and PTFE sealing ring. PEEK has good high‑temperature resistance but repeated exposure to saturated steam at typical autoclave conditions (121–134 °C, elevated pressure) can affect its mechanical properties and long‑term dimensional stability. PTFE is chemically resistant and tolerates autoclave temperatures, but the assembly’s sealing performance and the interface between PTFE seal and PEEK lock may be compromised by cyclic thermal stress and differential expansion. Additionally, the polypropylene (PP) or PVDF body materials have different steam‑ageing behaviors; PP in particular can soften or deform under autoclave conditions. Therefore, unless the manufacturer explicitly certifies this exact Series 1C EM assembly for autoclaving, do not autoclave it — use validated sterilization procedures compatible with PEEK, PTFE and the chosen body material or request manufacturer confirmation for autoclave suitability.

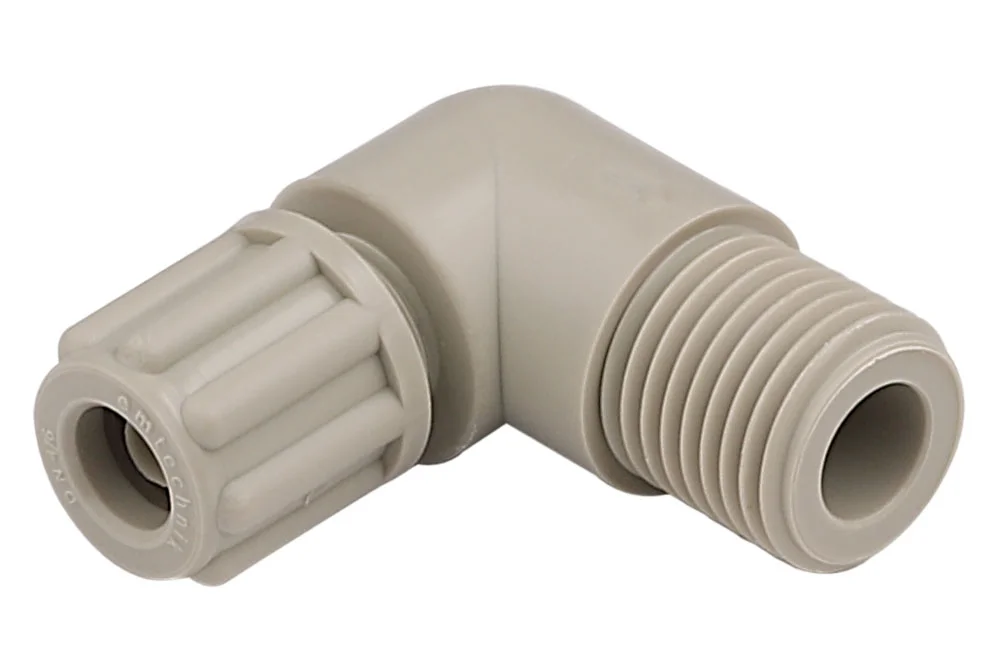

A fitting 90° for hose with a male BSP thread with plastic PP, PVDF, series 1C type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

A fitting 90° for hose with a male BSP thread series 1C type EM, found wide use in laboratories, medicine, industry pharmaceutical, chemical and food. assembly takes place through pressing hose on integrated sleeve connecting. locking occurs using ring cutting, made with PEEK and a nut knurled. sealing ensures ring sealing made with PTFE. Intended is for smooth unreinforced hoses and tubes with harder plastics e.g. with PTFE, PFA, FEP, PA, PE. available are other sizes and diameter ends and connector. Material: polypropylene, PVDF. Working pressure: 10 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1C200MG4018PP	Fitting 90° (1C series) with 1/8" BSP male, hose 4x6 mm, polypropylene	4	10	In stock	Enquiry
EM-1C200MG4018PV	Fitting 90° (1C series) with 1/8" BSP male, hose 4x6 mm, PVDF	4	10	In stock	Enquiry
EM-1C200MG4214PP	Fitting 90° (1C series) with 1/4" BSP male, hose 5x8 mm, polypropylene	5	10	In stock	Enquiry
EM-1C200MG4214PV	Fitting 90° (1C series) with 1/4" BSP male, hose 5x8 mm, PVDF	5	10	In stock	Enquiry
EM-1C200MG4314PP	Fitting 90° (1C series) with 1/4" BSP male, hose 6x8 mm, polypropylene	6	10	In stock	Enquiry
EM-1C200MG4314PV	Fitting 90° (1C series) with 1/4" BSP male, hose 6x8 mm, PVDF	6	10	In stock	Enquiry
EM-1C200MG4512PP	Fitting 90° (1C series) with 1/2" BSP male, hose 8x10 mm, polypropylene	8	10	In stock	Enquiry
EM-1C200MG4512PV	Fitting 90° (1C series) with 1/2" BSP male, hose 8x10 mm, PVDF	8	10	In stock	Enquiry
EM-1C200MG4538PP	Fitting 90° (1C series) with 3/8" BSP male, hose 8x10 mm, polypropylene	8	10	In stock	Enquiry
EM-1C200MG4538PV	Fitting 90° (1C series) with 3/8" BSP male, hose 8x10 mm, PVDF	8	10	In stock	Enquiry
EM-1C200MG4812PP	Fitting 90° (1C series) with 1/2" BSP male, hose 10x12 mm, polypropylene	10	10	In stock	Enquiry
EM-1C200MG4812PV	Fitting 90° (1C series) with 1/2" BSP male, hose 10x12 mm, PVDF	10	10	In stock	Enquiry
EM-1C200MG4838PP	Fitting 90° (1C series) with 3/8" BSP male, hose 10x12 mm, polypropylene	10	10	In stock	Enquiry
EM-1C200MG4838PV	Fitting 90° (1C series) with 3/8" BSP male, hose 10x12 mm, PVDF	10	10	In stock	Enquiry
EM-1C200MG5112PP	Fitting 90° (1C series) with 1/2" BSP male, hose 12x14 mm, polypropylene	12	10	In stock	Enquiry
EM-1C200MG5112PV	Fitting 90° (1C series) with 1/2" BSP male, hose 12x14 mm, PVDF	12	10	In stock	Enquiry
EM-1C200MG5312PP	Fitting 90° (1C series) with 1/2" BSP male, hose 14x16 mm, polypropylene	14	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting 90° for hose with a male BSP thread series 1C type EM, found wide use in laboratories, medicine, industry pharmaceutical, chemical and food. assembly takes place through pressing hose on integrated sleeve connecting. locking occurs using ring cutting, made with PEEK and a nut knurled. sealing ensures ring sealing made with PTFE. Intended is for smooth unreinforced hoses and tubes with harder plastics e.g. with PTFE, PFA, FEP, PA, PE. available are other sizes and diameter ends and connector. Material: polypropylene, PVDF. Working pressure: 10 bar.
