Can the Hose End 90° to Hose with Male BSP, PP/PVDF, Series 1+ EM be sterilized and still maintain leak-free performance up to 16 bar?

Yes. The Hose End 90° to Hose with Male BSP, PP/PVDF, Series 1+ EM can be sterilized and still maintain leak-free performance up to 16 bar. Its construction from high-quality polypropylene or PVDF provides chemical resistance and durability suitable for sterilization processes commonly used in laboratories, medical, pharmaceutical, chemical and food environments. The fitting is engineered for repeated installation and removal without tools and for use with flexible, smooth-walled unreinforced hoses (PVC, PA, PUR, PTFE, PFA, FEP, FKM, silicone, TYGON ® ), and is rated for a working pressure up to 16 bar, ensuring secure, leak-free connections after sterilization when used within specified application limits.

Is the Hose End 90° to Hose with Male BSP, PP/PVDF, Series 1+ EM suitable for autoclave sterilization without compromising its 16 bar leak-free performance?

Hose End 90° to Hose with Male BSP, PP/PVDF, Series 1+ EM is designed for demanding hygienic and chemical applications and is made of PP or PVDF, materials that tolerate many sterilization methods. However, the product description does not explicitly state autoclave (steam sterilization) compatibility or validated cycles/temperatures. Autoclaving can subject thermoplastics to repeated high temperature (typically 121–134°C) and pressure and may cause deformation, loss of sealing force, or accelerated aging of components and any elastomeric seals (if present), potentially compromising the 16 bar leak-free performance. Conclusion: There is insufficient information to guarantee autoclave sterilization without affecting the 16 bar leak-free performance. Before autoclaving, confirm with the manufacturer for validated autoclave cycles and material-specific limits (PP vs PVDF and any seals), or perform qualification testing (pressure/leak tests after the intended autoclave cycles).

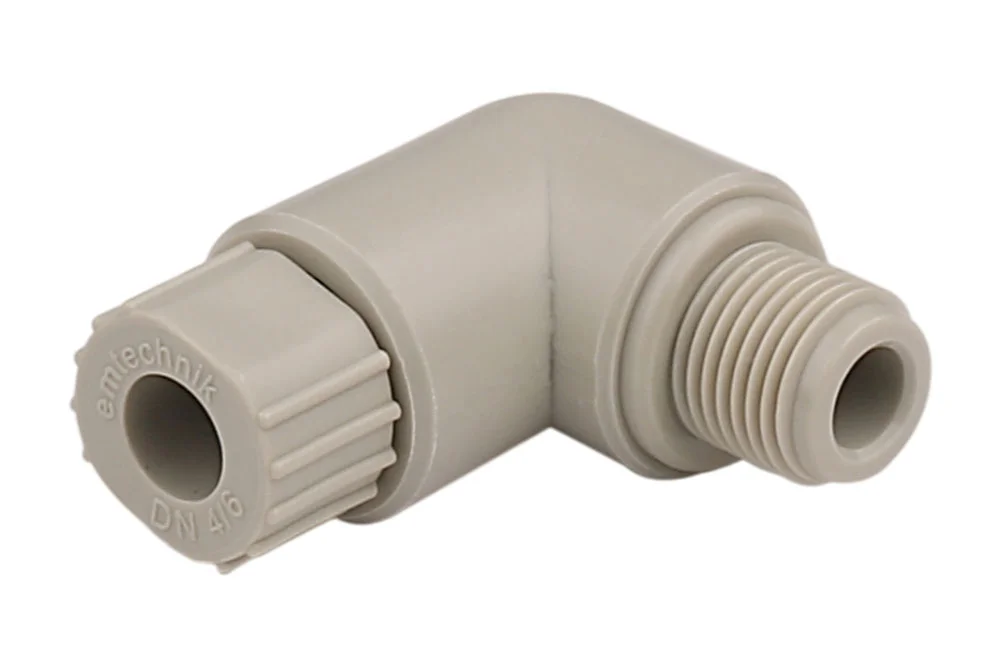

A fitting 90° for hose with a male BSP thread, with plastic PP, PVDF, series 1+ type EM

All products, Low-pressure fittings and adapters/

Additional information

Material	P – material (plastic)

A fitting 90° for hose with a male BSP thread, type EM, found wide use in in laboratories, medicine, industry pharmaceutical, chemical and food. The design allows multiple assembly without the need use tools. Intended is for flexible smooth unreinforced hoses, PVC, PA, PUR, PTFE, PFA, FEP, FKM, silicone and hoses TYGON ®. Material: polypropylene, PVDF. Working pressure: 16 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EM-1P200MG4018PP	Fitting 90° (1 series+) with 1/8" BSP male, hose 4x6 mm, polypropylene	4	16	In stock	Enquiry
EM-1P200MG4018PV	Fitting 90° (1 series+) with 1/8" BSP male, hose 4x6 mm, PVDF	4	16	In stock	Enquiry
EM-1P200MG4314PP	Fitting 90° (1 series+) with 1/4" BSP male, hose 6x8 mm, polypropylene	6	16	In stock	Enquiry
EM-1P200MG4314PV	Fitting 90° (1 series+) with 1/4" BSP male, hose 6x8 mm, PVDF	6	16	In stock	Enquiry
EM-1P200MG4538PP	Fitting 90° (1 series+) with 3/8" BSP male, hose 8x10 mm, polypropylene	8	16	In stock	Enquiry
EM-1P200MG4812PP	Fitting 90° (1 series+) with 1/2" BSP male, hose 10x12 mm, polypropylene	10	16	In stock	Enquiry
EM-1P200MG4812PV	Fitting 90° (1 series+) with 1/2" BSP male, hose 10x12 mm, PVDF	10	16	In stock	Enquiry
EM-1P200MG4838PP	Fitting 90° (1 series+) with 3/8" BSP male, hose 10x12 mm, polypropylene	10	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting 90° for hose with a male BSP thread, type EM, found wide use in in laboratories, medicine, industry pharmaceutical, chemical and food. The design allows multiple assembly without the need use tools. Intended is for flexible smooth unreinforced hoses, PVC, PA, PUR, PTFE, PFA, FEP, FKM, silicone and hoses TYGON ®. Material: polypropylene, PVDF. Working pressure: 16 bar.
