DKOS 45° Hydraulic End, ZMW322 Heavy Series, Carbon Steel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

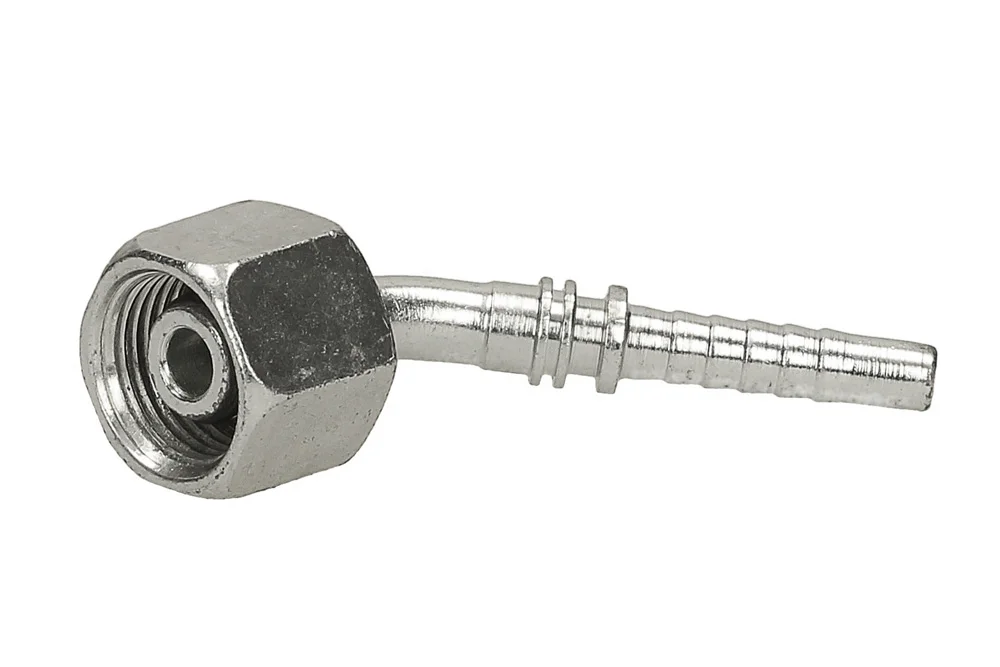

This heavy-duty hydraulic fitting, designed in the Z-type standard with a classic hydraulic tail for hose connection, ensures reliable performance in demanding applications. Featuring an internal metric thread with nut and secure O-ring sealing on a 24° DKOS cone, it provides excellent tightness and durability under high pressure. The 45° angled construction allows for flexible installation in confined spaces, optimizing hose routing and reducing stress on connections. Engineered for crimping with the appropriate sleeve tailored to the hose type, it guarantees a robust and long-lasting joint. Manufactured from high-quality carbon steel with a protective galvanized coating, the fitting offers enhanced resistance to corrosion and wear, extending service life even in harsh industrial environments. Ideal for hydraulic and industrial hose assemblies, it combines strength, precision, and reliability, making it a trusted solution for professionals seeking efficiency and safety in fluid power systems.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW322-14-03	End. 45° G thread M14x1.5, hose 3/16", 24°, o-ring, heavy	5	-	In stock	Enquiry
TI-ZMW322-14-04	End. 45° G thread M14x1.5, hose 1/4", 24°, o-ring, heavy	6	-	In stock	Enquiry
TI-ZMW322-16-03	End. 45° G-thread M16x1.5, hose 3/16", 24°, o-ring, heavy	5	-	In stock	Enquiry
TI-ZMW322-16-04	End. 45° GW M16x1.5, hose 1/4", 24°, o-ring, heavy	6	-	In stock	Enquiry
TI-ZMW322-18-04	End. 45° G1/2 M18x1.5, hose 1/4", 24°, o-ring, heavy	6	-	In stock	Enquiry
TI-ZMW322-18-05	End fitting 45° G1/2 M18x1.5, hose 5/16", 24°, o-ring, heavy	8	-	In stock	Enquiry
TI-ZMW322-18-06	End. 45° G-thread M18x1.5, hose 3/8", 24°, o-ring, heavy	10	-	In stock	Enquiry
TI-ZMW322-20-04	End. 45° G1/2 M20x1.5, hose 1/4", 24°, o-ring, heavy	6	-	In stock	Enquiry
TI-ZMW322-20-05	End fitting 45° G thread M20x1.5, hose 5/16", 24°, o-ring, heavy	8	-	In stock	Enquiry
TI-ZMW322-20-06	End fitting 45° G1/2 M20x1.5, hose 3/8", 24°, o-ring, heavy	10	-	In stock	Enquiry
TI-ZMW322-22-06	End fitting 45° G1/2 M22x1.5, hose 3/8", 24°, o-ring, heavy	10	-	In stock	Enquiry
TI-ZMW322-22-08	End. 45° G1/2" M22x1.5, hose 1/2", 24°, o-ring, heavy	12	-	In stock	Enquiry
TI-ZMW322-24-08	End. 45° G1 M24x1.5, hose 1/2", 24°, o-ring, heavy	12	-	In stock	Enquiry
TI-ZMW322-30-10	End. 45° G thread M30x2, hose 5/8", 24°, o-ring, heavy	16	-	In stock	Enquiry
TI-ZMW322-30-12	End. 45° G1/2 M30x2, hose 3/4", 24°, o-ring, heavy	20	-	In stock	Enquiry
TI-ZMW322-30-16	End. 45° G-thread M30x2, hose 1", 24°, o-ring, heavy	25	-	In stock	Enquiry
TI-ZMW322-36-12	End. 45° GW M36x2, hose 3/4", 24°, o-ring, heavy	20	-	In stock	Enquiry
TI-ZMW322-36-16	End. 45° GW M36x2, hose 1", 24°, o-ring, heavy	25	-	In stock	Enquiry
TI-ZMW322-42-16	End. 45° GW M42x2, hose 1", 24°, o-ring, heavy	25	-	In stock	Enquiry
TI-ZMW322-42-20	End fitting 45° G1/2 M42x2, hose 1.1/4", 24°, o-ring, heavy	32	-	In stock	Enquiry
TI-ZMW322-52-20	End fitting 45° G1/2" M52x2, hose 1.1/4", 24°, o-ring, heavy	32	-	In stock	Enquiry
TI-ZMW322-52-24	End fitting 45° GW M52x2, hose 1.1/2", 24°, o-ring, heavy	38	-	In stock	Enquiry
