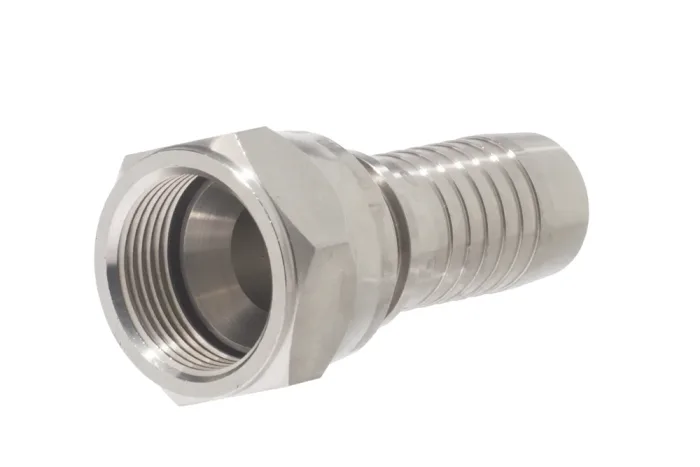

DKJ Hydraulic End ZJW110, AISI 316L Stainless Steel
The standard hydraulic end type Z is a reliable solution designed with a classic hydraulic tail for secure hose connection, featuring an internal UNF thread and nut with precise sealing on a 74° cone (DKJ). Engineered for professional applications, it ensures optimal performance when crimped onto hydraulic and industrial hoses using a dedicated crimping sleeve tailored to the specific hose type. Manufactured from premium AISI 316L stainless steel, it offers outstanding resistance to corrosion, durability under demanding conditions, and long-lasting efficiency even in aggressive environments. This fitting combines robust construction with precision engineering, making it an excellent choice for industries that require safety, reliability, and consistent hydraulic performance.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| TI-ZJW110-06-03-SS | End. JIC GW 3/8", hose 3/16", cone 74°, steel 316 | 5 | - | |
| TI-ZJW110-07-02-SS | End. JIC GW 7/16", hose 1/8", cone 74°, AISI 316L | 3 | - | |
| TI-ZJW110-07-03-SS | End. JIC GW 7/16", hose 3/16", cone 74°, AISI 316L | 5 | - | |
| TI-ZJW110-07-04-SS | End. JIC GW 7/16", hose 1/4", cone 74°, AISI 316L | 6 | - | |
| TI-ZJW110-08-03-SS | End. JIC GW 1/2", hose 3/16", cone 74°, AISI 316L | 5 | - | |
| TI-ZJW110-08-04-SS | End. JIC GW 1/2", hose 1/4", cone 74°, AISI 316L | 6 | - | |
| TI-ZJW110-08-05-SS | End. JIC GW 1/2", hose 5/16", cone 74°, AISI 316L | 8 | - | |
| TI-ZJW110-09-04-SS | End. JIC GW 9/16", hose 1/4", cone 74°, AISI 316L | 6 | - | |
| TI-ZJW110-09-05-SS | End. JIC GW 9/16", hose 5/16", cone 74°, AISI 316L | 8 | - | |
| TI-ZJW110-09-06-SS | End. JIC GW 9/16", hose 3/8", cone 74°, AISI 316L | 10 | - | |
| TI-ZJW110-12-06-SS | End. JIC GW 3/4", hose 3/8", cone 74°, AISI 316L | 10 | - | |
| TI-ZJW110-12-08-SS | End. JIC GW 3/4", hose 1/2", cone 74°, AISI 316L | 12 | - | |
| TI-ZJW110-14-06-SS | End. JIC GW 7/8", hose 3/8", cone 74°, AISI 316L | 10 | - | |
| TI-ZJW110-14-08-SS | End. JIC GW 7/8", hose 1/2", cone 74°, AISI 316L | 12 | - | |
| TI-ZJW110-14-10-SS | End. JIC GW 7/8", hose 5/8", cone 74°, AISI 316L | 16 | - | |
| TI-ZJW110-17-08-SS | End. JIC GW 1.1/16", hose 1/2", cone 74°, AISI 316L | 12 | - | |
| TI-ZJW110-17-10-SS | End. JIC GW 1.1/16", hose 5/8", cone 74°, AISI 316L | 16 | - | |
| TI-ZJW110-17-12-SS | End. JIC GW 1.1/16", hose 3/4", cone 74°, AISI 316L | 20 | - | |
| TI-ZJW110-17-16-SS | End. JIC GW 1.1/16", hose 1", cone 74°, AISI 316L | 25 | - | |
| TI-ZJW110-21-12-SS | End. JIC GW 1.5/16", hose 3/4", cone 74°, AISI 316L | 20 | - | |
| TI-ZJW110-21-16-SS | End. JIC GW 1.5/16", hose 1", cone 74°, AISI 316L | 25 | - | |
| TI-ZJW110-26-16-SS | End. JIC GW 1.5/8", hose 1", cone 74°, AISI 316L | 25 | - | |
| TI-ZJW110-26-20-SS | End. JIC GW 1.5/8", hose 1.1/4", cone 74°, AISI 316L | 32 | - | |
| TI-ZJW110-30-24-SS | End. JIC GW 1.7/8", hose 1.1/2", cone 74°, AISI 316L | 38 | - | |
| TI-ZJW110-40-32-SS | End. JIC GW 2.1/2", hose 2", cone 74°, AISI 316L | 50 | - |
