Is DKOR Hydraulic End ZBW120, Carbon Steel with Zinc-Nickel Coating compatible with standard crimping sleeves for hydraulic and industrial hoses?

Yes. DKOR Hydraulic End ZBW120, Carbon Steel with Zinc-Nickel Coating Format is compatible with standard crimping sleeves for hydraulic and industrial hoses when the correct sleeve is selected for the hose specification. The fitting features a classic hydraulic tail, internal BSP thread and nut, and seals with an O-ring on a 60° cone (DKOR), and it is explicitly designed for professional crimping. Ensure the crimping sleeve matches the hose type and dimensions to achieve a secure, reliable installation.

Does the DKOR Hydraulic End ZBW120, Carbon Steel with Zinc-Nickel Coating meet industry corrosion resistance standards for marine applications?

DKOR Hydraulic End ZBW120, Carbon Steel with Zinc-Nickel Coating Format meets common industry expectations for corrosion resistance in marine applications. The part is made from high-quality carbon steel and coated with a 6–10 µm zinc‑nickel layer that resists corrosion and has demonstrated up to 720 hours in a salt spray (fog) chamber without visible damage — a performance level that aligns with, or exceeds, many marine and offshore requirements (typical benchmarks such as ISO 9227 salt spray testing use similar hour ratings to qualify protective finishes). However, final suitability for a specific marine project depends on the exact standard specified by the end customer or regulatory body (e.g., specific ISO, ASTM, NORSOK, DNV, ABS requirements) and the service environment (continuous immersion, splash zone, tropical climates, chemical exposure). For absolute compliance, validate the ZBW120’s test reports against the project’s required standard and consider complementary measures (e.g., additional sealing, sacrificial anodes, maintenance schedules) for the harshest marine conditions.

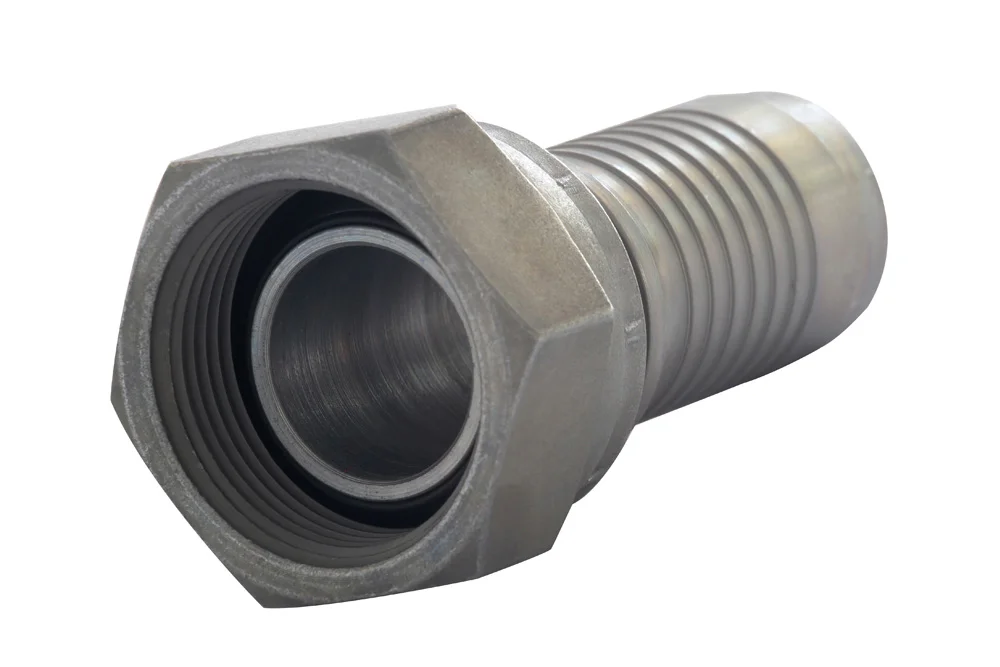

DKOR Hydraulic End ZBW120, Carbon Steel with Zinc-Nickel Coating

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

The standard hydraulic end type Z with a classic hydraulic tail for hose connection is equipped with an internal BSP thread and nut, ensuring reliable sealing with an O-ring on a 60° cone (DKOR). Designed for professional crimping in both hydraulic and industrial hoses, it guarantees secure installation when used with the appropriate crimping sleeve tailored to the hose specification. Manufactured from high-quality carbon steel and finished with a zinc-nickel coating of 6–10 µm, it offers outstanding durability and exceptional resistance to corrosion, withstanding up to 720 hours in a salt spray chamber without visible damage. This advanced protective layer not only extends the service life of the fitting but also ensures consistent performance in demanding environments, making it an excellent choice for applications where reliability, safety, and long-term efficiency are essential.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZBW120-04-04-CN	End. GW 1/4" BSP, hose 1/4", cone 60°, o-ring, Zn-Ni	6	-	In stock	Enquiry
TI-ZBW120-06-06-CN	End. GW 3/8" BSP, hose 3/8", cone 60°, o-ring, Zn-Ni	10	-	In stock	Enquiry
TI-ZBW120-08-08-CN	End. GW 1/2" BSP, hose 1/2", cone 60°, o-ring, Zn-Ni	12	-	In stock	Enquiry
TI-ZBW120-10-10-CN	End. GW 5/8" BSP, hose 5/8", cone 60°, o-ring, Zn-Ni	16	-	In stock	Enquiry
TI-ZBW120-12-12-CN	End. GW 3/4" BSP, hose 3/4", cone 60°, o-ring, Zn-Ni	20	-	In stock	Enquiry
TI-ZBW120-16-16-CN	End. GW 1" BSP, hose 1", cone 60°, o-ring, Zn-Ni	25	-	In stock	Enquiry
TI-ZBW120-20-16-CN	End. GW 1.1/4" BSP, hose 1", cone 60°, o-ring, Zn-Ni	25	-	In stock	Enquiry
TI-ZBW120-20-20-CN	End. GW 1.1/4" BSP, hose 1.1/4", cone 60°, o-ring, Zn-Ni	32	-	In stock	Enquiry
TI-ZBW120-24-20-CN	End. GW 1.1/2" BSP, hose 1.1/4", cone 60°, o-ring, Zn-Ni	32	-	In stock	Enquiry
TI-ZBW120-24-24-CN	End. GW 1.1/2" BSP, hose 1.1/2", cone 60°, o-ring, Zn-Ni	38	-	In stock	Enquiry
TI-ZBW120-32-24-CN	End. GW 2" BSP, hose 1.1/2", cone 60°, o-ring, Zn-Ni	38	-	In stock	Enquiry
TI-ZBW120-32-32-CN	End. GW 2" BSP, hose 2", cone 60°, o-ring, Zn-Ni	50	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The standard hydraulic end type Z with a classic hydraulic tail for hose connection is equipped with an internal BSP thread and nut, ensuring reliable sealing with an O-ring on a 60° cone (DKOR). Designed for professional crimping in both hydraulic and industrial hoses, it guarantees secure installation when used with the appropriate crimping sleeve tailored to the hose specification. Manufactured from high-quality carbon steel and finished with a zinc-nickel coating of 6–10 µm, it offers outstanding durability and exceptional resistance to corrosion, withstanding up to 720 hours in a salt spray chamber without visible damage. This advanced protective layer not only extends the service life of the fitting but also ensures consistent performance in demanding environments, making it an excellent choice for applications where reliability, safety, and long-term efficiency are essential.
