Is the UHP Hydraulic Hose End, Carbon Steel, PBZ130 Type compatible with all thermoplastic hoses and which crimping sleeve should be used?

UHP Hydraulic Hose End, Carbon Steel, PBZ130 Type is specifically engineered for use with UHP thermoplastic hoses that accept a tailored tail design; it is not automatically compatible with all thermoplastic hoses. Compatibility depends on the hose’s internal diameter, wall construction and manufacturer specifications. For secure crimping you must use the crimping sleeve specified by the hose manufacturer that matches the PBZ130 tail profile and the hose type—i.e., the UHP-compatible crimping sleeve sized for the hose’s nominal ID and wall thickness. Also follow the hose maker’s crimping parameters (press type, pressure, depth) to ensure safe, leak-free assemblies.

Can the UHP Hydraulic Hose End, Carbon Steel, PBZ130 Type be used with non-UHP thermoplastic hoses, and how do I select the correct crimping sleeve for safe installation?

UHP Hydraulic Hose End, Carbon Steel, PBZ130 Type is optimized for use with UHP thermoplastic hoses—its tail profile and crimping geometry are specifically designed to mate with those hose constructions. Using it with non-UHP thermoplastic hoses is not recommended unless the hose has identical internal diameter, wall structure, and specified crimp dimensions; mismatches can compromise seal, crimp integrity and safety. To select the correct crimping sleeve for safe installation: - Verify hose specification: internal diameter, outer diameter, reinforcement type and manufacturer’s crimp spec. - Use a sleeve matched to the hose manufacturer’s recommended material and length for the PBZ130 tail profile (sleeve inner contour must match the fitting tail). - Confirm sleeve size equals hose outer diameter plus any specified tolerance; check sleeve length per crimp chart. - Follow the hose and sleeve manufacturer’s crimping parameters: crimp diameter, machine type, and die set. - Use a calibrated crimping machine and perform post-crimp pull/pressure tests per standards. - If unsure, consult the hose or sleeve manufacturer with PBZ130 details for a validated sleeve part number and crimping spec. When in doubt, restrict use to approved UHP thermoplastic hoses and manufacturer-recommended sleeves to ensure safety and reliability.

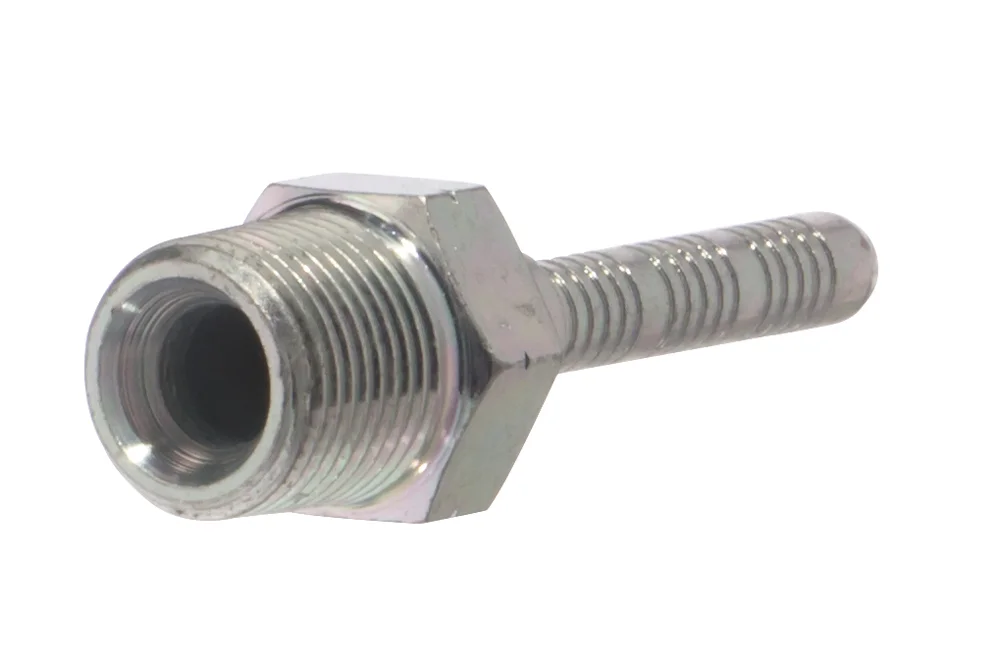

A fitting hydraulic for hose UHP steel carbon, type PBZ130

Additional information

Material	CS – steel (cast iron)

A fitting hydraulic (type P – of special „tail” for hose thermoplastic) with thread external BSPT, sealing on the thread using tape PTFE or sealant in flows. Intended for crimping in hoses thermoplastic UHP using ferrule crimping, appropriate for type hose. Material: steel carbon, galvanized.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TI-PBZ130-06-04-TO	Fitting 3/8" BSPT male, hose thermoplastic 1/4"	6	800	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A fitting hydraulic (type P – of special „tail” for hose thermoplastic) with thread external BSPT, sealing on the thread using tape PTFE or sealant in flows. Intended for crimping in hoses thermoplastic UHP using ferrule crimping, appropriate for type hose. Material: steel carbon, galvanized.
