Is the ORFS Hydraulic End ZOZ110, Carbon Steel, Zinc-Nickel compatible with my hydraulic hose type and crimping sleeve?

To determine compatibility of the ORFS Hydraulic End ZOZ110, Carbon Steel, Zinc-Nickel with your hydraulic hose and crimping sleeve, check these points: 1. Hose inner diameter and tail size — the ZOZ110 is a classic hydraulic tail designed to match specific hose inner diameters; the hose ID must match the fitting tail dimension for a secure fit. 2. Sleeve type and crimp profile — the ZOZ110 is engineered for crimping with compatible sleeves tailored to specific hose types. Use a sleeve specified for your hose construction (single-, two-, or four-wire, spiral, or textile) and for the ZOZ110’s tail profile. 3. Crimping equipment and die set — ensure your crimping machine and die are rated for the crimp dimensions and pressure class of the ZOZ110 and your hose. 4. Pressure rating and application — confirm the fitting’s rated pressure matches or exceeds your system’s operating and peak pressures, including temperature and fluid compatibility. 5. Seal type — the ZOZ110 uses an external UNF thread with integrated ORFS O-ring face seal; ensure your mating port accepts ORFS and that the O-ring material is compatible with your fluid and temperature range. 6. Materials and corrosion resistance — made of carbon steel with 6–10 µm zinc-nickel coating (up to 720 h salt spray resistance), suitable for corrosive environments; verify this meets your site requirements. If you provide your hose model, nominal ID, construction (wire/spiral/textile), sleeve type, and operating pressure/temperature, I can confirm compatibility precisely.

Can ORFS Hydraulic End ZOZ110, Carbon Steel, Zinc-Nickel withstand prolonged exposure to salt spray and corrosive environments without performance loss?

Yes. ORFS Hydraulic End ZOZ110, Carbon Steel, Zinc-Nickel is designed to withstand prolonged exposure to salt spray and corrosive environments without performance loss. Its body is made from high-quality carbon steel and finished with an advanced zinc-nickel coating (6–10 µm) that provides exceptional corrosion resistance — certified to resist up to 720 hours in a salt spray chamber with no visible damage. The ORFS external UNF thread with integrated O-ring face seal ensures reliable, leak-free performance under demanding conditions, and the crimp-compatible design guarantees a durable mechanical fit. Together, the robust construction and superior surface treatment deliver long-lasting reliability, reduced maintenance, and consistent efficiency in high-pressure, corrosive environments.

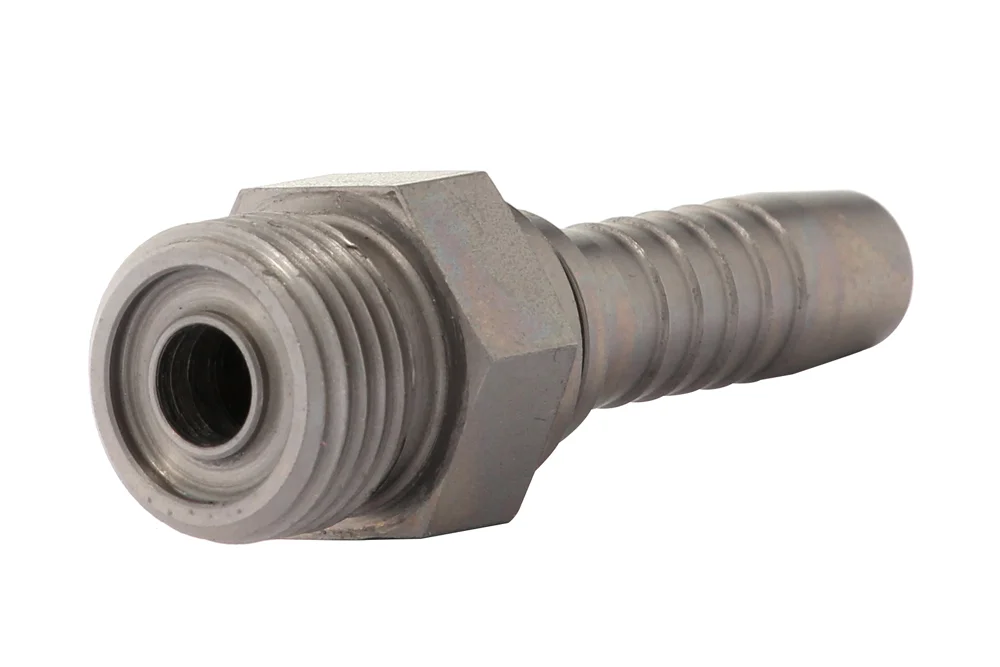

ORFS Hydraulic End ZOZ110, Carbon Steel, Zinc-Nickel

All products, Fittings for high-pressure hoses/

Additional information

Material	CS – steel (cast iron)

The standard hydraulic end type Z is equipped with a classic hydraulic tail for secure hose connection and features an external UNF thread with an integrated O-ring face seal (ORFS), ensuring reliable, leak-free performance even under demanding operating conditions. Engineered for crimping with compatible sleeves tailored to specific hose types, it guarantees a precise and durable fit in both hydraulic and industrial applications. Manufactured from high-quality carbon steel and finished with an advanced zinc-nickel coating of 6–10 µm, this fitting delivers exceptional protection against wear and corrosion, withstanding up to 720 hours in a salt spray chamber without visible damage. Its robust construction and superior surface treatment make it an ideal choice for industries requiring long-lasting reliability, reduced maintenance, and consistent efficiency in high-pressure environments. Designed to meet the highest standards of durability and performance, this hydraulic end ensures optimal safety and extended service life, making it a trusted solution for professionals seeking maximum productivity and cost-effectiveness.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
TI-ZOZ110-09-04-CN	End. ORFS GZ 9/16", hose 1/4", Zn-Ni	6	-
TI-ZOZ110-11-05-CN	End. ORFS GZ 11/16", hose 5/16", Zn-Ni	8	-
TI-ZOZ110-11-06-CN	End. ORFS GZ 11/16", hose 3/8", Zn-Ni	10	-
TI-ZOZ110-13-08-CN	End. ORFS GZ 13/16", hose 1/2", Zn-Ni	12	-
TI-ZOZ110-16-10-CN	End. ORFS GZ 1", hose 5/8", Zn-Ni	16	-
TI-ZOZ110-19-12-CN	End. ORFS GZ 1.3/16", hose 3/4", Zn-Ni	20	-
TI-ZOZ110-23-16-CN	End. ORFS GZ 1.7/16", hose 1", Zn-Ni	25	-
TI-ZOZ110-27-20-CN	End. ORFS GZ 1.11/16", hose 1.1/4", Zn-Ni	32	-
TI-ZOZ110-32-24-CN	End. ORFS GZ 2", hose 1.1/2", Zn-Ni	38	-

The standard hydraulic end type Z is equipped with a classic hydraulic tail for secure hose connection and features an external UNF thread with an integrated O-ring face seal (ORFS), ensuring reliable, leak-free performance even under demanding operating conditions. Engineered for crimping with compatible sleeves tailored to specific hose types, it guarantees a precise and durable fit in both hydraulic and industrial applications. Manufactured from high-quality carbon steel and finished with an advanced zinc-nickel coating of 6–10 µm, this fitting delivers exceptional protection against wear and corrosion, withstanding up to 720 hours in a salt spray chamber without visible damage. Its robust construction and superior surface treatment make it an ideal choice for industries requiring long-lasting reliability, reduced maintenance, and consistent efficiency in high-pressure environments. Designed to meet the highest standards of durability and performance, this hydraulic end ensures optimal safety and extended service life, making it a trusted solution for professionals seeking maximum productivity and cost-effectiveness.
