Can the Hydraulic Pressure Test Kit with Quick Coupler, Gauge-Free, TEMA SYSTEM 100 be used with standard 1/4” BSP gauges and the FM-631 model for accurate measurements?

Yes. The Hydraulic Pressure Test Kit with Quick Coupler, Gauge-Free, TEMA SYSTEM 100 is compatible with any standard 1/4” BSP gauge and is specifically recommended for use with the FM-631 model for optimal results. The kit’s high-quality miniature quick couplings (DN1.2) feature sealed threaded connections with O-rings and integrated valves that maintain tightness even under vacuum, while the measuring holder with vent valve removes air bubbles to improve dynamic pressure accuracy. The hardened steel measuring plugs and precision adapters with NBR sealing ensure durable, leak-free connections. With a working pressure rating up to 600 bar (400 bar for TA-M-120 plugs) and included hoses/adapters, using a 1/4” BSP gauge—particularly the FM-631—will provide accurate and reliable measurements.

Does the Hydraulic Pressure Test Kit with Quick Coupler, Gauge-Free, TEMA SYSTEM 100 support vacuum measurements down to 90% and eliminate air bubbles for accurate dynamic readings?

Hydraulic Pressure Test Kit with Quick Coupler, Gauge-Free, TEMA SYSTEM 100 supports vacuum measurements down to 90% and helps eliminate air bubbles for accurate dynamic readings. The Swedish-manufactured DN1.2 miniature quick couplings have integrated valves that ensure tightness under vacuum conditions up to 90%. Additionally, the included measuring holder features a vent valve specifically for eliminating air bubbles, which significantly improves the accuracy of dynamic pressure readings.

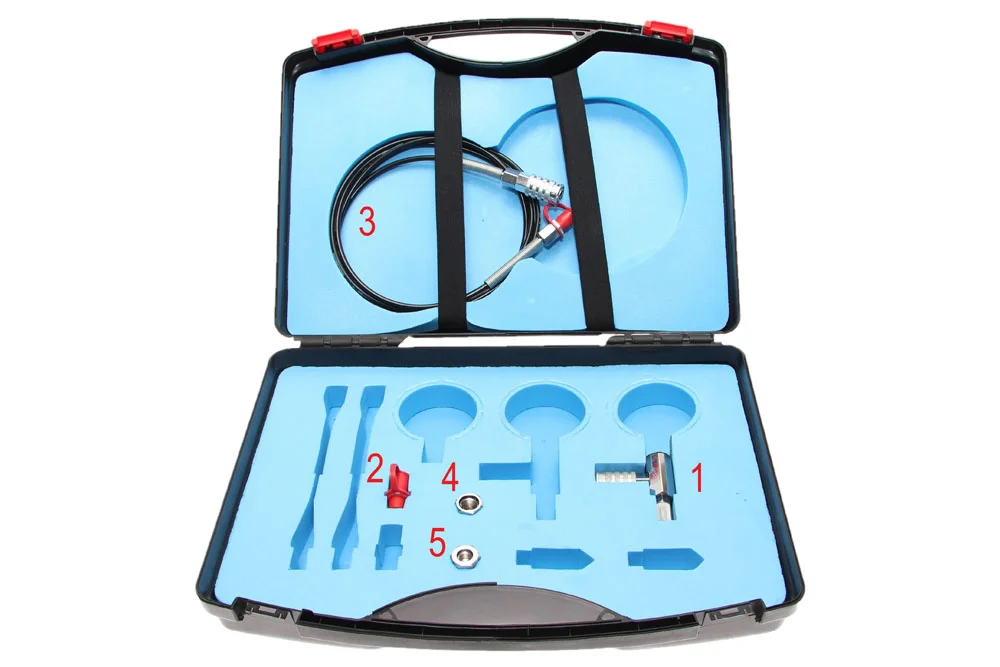

Set for measuring pressure in system hydraulic with quick coupling, without pressure gauges, TEMA SYSTEM 100

All products, Measurement sets/

Additional information

Material	P – material (plastic)

Set equipped in Miniature quick coupling measurement DN1.2 production Swedish intended for measuring pressure static, dynamic and vacuum in systems hydraulic. based on classic the structure quick coupling type „push to connect” with mechanism locking plug consisting with balls, spring and ferrule locking. socket and plug equipped are in valves ensuring Leak-free connection and disconnection and tightness, even at vacuum 90%. plugs measurement made with hardened steel, durable and maintenance-free. connections with thread external sealed using an O-ring recessed in surface front (type A) or an O-ring at surface face (type B). ensures to straight and fast configuring connections. other element set measurement molds pressure gauge (no in set) mounted in holders measurement, adapters and hoses measurement. valve venting in holder measurement allows on removal bubbles air with the system, co increases accuracy measuring pressure dynamic. set It can be used for measurements pressure on machines equipped we plugs measurement TEMA SYSTEM 100 (some machine working e.g. VOLVO, HIAB, SAMSUNG) or through assembly plugs in system during measuring. flexible Adapter TA-M-139 allows on use set for measuring on Widely usedch couplings with thread M16x2. Do measurements using set can use each appropriate type pressure gauge (no in set) with typical connection pressure-gauge with thread external 1/4” BSP. recommended version pressure gauge: pressure gauge 63 mm type FM-631 – Connection with bottom. sealing pressure gauge in the socket handle using washer on thread and an O-ring 10.8×2.2, or washer pressure-gauge inside socket. set supplied is in plastic case and contains the following element: 1. A handle measuring for switching at low pressure (Connection for pressure gauge 1/4” BSP, socket quick coupling, air vent). 2. plug measuring, 1/8″ BSP male, type A, cap plastic. 3. hose measuring (DN2, 630 bar), L=2.5 m with a plug quick coupling TA-M-120 and socket TA-M-150. 4. Adapter, 1/4″ BSP female / 1/8″ BSP male, type A. 5. Adapter, 1/8″ BSP female / 1/4″ BSP male, type B. sealing: NBR rubber. Working pressure: up to 600 bar, for plugs TA-M-120 – 400 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
TA-M-101	Basic measurement set TEMA SYSTEM 100 (without pressure gauges)	-	-	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Set equipped in Miniature quick coupling measurement DN1.2 production Swedish intended for measuring pressure static, dynamic and vacuum in systems hydraulic. based on classic the structure quick coupling type „push to connect” with mechanism locking plug consisting with balls, spring and ferrule locking. socket and plug equipped are in valves ensuring Leak-free connection and disconnection and tightness, even at vacuum 90%. plugs measurement made with hardened steel, durable and maintenance-free. connections with thread external sealed using an O-ring recessed in surface front (type A) or an O-ring at surface face (type B). ensures to straight and fast configuring connections. other element set measurement molds pressure gauge (no in set) mounted in holders measurement, adapters and hoses measurement. valve venting in holder measurement allows on removal bubbles air with the system, co increases accuracy measuring pressure dynamic. set It can be used for measurements pressure on machines equipped we plugs measurement TEMA SYSTEM 100 (some machine working e.g. VOLVO, HIAB, SAMSUNG) or through assembly plugs in system during measuring. flexible Adapter TA-M-139 allows on use set for measuring on Widely usedch couplings with thread M16x2. Do measurements using set can use each appropriate type pressure gauge (no in set) with typical connection pressure-gauge with thread external 1/4” BSP. recommended version pressure gauge: pressure gauge 63 mm type FM-631 – Connection with bottom. sealing pressure gauge in the socket handle using washer on thread and an O-ring 10.8×2.2, or washer pressure-gauge inside socket. set supplied is in plastic case and contains the following element: 1. A handle measuring for switching at low pressure (Connection for pressure gauge 1/4” BSP, socket quick coupling, air vent). 2. plug measuring, 1/8″ BSP male, type A, cap plastic. 3. hose measuring (DN2, 630 bar), L=2.5 m with a plug quick coupling TA-M-120 and socket TA-M-150. 4. Adapter, 1/4″ BSP female / 1/8″ BSP male, type A. 5. Adapter, 1/8″ BSP female / 1/4″ BSP male, type B. sealing: NBR rubber. Working pressure: up to 600 bar, for plugs TA-M-120 – 400 bar.
