Is the Hydraulic 3-Way "L" Valve with BSP Internal Thread, Type BK3LX compatible with both directional control and flow-diverting hydraulic circuits under high-pressure conditions?

Yes. The Hydraulic 3-Way "L" Valve with BSP Internal Thread, Type BK3LX is compatible with both directional control and flow-diverting hydraulic circuits under high-pressure conditions. Rationale: - Robust all-steel construction (body, ball, stem) provides high mechanical strength and pressure resistance suitable for demanding, high-pressure systems. - L-port (three-way "L") geometry is specifically designed for flow diversion between two outlet ports or for directional switching, making it suitable for both circuit types. - Reliable sealing: POM ball seals (operational −40°C to +100°C) ensure smooth, wear-resistant operation; NBR stem seals (−20°C to +100°C) maintain tightness under load, supporting leak-free performance at elevated pressures. - Integrated mounting holes and BSP internal threads enable secure, stable installation to withstand pressure-related stresses. Note: Confirm specific maximum operating pressure with the manufacturer/datasheet to ensure compatibility with your system’s exact pressure rating.

Can the Hydraulic 3-Way "L" Valve with BSP Internal Thread, Type BK3LX withstand continuous operation in hydraulic systems with pressures above standard industrial ratings without accelerated wear?

Hydraulic 3-Way "L" Valve with BSP Internal Thread, Type BK3LX is designed for high‑pressure hydraulic systems and built entirely from durable steel (body, ball, stem), which provides strong resistance to mechanical stress. High‑quality seals — POM on the ball (–40°C to +100°C) and NBR on the stem (–20°C to +100°C) — support smooth operation and tightness under typical industrial conditions. Integrated mounting holes and compact, solid construction further promote stable installation and reduced mechanical strain. However, continuous operation above standard industrial pressure ratings increases risk of accelerated wear and seal degradation regardless of base materials. While BK3LX’s robust design and materials improve endurance compared with lower‑grade valves, long‑term reliable operation above rated pressures depends on exact pressure magnitude, duty cycle, fluid cleanliness, temperature, and maintenance. For safe continuous use above standard ratings, consult the manufacturer for maximum allowable working pressure, perform application‑specific testing, and implement appropriate maintenance and filtration.

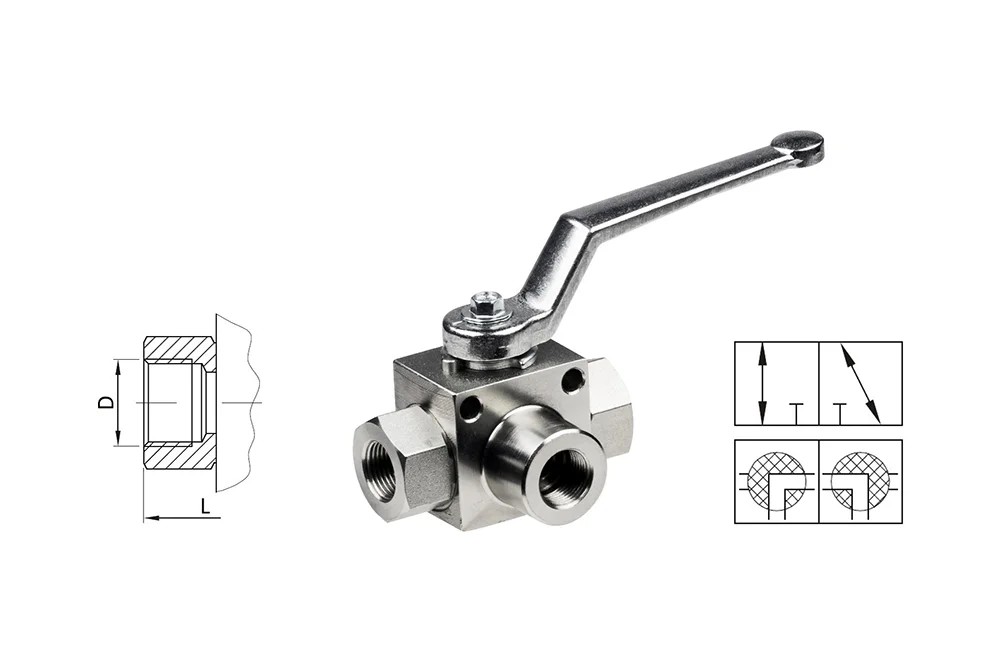

Valve hydraulic three-way “L” with thread internal BSP, type BK3LX

All products, Directional control valves/

Additional information

Material	CS – steel (cast iron)

High quality three-way ball valve type “L” with threads internal BSP and holes mounting in body, intended for high-pressure installation hydraulic. Material: steel (body, ball, stem). seal: POM (ball), NBR (stem). Operating temperature: od -40°C up to +100°C (POM); od -20°C up to +100°C (NBR).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HZ-BK3L-G-04X	Valve three-way "L" DN6 with 1/4" BSP female, POM/NBR	6	500	In stock	Enquiry
HZ-BK3L-G-06X	Valve three-way "L" DN10 with 3/8" BSP female, POM/NBR	10	500	In stock	Enquiry
HZ-BK3L-G-08X	Valve three-way "L" DN13 with 1/2" BSP female, POM/NBR	12	500	In stock	Enquiry
HZ-BK3L-G-12X	Valve three-way "L" DN20 with 3/4" BSP female, POM/NBR	20	500	In stock	Enquiry
HZ-BK3L-G-16X	Valve three-way "L" DN25 with 1" BSP female, POM/NBR	25	500	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

High quality three-way ball valve type “L” with threads internal BSP and holes mounting in body, intended for high-pressure installation hydraulic. Material: steel (body, ball, stem). seal: POM (ball), NBR (stem). Operating temperature: od -40°C up to +100°C (POM); od -20°C up to +100°C (NBR).
