Is the Hydraulic 2-Way Valve with NPT Female Thread, Type BKH compatible with fluids other than hydraulic oil and high temperatures?

Hydraulic 2-Way Valve with NPT Female Thread, Type BKH Format: The valve is primarily designed for hydraulic oil and general industrial media within its specified temperature range. It is made entirely of steel, with PA (ball) and NBR (stem) seals; PA seals operate from −40°C to +100°C and NBR seals from −20°C to +100°C. Compatibility with fluids other than hydraulic oil and with higher temperatures depends on the chemical compatibility and temperature limits of these sealing materials. For media that may attack PA or NBR, aggressive chemicals, or for extended service above +100°C, the valve may not be suitable without seal or material changes. Professional consultation with Tubes International is recommended to verify compatibility and select appropriate sealing materials or modifications for non-hydraulic fluids or elevated temperatures.

Can the Hydraulic 2-Way Valve with NPT Female Thread, Type BKH be used with aggressive or abrasive fluids without additional modifications?

Hydraulic 2-Way Valve with NPT Female Thread, Type BKH Format: No — not automatically. The valve is steel construction with PA (ball) and NBR (stem) seals and is primarily specified for hydraulic oil and typical industrial fluids within the stated temperature ranges. Aggressive (chemically corrosive) or highly abrasive fluids can attack the seals and/or accelerate wear on internal parts; higher temperatures also affect seal compatibility. For media other than hydraulic oil or for elevated operating conditions the description explicitly recommends professional consultation with Tubes International to select suitable seal materials or modifications. In short: do not use with aggressive or abrasive fluids without consulting the manufacturer and likely specifying alternative seal materials or protective measures.

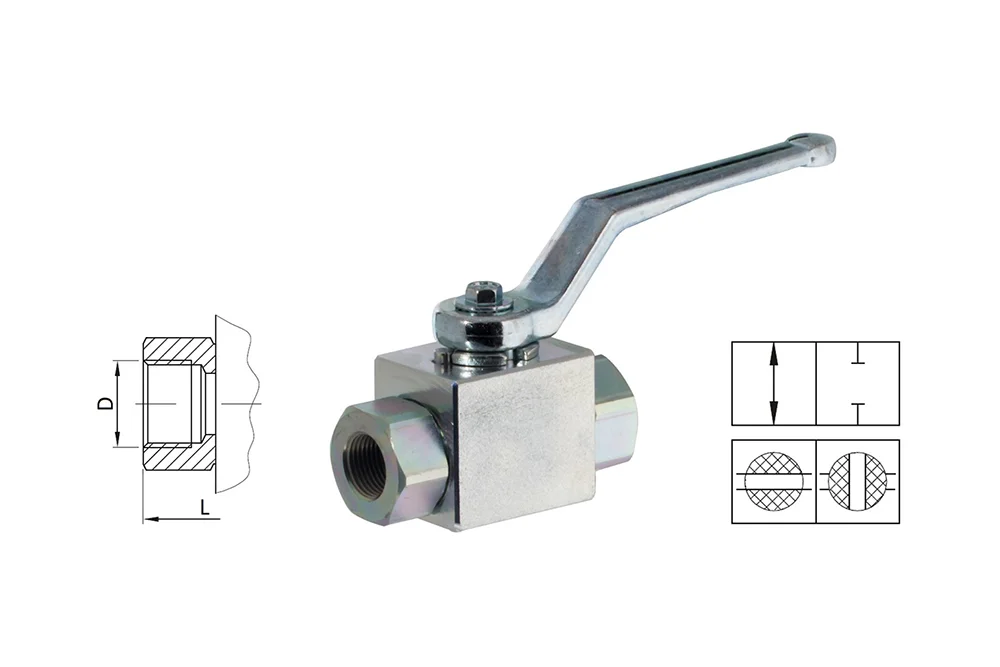

Hydraulic 2-Way Valve with NPT Female Thread, Type BKH

All products, Directional control valves/

Additional information

Material	CS – steel (cast iron)

The BKH two-way ball valve with internal NPT thread is a robust and reliable solution designed for demanding hydraulic and industrial systems operating under high pressure. Manufactured entirely from durable steel, including the body, ball, and stem, it ensures long-lasting performance even in intensive applications. The valve is equipped with high-quality seals – PA for the ball and NBR for the stem – providing dependable tightness and resistance to wear. Its operating temperature range extends from -40°C to +100°C for PA seals and from -20°C to +100°C for NBR seals, making it suitable for a wide variety of working conditions. The maximum working pressure depends on the selected sealing material, ensuring optimal adaptation to specific system requirements. For applications involving media other than hydraulic oil or for elevated operating temperatures, professional consultation with Tubes International is recommended to guarantee the best technical match. This valve combines precision engineering with durability, offering a safe and efficient solution for modern hydraulic and industrial installations.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HZ-BKH-N-02	Two-way valve DN4 with 1/8" NPT thread, PA/NBR	4	500	In stock	Enquiry
HZ-BKH-N-04	Two-way valve DN6 with 1/4" NPT thread, PA/NBR	6	500	In stock	Enquiry
HZ-BKH-N-06	Two-way valve DN10 with 3/8" NPT thread, PA/NBR	10	500	In stock	Enquiry
HZ-BKH-N-08	Two-way valve DN13 with 1/2" NPT thread, PA/NBR	12	500	In stock	Enquiry
HZ-BKH-N-12	Two-way valve DN20 with 3/4" NPT thread, PA/NBR	20	400	In stock	Enquiry
HZ-BKH-N-16	Two-way valve DN25 with 1" NPT thread, PA/NBR	25	350	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The BKH two-way ball valve with internal NPT thread is a robust and reliable solution designed for demanding hydraulic and industrial systems operating under high pressure. Manufactured entirely from durable steel, including the body, ball, and stem, it ensures long-lasting performance even in intensive applications. The valve is equipped with high-quality seals – PA for the ball and NBR for the stem – providing dependable tightness and resistance to wear. Its operating temperature range extends from -40°C to +100°C for PA seals and from -20°C to +100°C for NBR seals, making it suitable for a wide variety of working conditions. The maximum working pressure depends on the selected sealing material, ensuring optimal adaptation to specific system requirements. For applications involving media other than hydraulic oil or for elevated operating temperatures, professional consultation with Tubes International is recommended to guarantee the best technical match. This valve combines precision engineering with durability, offering a safe and efficient solution for modern hydraulic and industrial installations.
