Can the DIN 32676-A sanitary valve with TRICLOVER fittings, stainless steel AISI 304 be steam sterilized at +120°C for short cycles without damaging the VMQ (silicone) seal?

Yes — the DIN 32676-A sanitary valve with TRICLOVER fittings, stainless steel AISI 304 can be steam sterilized at +120°C for short cycles without damaging the VMQ (silicone) seal. The product specification explicitly states a standard operating range of -20°C to +100°C with the option for short steam sterilization up to +120°C. The VMQ seal is PZH-certified and designed for hygienic industry use, so occasional brief exposure to 120°C steam is within the allowed conditions. Limitations and recommendations: - Limit sterilization to short cycles only (as specified); repeated or prolonged exposure above +100°C may reduce seal life. - After steam sterilization, inspect the seal periodically for wear, hardening or compression set when used frequently at the upper temperature limit. - Follow manufacturer cleaning instructions (mild acidic/alkaline solutions up to +70°C) and avoid aggressive chemicals or sustained high temperatures to preserve seal performance.

Is the DIN 32676-A sanitary valve with TRICLOVER fittings, stainless steel AISI 304 compatible with cleaning using mild acidic or alkaline solutions up to +70°C without seal degradation?

Yes. The DIN 32676-A sanitary valve with TRICLOVER fittings, stainless steel AISI 304 is compatible with cleaning using mild acidic or alkaline solutions up to +70°C without seal degradation. The valve is specified for cleaning with mild acidic or alkaline solutions up to +70°C and is fitted with a VMQ (silicone) seal certified by PZH, designed for hygienic applications and the stated temperature range. Ensure cleaning agents are within “mild” concentration limits recommended by the chemical supplier and follow recommended contact times to preserve seal life.

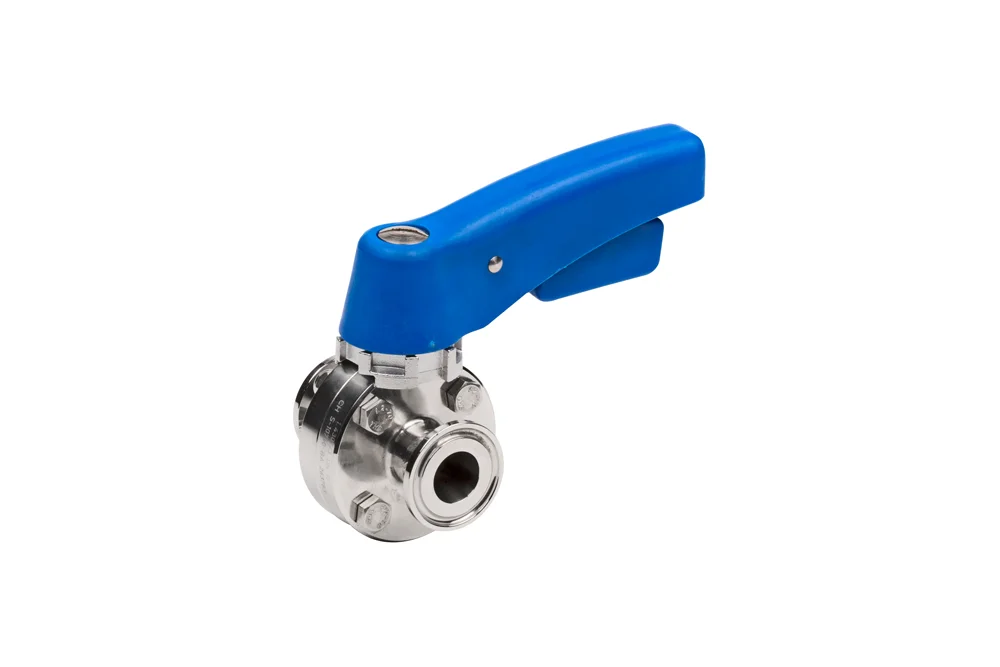

DIN 32676-A sanitary valve with TRICLOVER fittings, stainless steel AISI 304

All products, Hygienic valves/

Additional information

Material	SS – stainless steel

The stainless steel hygienic valve with TRICLOVER connections is designed for demanding applications in the food, pharmaceutical, cosmetic, biotechnology, and chemical industries, ensuring full compliance with sanitary standard 3-A (63-03 and 78-01). Manufactured from durable AISI 304 steel and equipped with a VMQ (silicone) seal certified by PZH, it guarantees safety and reliability in processes requiring the highest hygiene. The precisely finished internal surface with roughness Ra < 0.8 µm minimizes the risk of contamination and facilitates easy cleaning. The valve operates within a wide temperature range from -20°C to +100°C, with the option of short steam sterilization up to +120°C and cleaning with mild acidic or alkaline solutions up to +70°C. Offering tightness class A according to DIN EN 12266-1 and a working pressure of 10 bar, it ensures secure and efficient flow control. For sizes DN10 to DN20, the valve is equipped with a practical plastic lever, making it user-friendly and versatile. This solution combines robust construction with hygienic design, making it an excellent choice for industries where product purity and process safety are top priorities.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NM-DIN-CC-010	Hygienic valve DN10, DIN 32676-A, 34 TC/34 TC, VMQ, AISI304	10	10	In stock	Enquiry
NM-DIN-CC-015	Hygienic valve DN15, DIN 32676-A, 34 TC/34 TC, VMQ, AISI304	16	10	In stock	Enquiry
NM-DIN-CC-020	Hygienic valve DN20, DIN 32676-A, 34 TC/34 TC, VMQ, AISI304	20	10	In stock	Enquiry
NM-DIN-CC-025	Hygienic valve DN25, DIN 32676-A, 50.5TC/50.5TC, VMQ, AISI304	25	10	In stock	Enquiry
NM-DIN-CC-032	Hygienic valve DN32, DIN 32676-A, 50.5TC/50.5TC, VMQ, AISI304	32	10	In stock	Enquiry
NM-DIN-CC-040	Hygienic valve DN40, DIN 32676-A, 50.5TC/50.5TC, VMQ, AISI304	40	10	In stock	Enquiry
NM-DIN-CC-050	Hygienic valve DN50, DIN 32676-A, 64TC/64TC, VMQ, AISI304	50	10	In stock	Enquiry
NM-DIN-CC-065	Hygienic valve DN65, DIN 32676-A, 91TC/91TC, VMQ, AISI304	65	10	In stock	Enquiry
NM-DIN-CC-080	Hygienic valve DN80, DIN 32676-A, 106TC/106TC, VMQ, AISI304	80	10	In stock	Enquiry
NM-DIN-CC-100	Hygienic valve DN100, DIN 32676-A, 119TC/119TC, VMQ, AISI304	100	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The stainless steel hygienic valve with TRICLOVER connections is designed for demanding applications in the food, pharmaceutical, cosmetic, biotechnology, and chemical industries, ensuring full compliance with sanitary standard 3-A (63-03 and 78-01). Manufactured from durable AISI 304 steel and equipped with a VMQ (silicone) seal certified by PZH, it guarantees safety and reliability in processes requiring the highest hygiene. The precisely finished internal surface with roughness Ra < 0.8 µm minimizes the risk of contamination and facilitates easy cleaning. The valve operates within a wide temperature range from -20°C to +100°C, with the option of short steam sterilization up to +120°C and cleaning with mild acidic or alkaline solutions up to +70°C. Offering tightness class A according to DIN EN 12266-1 and a working pressure of 10 bar, it ensures secure and efficient flow control. For sizes DN10 to DN20, the valve is equipped with a practical plastic lever, making it user-friendly and versatile. This solution combines robust construction with hygienic design, making it an excellent choice for industries where product purity and process safety are top priorities.
