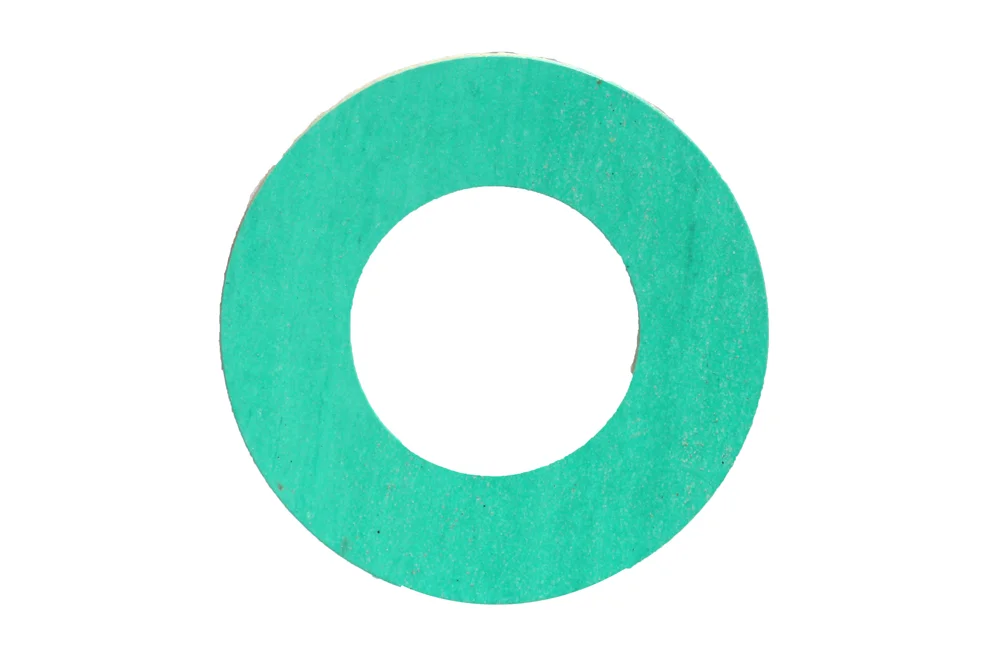

A flat IBC gasket for a flange PN made acc. to standards PN-EN 1514-1. The permissible pressure working, at which can be used a given gasket depends od temperatures and kinds medium (selection should agree with TUBES INTERNATIONAL®). at selecting the gasket should pay attention on dimension diameter outer, appropriate for class flange. For example: a gasket DN 10 PN40 is suitable for class PN10, PN16 and PN25. Material: KLINGER SIL 4430. Working pressure: up to 100 bar. Operating temperature: od -200°C up to +400°C.
List of product variants
Article number
Product variant name
DN
BAR
Availability
Price
Quantity
Actions
Catalogue
TK-UK-IBC-PN10-250-4430-2
Seal IBC for flange PN10 DN250, group 2, KLINGER SIL4430
A flat IBC gasket for a flange PN made acc. to standards PN-EN 1514-1. The permissible pressure working, at which can be used a given gasket depends od temperatures and kinds medium (selection should agree with TUBES INTERNATIONAL®). at selecting the gasket should pay attention on dimension diameter outer, appropriate for class flange. For example: a gasket DN 10 PN40 is suitable for class PN10, PN16 and PN25. Material: KLINGER SIL 4430. Working pressure: up to 100 bar. Operating temperature: od -200°C up to +400°C.
Additional information
Maximum operating temperature [°C]
400
Minimum operating temperature [°C]
-200
