What maintenance is required to ensure reliable operation of the Double-acting ISO 15552 Series 3 Actuator with Magnet and Cushioning?

To ensure reliable operation of the Double-acting ISO 15552 Series 3 Actuator with Magnet and Cushioning, perform the following maintenance: - Regular inspection: check external surfaces, mounting grooves and sensor alignment for damage, corrosion or wear; ensure cover and sleeve are securely fixed. - Seal monitoring and replacement: inspect NBR and polyurethane seals for wear, hardening or leakage; replace seals at first sign of degradation or per operating-hour schedule. - Lubrication: use manufacturer-recommended light pneumatic lubricant where applicable; avoid over-lubrication that attracts contaminants. For pre-lubricated units follow interval checks only. - Cushioning adjustment: verify cushioning settings and adjust to prevent hard stops; inspect cushioning components for wear and correct operation. - Cleanliness: keep anodized aluminum sleeve and smooth external surfaces free of dust, debris and corrosive residues; clean with mild detergents and non-abrasive cloths. - Pressure and temperature checks: operate within 0.4–10 bar and -10°C–+80°C; monitor system pressure for spikes or drops that could stress the actuator. - Sensor and groove care: ensure sensors mounted in integrated grooves remain aligned, secure and free of interference; check electrical connections at power supply ports. - Fastener and mounting integrity: periodically torque-check fasteners and mounting hardware to maintain alignment and prevent play. - Functional testing: cycle the actuator under load to confirm smooth movement, correct stroke (50–800 mm), magnet sensor signals and absence of leaks or abnormal noise. - Recordkeeping: log inspections, replacements and incidents to predict service intervals and prevent unexpected downtime. Follow manufacturer-specific service intervals and parts specifications for best results.

Double-acting ISO 15552 Series 3 Actuator with Magnet and Cushioning

Q: How do I choose the correct piston diameter and stroke length for my Double-acting ISO 15552 Series 3 Actuator with Magnet and Cushioning to match my application’s force and space requirements?

To choose the correct piston diameter and stroke length for your Double-acting ISO 15552 Series 3 Actuator with Magnet and Cushioning, follow these steps: 1. Determine required force: - Calculate required output force at the piston: Force = load (N) + friction + any external forces (incline, acceleration). - Convert required force to supply pressure: Pressure (bar) = Force (N) / (π·(D/2)^2) / 10^5·10^5 converts N/m² to bar — simpler: required pressure ≈ Force / piston area. Choose a piston diameter whose area at available operating pressure (0.4–10 bar) produces the needed force with margin (typical safety factor 1.25–1.5). 2. Check pressure and seal limits: - Ensure the required pressure stays within actuator operating range (0.4–10 bar) and is compatible with NBR and polyurethane seals and temperature range (−10°C to +80°C). 3. Select stroke length: - Choose the minimum stroke that allows full travel for the application (workpiece movement, timing, tooling) plus clearance for cushioning. Available strokes: 50–800 mm. - Consider mounting space and cycle dynamics: longer strokes may slow cycle times and require more air volume; ensure space fits the actuator’s overall length. 4. Verify sensors and mounting: - Use integrated grooves for sensors aligned with power ports to detect piston position (magnet). Make sure sensor positions match chosen stroke and switching points. 5. Practical checks: - Confirm selected piston diameter is within available sizes (Ø32–100 mm). - Validate actuator mass, installation space, and end-of-stroke cushioning needs. - If near limits, choose next larger diameter or reduce load or increase pressure to keep safety margin. If you provide load (N or kg), required travel, cycle speed, and available system pressure, I can calculate recommended piston diameter and stroke length.

All products, Pneumatic actuators/

Additional information

Maximum operating temperature [°C]	80
Minimum operating temperature [°C]	-10

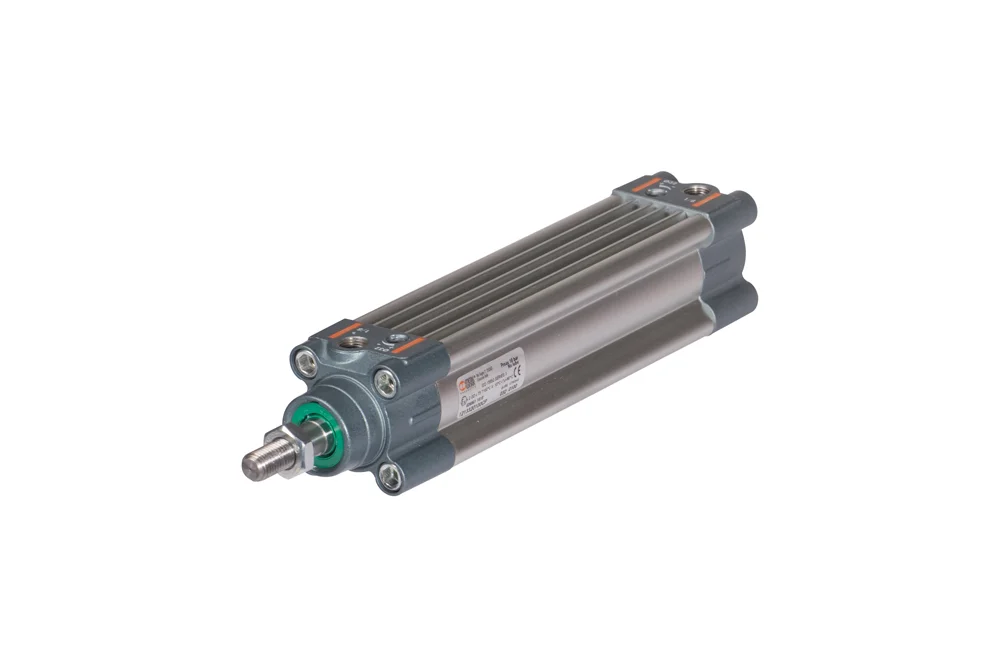

The double-acting actuator with magnet and damping, compliant with ISO 15552 series 3, is designed for high performance and durability in demanding industrial environments. Its lightweight construction is achieved through a specially engineered sleeve made of anodized, calibrated aluminum, ensuring both strength and reduced mass for easier handling and installation. Two integrated grooves allow for precise sensor mounting on the same plane as the power supply ports, optimizing space and simplifying assembly, while the smooth external surfaces facilitate effortless cleaning and maintenance. The actuator cover, manufactured from high-pressure aluminum casting, guarantees robustness and long service life even under intensive use. Available with piston diameters ranging from Ø 32 to 100 mm and stroke lengths between 50 and 800 mm, it offers versatile application possibilities across various automation systems. Operating efficiently within a pressure range of 0.4 to 10 bar, the actuator is equipped with reliable NBR and polyurethane seals, ensuring excellent resistance to wear and leakage. Designed to perform in temperatures from -10°C to +80°C, this actuator combines precision, durability, and adaptability, making it an ideal solution for industries seeking efficiency, reliability, and optimized performance in pneumatic automation.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-1213320050CP	Actuator VDMA ISO 15552 32-0050	-	10	In stock	Enquiry
MW-1213320100CP	Actuator VDMA ISO 15552 32-0100	-	10	In stock	Enquiry
MW-1213320800XP	Actuator VDMA ISO 15552 32-0800	-	10	In stock	Enquiry
MW-1213500500XP	Actuator VDMA ISO 15552 50-0500	-	10	In stock	Enquiry
MW-1213630150CP	Actuator VDMA ISO 15552 63-0150	-	10	In stock	Enquiry
MW-1213800050AP	Actuator VDMA ISO 15552 80-0050	-	10	In stock	Enquiry
MW-1213800100AP	Actuator VDMA ISO 15552 80-0100	-	10	In stock	Enquiry
MW-1213800400AN	Actuator VDMA ISO 15552 80-0400	-	10	In stock	Enquiry
MW-1213A10150AP	Actuator VDMA ISO 15552 100-0150	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The double-acting actuator with magnet and damping, compliant with ISO 15552 series 3, is designed for high performance and durability in demanding industrial environments. Its lightweight construction is achieved through a specially engineered sleeve made of anodized, calibrated aluminum, ensuring both strength and reduced mass for easier handling and installation. Two integrated grooves allow for precise sensor mounting on the same plane as the power supply ports, optimizing space and simplifying assembly, while the smooth external surfaces facilitate effortless cleaning and maintenance. The actuator cover, manufactured from high-pressure aluminum casting, guarantees robustness and long service life even under intensive use. Available with piston diameters ranging from Ø 32 to 100 mm and stroke lengths between 50 and 800 mm, it offers versatile application possibilities across various automation systems. Operating efficiently within a pressure range of 0.4 to 10 bar, the actuator is equipped with reliable NBR and polyurethane seals, ensuring excellent resistance to wear and leakage. Designed to perform in temperatures from -10°C to +80°C, this actuator combines precision, durability, and adaptability, making it an ideal solution for industries seeking efficiency, reliability, and optimized performance in pneumatic automation.
