Is the ISO-A Hydraulic Bulkhead Socket, Metric GZ, Valve, Push-Pull, PPV3 fully interchangeable with other ISO-A couplings and suitable for agricultural euro coupling applications?

Yes. The ISO-A Hydraulic Bulkhead Socket, Metric GZ, Valve, Push-Pull, PPV3 is described as a fully interchangeable ISO-A quick coupling compatible with ISO-A couplings from other manufacturers. Its push-pull shut-off valve, external metric thread, galvanised steel construction and NBR sealing make it suitable for hydraulic oil power systems and common agricultural “euro coupling” applications. Rated to 250 bar with a 4:1 safety factor and operable from −25°C to +100°C, it meets the durability, pressure and temperature requirements typical for agricultural use.

Can the ISO-A Hydraulic Bulkhead Socket, Metric GZ, Valve, Push-Pull, PPV3 withstand continuous operation at 250 bar in harsh outdoor agricultural environments?

Yes. The ISO-A Hydraulic Bulkhead Socket, Metric GZ, Valve, Push-Pull, PPV3 is rated for a working pressure of 250 bar with a 4:1 safety factor, manufactured from galvanized steel with NBR seals and designed for hydraulic oil in power hydraulics. These features — specified working pressure, robust corrosion- and wear-resistant construction, and temperature-rated NBR sealing (-25°C to +100°C) — indicate it is suitable for continuous operation at 250 bar in harsh outdoor agricultural environments, provided application conditions stay within the stated temperature range and fluid compatibility. Regular inspection and maintenance (checking seals, threads, and galvanization) and avoiding pressures or temperatures beyond specifications are recommended to ensure long-term reliability.

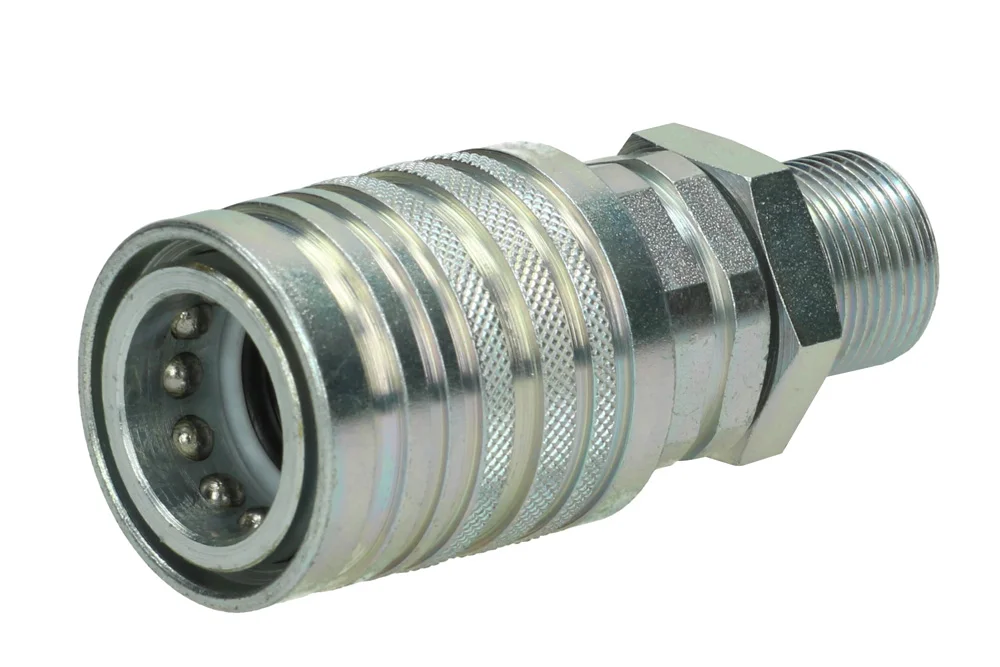

ISO-A hydraulic bulkhead quick-coupling socket with male thread metric with valve, PUSH PULL, type PPV3

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)

ISO-A hydraulic bulkhead quick-coupling socket with a shut-off valve and thread external metric. version “push-pull” – Automatic disconnection at accidental tensioning line. Application: hydraulics power (oil hydraulic). quick coupling used mainly in machines agricultural. Commonly called “euro couplings”. interchangeable with quick coupling ISO-A other manufacturers. Material: steel galvanized. sealing socket: NBR (temperature use od -25°C up to +100°C). Working pressure: 250 bar. Safety factor 4:1. Flow rate has been stated for a drop pressure 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DP-PPV3-1316502	Socket DN12 with M16x1.5 male (10L), bulkhead, seal NBR	-	250	In stock	Enquiry
DP-PPV3-1318502	Socket DN12 with M18x1.5 male (12L), bulkhead, seal NBR	-	250	In stock	Enquiry
DP-PPV3-1322502	Socket DN12 with M22x1.5 male (15L), bulkhead, seal NBR	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

ISO-A hydraulic bulkhead quick-coupling socket with a shut-off valve and thread external metric. version “push-pull” – Automatic disconnection at accidental tensioning line. Application: hydraulics power (oil hydraulic). quick coupling used mainly in machines agricultural. Commonly called “euro couplings”. interchangeable with quick coupling ISO-A other manufacturers. Material: steel galvanized. sealing socket: NBR (temperature use od -25°C up to +100°C). Working pressure: 250 bar. Safety factor 4:1. Flow rate has been stated for a drop pressure 3 bar.
