Is the JIC Plug with Stainless Steel UNF Thread, Type VKA compatible with 37° female ports and rated for high‑pressure hydraulic systems?

Yes. The JIC Plug with Stainless Steel UNF Thread, Type VKA is specifically designed for use with 37° female ports (internal 37° cone) and provides a secure, leak‑free seal when fitted correctly. Manufactured from AISI 316 stainless steel, it offers excellent corrosion resistance and chemical compatibility for hydraulic, pneumatic and industrial fluid systems. The description also notes it is engineered for high pressure — its robust construction and precise UNF threading deliver durable performance and reliable sealing in demanding, high‑pressure hydraulic applications.

Does the JIC Plug with Stainless Steel UNF Thread, Type VKA require any special torque or installation procedure to ensure a reliable 37° cone seal under high‑pressure conditions?

Yes. The JIC Plug with Stainless Steel UNF Thread, Type VKA requires correct installation to ensure a reliable 37° cone seal under high‑pressure conditions: - Clean mating surfaces and threads of debris, burrs, and contamination to prevent misalignment and impaired sealing. - Inspect the 37° cone seat and plug for damage or nicks; any imperfection can compromise a metal‑to‑metal seal at high pressure. - Use correct thread engagement: hand‑start the plug to avoid cross‑threading, then tighten with a calibrated wrench. - Apply torque consistent with component size and material: while the product description does not specify a value, use manufacturer torque charts for AISI 316 UNF fittings or industry standards for JIC fittings of the same size. Over‑torquing can deform the cone and under‑torquing can leak. - For high‑pressure service, prefer a torque wrench and incremental tightening (hand tight + controlled final torque). - If required by system practice, use a thread lubricant or anti‑seize compatible with AISI 316 and system fluid to achieve consistent torque readings; avoid sealants that interfere with the metal cone seal. - After installation, perform a hydrostatic or pressure test at or above operating pressure to verify leak‑free sealing. If you need, provide the plug size and system pressure and I can recommend a specific torque value and step‑by‑step procedure.

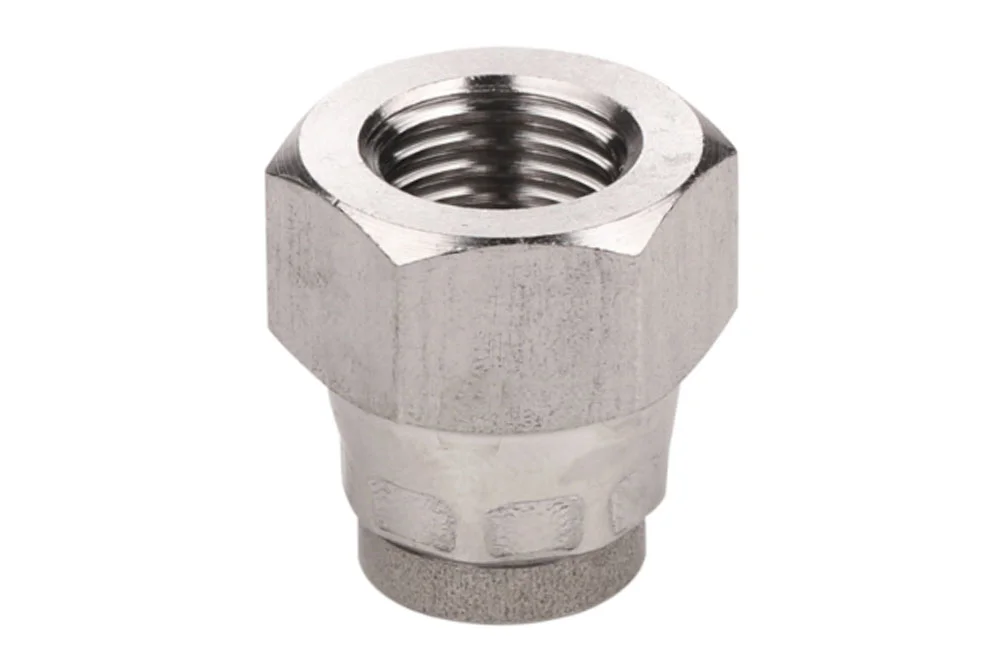

JIC Plug with Stainless Steel UNF Thread, Type VKA

Additional information

Material	SS – stainless steel

The JIC 37° plug with internal UNF thread is a high‑precision component designed for secure and reliable sealing on the internal 37° cone. Manufactured from premium AISI 316 stainless steel, it ensures outstanding resistance to corrosion, aggressive media, and demanding environmental conditions, making it ideal for use in hydraulic, pneumatic, and industrial fluid systems. Its robust construction guarantees long‑lasting performance, while the precise threading allows for easy installation and a tight, leak‑free connection. Engineered to meet the highest standards of safety and durability, this plug is the perfect solution for applications requiring dependable sealing, extended service life, and consistent efficiency even under high pressure.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HJ-VKA-07-SS	Plug with GW JIC 7/16"-20, AISI 316	-	450	In stock	Enquiry
HJ-VKA-08-SS	Plug with GW JIC 1/2"-20, AISI 316	-	350	In stock	Enquiry
HJ-VKA-09-SS	Plug with GW JIC 9/16"-18, AISI 316	-	350	In stock	Enquiry
HJ-VKA-12-SS	Plug with GW JIC 3/4"-16, AISI 316	-	350	In stock	Enquiry
HJ-VKA-14-SS	Plug with GW JIC 7/8"-14, AISI 316	-	350	In stock	Enquiry
HJ-VKA-17-SS	Plug with GW JIC 1.1/16"-12, AISI 316	-	350	In stock	Enquiry
HJ-VKA-21-SS	Plug with GW JIC 1.5/16"-12, AISI 316	-	290	In stock	Enquiry
HJ-VKA-26-SS	Plug with GW JIC 1.5/8"-12, AISI 316	-	240	In stock	Enquiry
HJ-VKA-30-SS	Plug with GW JIC 1.7/8"-12, AISI 316	-	240	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The JIC 37° plug with internal UNF thread is a high‑precision component designed for secure and reliable sealing on the internal 37° cone. Manufactured from premium AISI 316 stainless steel, it ensures outstanding resistance to corrosion, aggressive media, and demanding environmental conditions, making it ideal for use in hydraulic, pneumatic, and industrial fluid systems. Its robust construction guarantees long‑lasting performance, while the precise threading allows for easy installation and a tight, leak‑free connection. Engineered to meet the highest standards of safety and durability, this plug is the perfect solution for applications requiring dependable sealing, extended service life, and consistent efficiency even under high pressure.
