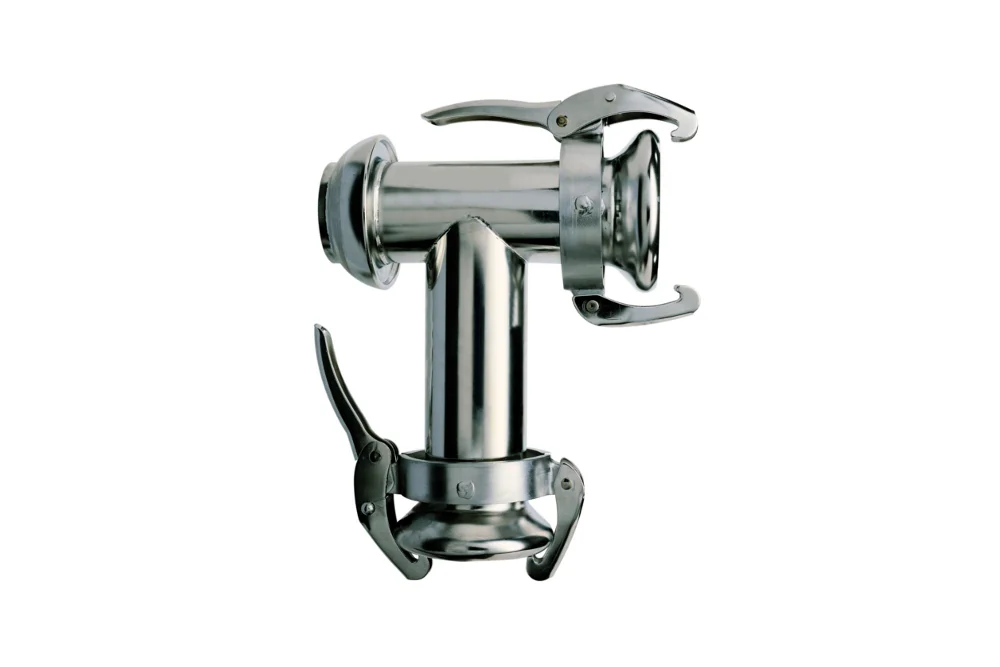

Tee lever coupling LAUX 42 plug-socket / socket, steel carbon, KTH

Additional information

Material

CS – steel (cast iron)

Tee lever coupling LAUX 42 plug-socket / socket with wide application e.g.: for conveying and unloading bulk materials (grain, flour, feed, granulates, cement, minerals), for pumps pressure and vacuum, for construction temporary installation water and aircraft in construction, mining, agriculture, for systems irrigation. When selecting coupling for medium other than water should pay attention attention on correct selection material the gasket. The standard seal is an EPDM gasket. Material: steel carbon, galvanized. maximum Working pressure: 12.5 bar (for liquids), 8 bar (for air). Vacuum tightness. Operating temperature: od -50°C up to +120°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TF-KTH-048-048Tee KTH plug-socket 48 mm / socket 48 mm, galvanized steel-12.5In stock0 €
Enquiry
TF-KTH-076-048Tee KTH plug-socket 76 mm / socket 48 mm, galvanized steel-12.5In stock0 €
Enquiry
TF-KTH-076-076Tee KTH plug-socket 76 mm / socket 76 mm, galvanized steel-12.5In stock0 €
Enquiry
TF-KTH-102-048Tee KTH plug-socket 102 mm / socket 48 mm, galvanized steel-12.5In stock0 €
Enquiry
TF-KTH-102-076Tee KTH plug-socket 102 mm / socket 76 mm, galvanized steel-12.5In stock0 €
Enquiry
TF-KTH-102-102Tee KTH plug-socket 102 mm / socket 102 mm, galvanized steel-12.5In stock0 €
Enquiry
TF-KTH-133-076Tee KTH plug-socket 133 mm / socket 76 mm, galvanized steel-12.5In stock0 €
Enquiry
TF-KTH-133-102Tee KTH plug-socket 133 mm / socket 102 mm, galvanized steel-12.5In stock0 €
Enquiry
TF-KTH-133-133Tee KTH plug-socket 133 mm / socket 133 mm, galvanized steel-12.5In stock0 €
Enquiry
TF-KTH-152-102Tee KTH plug-socket 152 mm / socket 102 mm, galvanized steel-12.5In stock0 €
Enquiry
TF-KTH-152-133Tee KTH plug-socket 152 mm / socket 133 mm, galvanized steel-12.5In stock0 €
Enquiry
TF-KTH-152-152Tee KTH plug-socket 152 mm / socket 152 mm, galvanized steel-12.5In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Tee lever coupling LAUX 42 plug-socket / socket with wide application e.g.: for conveying and unloading bulk materials (grain, flour, feed, granulates, cement, minerals), for pumps pressure and vacuum, for construction temporary installation water and aircraft in construction, mining, agriculture, for systems irrigation. When selecting coupling for medium other than water should pay attention attention on correct selection material the gasket. The standard seal is an EPDM gasket. Material: steel carbon, galvanized. maximum Working pressure: 12.5 bar (for liquids), 8 bar (for air). Vacuum tightness. Operating temperature: od -50°C up to +120°C.

Additional information

Material

CS – steel (cast iron)

Do you need a larger quantity of products or a bespoke quote?
