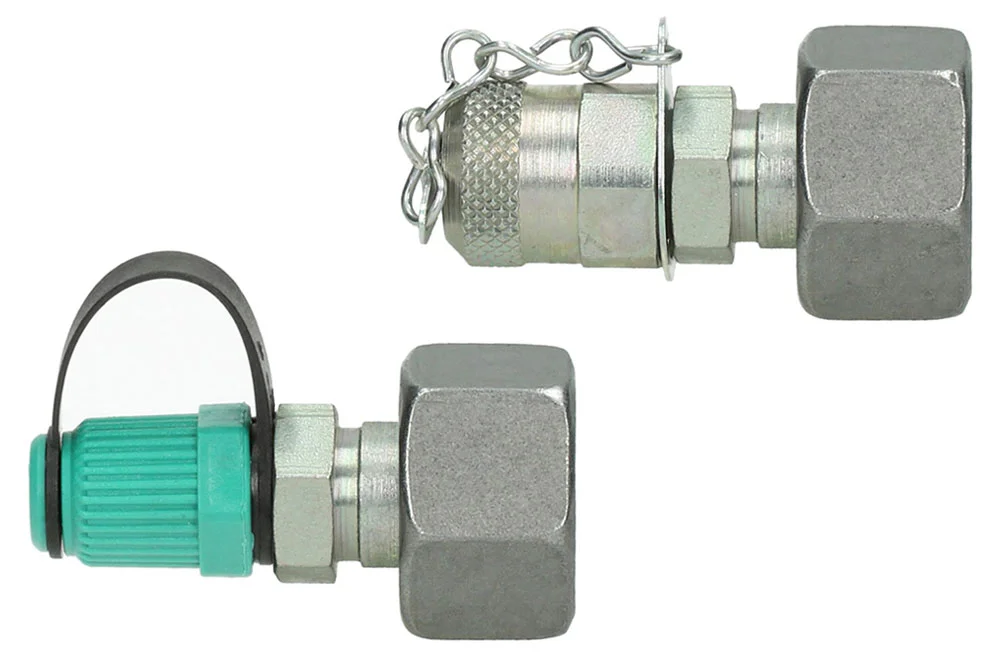

M16x2 Measurement Port with Metal/Plastic Cap and DIN 2353 24° Cone Connector
The measurement coupling, manufactured in compliance with ISO 15171-2, is a reliable solution for precise pressure diagnostics in hydraulic systems, while also proving highly versatile in applications such as lubrication circuits, venting, oil sampling, and micro-hydraulics. Designed for use with hydraulic and mineral oils, it is made of robust carbon steel with a durable zinc-nickel coating, ensuring long-lasting protection against corrosion even in demanding environments. Equipped with NBR seals, the coupling guarantees secure and leak-free operation across a wide range of conditions. It features a standardized ISO 15171-2 M16x2 measurement thread and a DIN 2353 24° cone connection with o-ring, available in both light (L) and heavy (S) series, with the option of a type A wire nut or type B threaded nut. Depending on the version, it withstands working pressures from 100 bar up to 630 bar, while maintaining reliable performance within an operating temperature range of -30°C to +120°C (or up to +100°C with a plastic cap). Offered with either a metal or plastic protective cap, this coupling combines precision, durability, and flexibility, making it an essential component for efficient and safe hydraulic system monitoring.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
The measurement coupling, manufactured in compliance with ISO 15171-2, is a reliable solution for precise pressure diagnostics in hydraulic systems, while also proving highly versatile in applications such as lubrication circuits, venting, oil sampling, and micro-hydraulics. Designed for use with hydraulic and mineral oils, it is made of robust carbon steel with a durable zinc-nickel coating, ensuring long-lasting protection against corrosion even in demanding environments. Equipped with NBR seals, the coupling guarantees secure and leak-free operation across a wide range of conditions. It features a standardized ISO 15171-2 M16x2 measurement thread and a DIN 2353 24° cone connection with o-ring, available in both light (L) and heavy (S) series, with the option of a type A wire nut or type B threaded nut. Depending on the version, it withstands working pressures from 100 bar up to 630 bar, while maintaining reliable performance within an operating temperature range of -30°C to +120°C (or up to +100°C with a plastic cap). Offered with either a metal or plastic protective cap, this coupling combines precision, durability, and flexibility, making it an essential component for efficient and safe hydraulic system monitoring.
Additional information
| Material | CS – steel (cast iron) |
|---|
